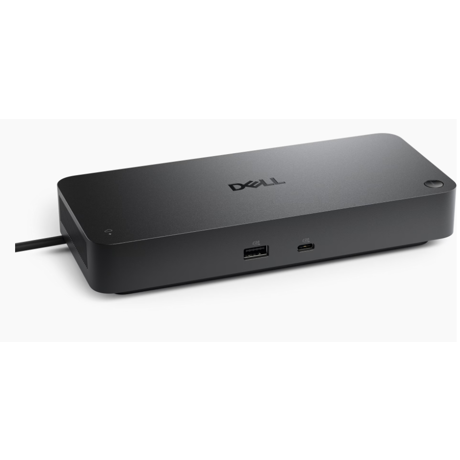

DELL PRO THUNDERBOLT 4SMART DOCK SD25TB4 Connectivity Technology: Wired

DELL PRO THUNDERBOLT 4SMART DOCK SD25TB4 Connectivity Technology: Wired, Number of Displays Supported: 4, Host PC Management: Intel AMT over Thunderbolt with select Intel vPro PCs, MAC address pass-through, PXE Boot Dock Power Button Sync, Wake-On-LAN, WLAN to LAN switch, Kernel Direct Memory Access (DMA) protection, Dock Management Features: Remote firmware updates without a PC, Host-based firmware updates, Firmware update on disconnect, Port Disablement independent of PC, Device Supported: Notebook, Video Resolution: DP1.4 / DP2.1 with Display Stream Compression Up to:, 4 x 4K (3840x2160) 60Hz, 3 x 4K (3840x2160) 60Hz, 2 x 6K (6144 x 3456) 60Hz, 1 x 8K (7680 x 4320) 60Hz, DP1.4 without Display Stream Compression Up to: 4 x QHD (2560x1440) 60Hz, 3 x WQHD (3440 x 1440) 60Hz, 2 x 4K (3840x2160) 60Hz, 1 x 5K WUHD (5120 x 2160) 60Hz, Ethernet Technology: RJ45 Ethernet port, 2.5GbE, Interfaces: Video interfaces: 2 x DP1.4, 1 x HDMI 2.1, 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4, 2 x Thunderbolt 4, USB Ports (Power): 4 x USB-A 3.2 Gen 2 (4.5W each), 1 x USB-C 3.2 Gen 2 (15W), 1 x USB-C Multi-function DisplayPort (7.5W), 2 x Thunderbolt 4 (15W each), All deliver power with or without PC, USB Power Delivery: 130W (Dell systems), 96W (non-Dell systems), USB Ports (Data Only): 4 x USB-A 3.2 Gen 2 (10 Gbps): 1 x USB- C 3.2 Gen 2 (10 Gbps), Operating System Supported: Windows 10, Windows 11, Ubuntu, Red Hat Enterprise Linux, ChromeOS, macOS, Maximum Power Supply Wattage: 180W, Kensington Security Slot: Yes, Limited Warranty: 3 Year

RJ-45

Da

Card reader integrated

No

HDMI ports quantity

1

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

130 W

HD type

8K Ultra HD

LED indicators

Yes

DisplayPort version

1.4

Windows operating systems supported

Windows 10, Windows 11

Ethernet LAN

Yes

Wake-on-LAN ready

Yes

Ethernet LAN data rates

2500 Mbit/s

Storage relative humidity (H-H)

5 - 90%

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

10 - 80%

Quick start guide

Yes

Cable lock slot type

Kensington

Cable lock slot

Yes

Maximum digital resolution

7680 x 4320 pixels

Number of displays supported

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

HDMI version

2.1

Thunderbolt 4 ports quantity

2

USB Type-C DisplayPort Alternate Mode

Yes

PowerShare

Yes

HDMI

Da

Connectivity technology

Wired

DC-in jack

Yes

Number of USB ports with PowerShare support

4

DisplayPorts quantity

2

Host interface

Thunderbolt 4

Microphone in

No

Headphone outputs

0

Power connector

USB Type-C

Power source type

DC

Power Supply

180 W

Other operating systems supported

ChromeOS

Linux operating systems supported

Yes

Mac operating systems supported

Yes

Interfata:

Thunderbolt

Jack 3.5mm

Nu

DisplayPort

Nu

Weight

579 g

Depth

352 mm

Width

90 mm

Height

20.5 mm
