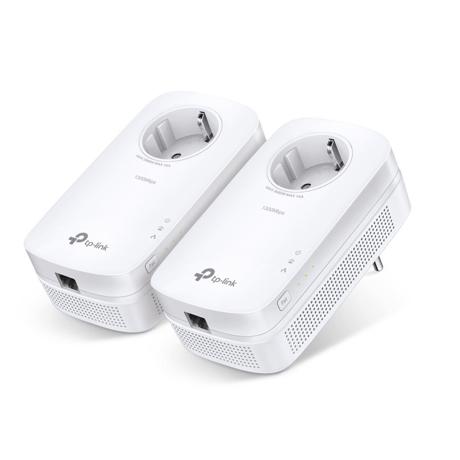

TP-Link AV1200 Gigabit Passthrough Powerline Starter Kit, TL-PA8010PKIT, HomePlug AV2, HomePlug AV, IEEE1901, IEEE802.3, IEEE802.3u,IEEE802.3ab, 1*Gigabit Ethernet Port, Power Socket, Pair Button, PWR,PLC, ETH

TP-Link AV1200 Gigabit Passthrough Powerline Starter Kit, TL-PA8010PKIT, HomePlug AV2, HomePlug AV, IEEE1901, IEEE802.3, IEEE802.3u,IEEE802.3ab, 1*Gigabit Ethernet Port, Power Socket, Pair Button, PWR,PLC, ETH

Product colour

White

Certification

CE

LED indicators

LAN, PLC, Power

Harmonized System (HS) code

85171800

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 90%

Quick installation guide

Yes

Cables included

LAN (RJ-45)

Quantity per pack

2 pc(s)

Package depth

190 mm

Package height

100 mm

Package width

230 mm

Package weight

700 g

Plug and Play

Yes

Security algorithms

128-bit AES

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet LAN interface type

Gigabit Ethernet

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Maximum data transfer rate

1300 Mbit/s

PowerLine standard

HomePlug AV2

Maximum operating distance

300 m

Built-in power socket

Yes

Power plug

Type E / F

Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T

Modulation

OFDM

Power consumption (typical)

6 W

AC input frequency

50 Hz

Power consumption (standby)

0.5 W

AC input voltage

220 V

Windows operating systems supported

Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows XP

Mac operating systems supported

MacOS

Mac compatibility

Yes

Linux operating systems supported

Yes

Width

42 mm

Height

13.1 mm

Depth

72 mm
