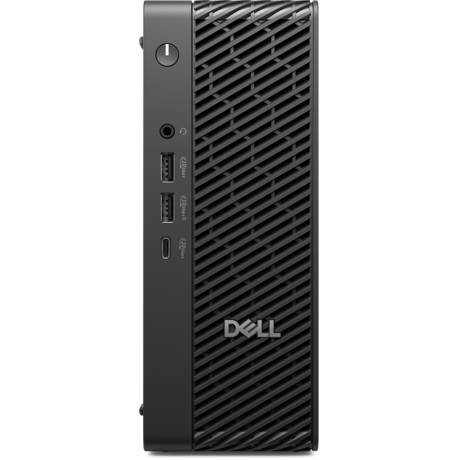

DL FCM2250 U7-265U 16 1 A1000 W11P

DL FCM2250 U7-265U 16 1 A1000 W11P

Total carbon emissions, standard deviation (kg of CO2e)

PAIA version

GaBi version 1, 2024

Total carbon footprint (kg of CO2e)

183

Carbon emissions, manufacturing (kg of CO2e)

63.318

Carbon emissions, logistics (kg of CO2e)

3.66

Carbon emissions, energy usage (kg of CO2e)

114.741

Carbon emissions, end-of-life (kg of CO2e)

1.28

Total carbon emissions, w/o use phase (kg of CO2e)

68.259

Processor model

265

Processor family

Intel Core Ultra 7

Operating system installed

Windows 11 Pro

Cable lock slot

Yes

Intel® vPro™ Platform Eligibility

Yes

Cable lock slot type

Kensington

Chassis type

Micro PC

Placement supported

Horizontal/Vertical

Product type

Mini PC

Display included

No

PCI Express x8 (Gen 4.x) slots

2

Power Supply

280 W

Memory slots

2x SO-DIMM

Weight

2.54 kg

Audio Chip

Realtek ALC3204

Discrete graphics card memory

8 GB

Number of discrete graphics cards

1

On-board graphics card family

Intel Graphics

Discrete graphics card model

NVIDIA RTX A1000

Discrete graphics card

Yes

Discrete GPU manufacturer

NVIDIA

Discrete graphics memory type

GDDR6

On-board graphics card

Yes

On-board graphics card model

Intel Graphics

On-board GPU manufacturer

Intel

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Total storage capacity

1 TB

Memory data transfer rate

5600 MT/s

Memory layout (slots x size)

1 x 16 GB

LAN controller

Intel® I219-LM

Bluetooth

Yes

Cabling technology

10/100/1000Base-T(X)

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN controller model

Intel Wi-Fi 7 BE200

Wi-FI

Yes

WLAN controller manufacturer

Intel

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, ONNX RT, OpenVINO, Windows ML

Storage relative humidity (H-H)

0 - 95%

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating shock

110 G

Non-operating shock

160 G

Operating vibration

0.66 G

Non-operating vibration

1.3 G

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 90%

Cables included

AC

Audio system

High Definition Audio

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

DisplayPort version

1.4a

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Combo headphone/mic port

Yes

Ethernet LAN (RJ-45) ports

1

DisplayPorts quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

Power supply input voltage

100 - 240 V

Power supply input frequency

50/60 Hz

Low Power Efficient-core Max Turbo Frequency

2.4 GHz

Efficient-core base frequency

1.7 GHz

Processor generation

Intel Core Ultra (Series 2)

Number of processors installed

1

Efficient-core Max Turbo Frequency

4.2 GHz

Processor manufacturer

Intel

Processor cores

12

Processor threads

14

Performance cores

2

Efficient cores

8

Low Power Efficient-cores

2

Low Power Efficient-core Base Frequency

700 MHz

Processor cache

12 MB

Processor base power

15 W

Maximum turbo power

57 W

Performance-core base frequency

2.1 GHz

Processor boost frequency

5.3 GHz

Performance-core Max Turbo Frequency

5.3 GHz

Operating system architecture

64-bit

Trial software

McAfee Business Protection 1-year,Microsoft Office Trial

Storage media

SSD

Optical drive type

No

Number of SSDs installed

1

SSD interface

PCI Express 4.0

SSD form factor

M.2

NVMe

Yes

M.2 SSD size

2280 (22 x 80 mm)

SSD capacity

1 TB

Total SSDs capacity

1 TB

SSD memory type

TLC

Number of storage drives installed

1

Sustainability certificates

ENERGY STAR

Depth

178 mm

Width

79.3 mm

Height

2.06 mm
