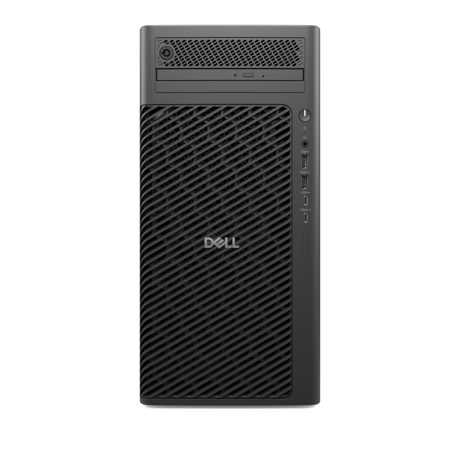

DL FCT2250 U9-285 32 1 W11P

DL FCT2250 U9-285 32 1 W11P

Total carbon emissions, standard deviation (kg of CO2e)

Processor family

Intel Core Ultra 9

Processor model

285

Operating system installed

Windows 11 Pro

Cable lock slot

Yes

Intel® vPro™ Platform Eligibility

Yes

Cable lock slot type

Kensington

Chassis type

Tower

Placement supported

Vertical

Product type

PC

Volume

32 L

Product colour

Black

Display included

No

PCI Express x4 (Gen 3.x) slots

2

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 4.x) slots

1

Memory slots

4x DIMM

Weight

9.7 kg

Power Supply

1500 W

Audio Chip

Realtek ALC3204

On-board graphics card family

Intel Graphics

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card model

Intel Graphics

On-board GPU manufacturer

Intel

Internal memory type

DDR5-SDRAM

Memory channels

Single-channel

Memory data transfer rate

5600 MT/s

Total storage capacity

1 TB

Non-ECC

Yes

Memory layout (slots x size)

2 x 16 GB

Maximum internal memory

128 GB

LAN controller

Intel® I219-LM

Cabling technology

10/100/1000Base-T(X)

Wi-FI

No

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

NPU performance up to

13 TOPs

GPU performance up to

8 TOPs

Total processor performance up to

36 TOPs

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating shock

110 G

Non-operating shock

160 G

Operating vibration

0.66 G

Non-operating vibration

1.3 G

Cables included

AC

Audio system

High Definition Audio

Motherboard chipset

Intel W880

Market positioning

Business

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Intel® Thunderbolt 4

Yes

Combo headphone/mic port

Yes

Thunderbolt 4 ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

DisplayPort version

1.4a

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 2.0 ports quantity

2

Ethernet LAN (RJ-45) ports

1

DC-in jack

Yes

Number of rear USB ports

6

Number of front USB ports

4

DisplayPorts quantity

2

Thunderbolt 3 ports quantity

0

Number of SATA III connectors

4

Power supply input frequency

47/63 Hz

80 PLUS certification

80 PLUS Platinum

Power supply input voltage

90 - 264 V

Processor base power

65 W

Performance-core base frequency

2.5 GHz

Processor threads

24

Performance-core Max Turbo Frequency

5.4 GHz

Performance cores

8

Processor cores

24

Processor manufacturer

Intel

Number of processors installed

1

Maximum turbo power

182 W

Processor cache

76 MB

Processor generation

Intel Core Ultra (Series 2)

Efficient cores

16

Efficient-core base frequency

1.9 GHz

Efficient-core Max Turbo Frequency

4.6 GHz

Processor boost frequency

5.6 GHz

Operating system architecture

64-bit

Storage media

SSD

Optical drive type

No

Number of SSDs installed

1

SSD form factor

M.2

NVMe

Yes

M.2 SSD size

2280 (22 x 80 mm)

SSD capacity

1 TB

SSD interface

PCI Express

Total SSDs capacity

1 TB

SSD memory type

TLC

Number of storage drives installed

1

Sustainability certificates

ENERGY STAR, EPEAT Climate +

Doesn't contain

PVC/BFR

Width

187.7 mm

Depth

438 mm

Height

387 mm

VGA

No

WS-CPU

Intel-Core-i

WS-Format

Tower
