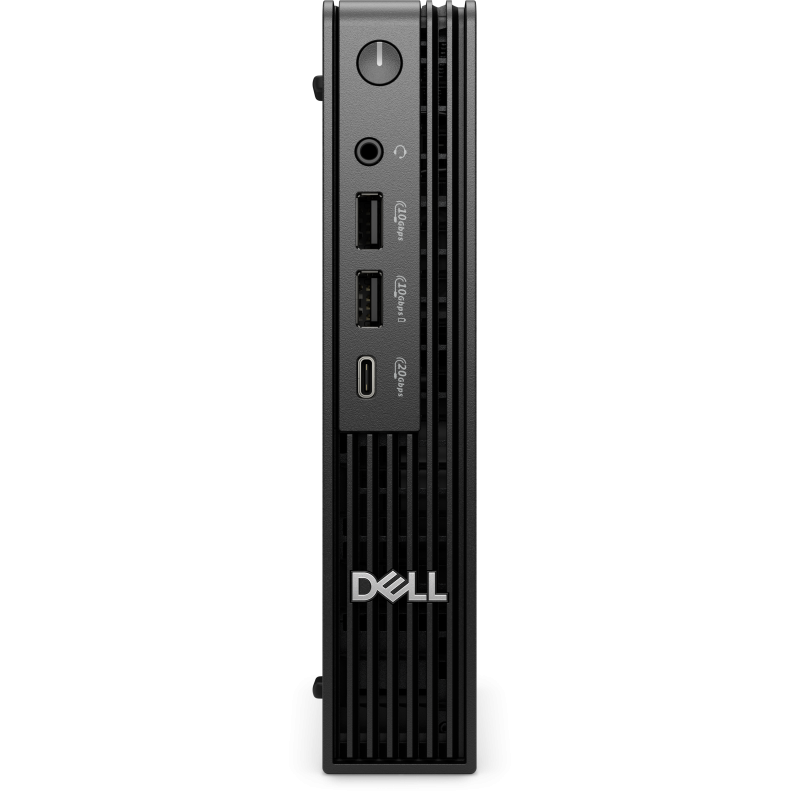

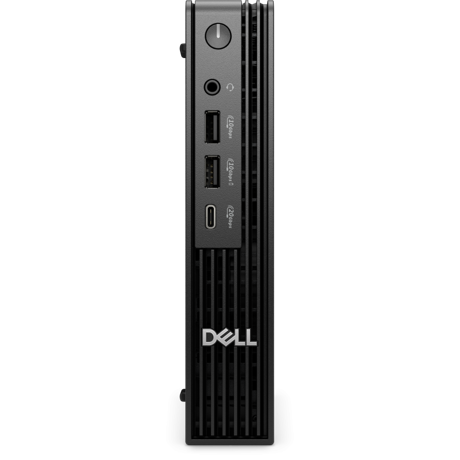

DL QBM1250 U5-235 16 512 W11P

DL QBM1250 U5-235 16 512 W11P

PAIA version

GaBi version 1, 2024

Total carbon footprint (kg of CO2e)

80.7

Carbon emissions, manufacturing (kg of CO2e)

45.0306

Carbon emissions, logistics (kg of CO2e)

2.2596

Carbon emissions, energy usage (kg of CO2e)

32.8449

Carbon emissions, end-of-life (kg of CO2e)

0.56

Processor model

235

Operating system installed

Windows 11 Pro

Processor family

Intel Core Ultra 5

Bluetooth

Yes

Product colour

Black

Chassis type

Micro PC

Product type

Mini PC

Cable lock slot

Yes

Cable lock slot type

Kensington

Placement supported

Horizontal/Vertical

Display included

No

Power Supply

180 W

Audio Chip

Realtek ALC3204

Weight

1.43 kg

Memory slots

2x SO-DIMM

On-board graphics card family

Intel Graphics

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card model

Intel Graphics

On-board GPU manufacturer

Intel

Memory channels

Single-channel

Memory data transfer rate

5600 MT/s

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Total storage capacity

512 GB

Memory layout (slots x size)

1 x 16 GB

Non-ECC

Yes

LAN controller

Intel WGI219LM

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

Cabling technology

10/100/1000Base-T(X)

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Antenna type

2x2

WLAN controller model

Intel Wi-Fi 6E AX211

WLAN controller manufacturer

Intel

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

Total processor performance up to

27 TOPs

GPU performance up to

6 TOPs

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

NPU performance up to

13 TOPs

Storage temperature (T-T)

-40 - 65 °C

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

20 - 80%

Operating shock

40 G

Storage relative humidity (H-H)

5 - 95%

Operating vibration

0.26 G

Non-operating vibration

1.37 G

Non-operating shock

105 G

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Market positioning

Business

Audio system

High Definition Audio

Motherboard chipset

Intel Q870

Number of front USB ports

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

Thunderbolt 3 ports quantity

0

HDMI ports quantity

0

Number of front audio ports

1

Ethernet LAN (RJ-45) ports

1

Number of rear USB ports

5

DC-in jack

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Combo headphone/mic port

Yes

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

DisplayPorts quantity

3

DisplayPort version

1.4a

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Power supply input voltage

100 - 240 V

Power supply input frequency

50 / 60 Hz

Efficient-core Max Turbo Frequency

4.4 GHz

Processor generation

Intel Core Ultra (Series 2)

Efficient-core base frequency

2.9 GHz

Maximum turbo power

121 W

Performance-core base frequency

3.4 GHz

Number of processors installed

1

Processor base power

65 W

Processor cores

14

Processor boost frequency

5 GHz

Performance cores

6

Performance-core Max Turbo Frequency

5 GHz

Processor cache

24 MB

Processor manufacturer

Intel

Processor threads

14

Efficient cores

8

Processor cache type

Smart Cache

Operating system architecture

64-bit

SSD form factor

M.2

NVMe

Yes

SSD capacity

512 GB

Storage media

SSD

Optical drive type

No

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD interface

PCI Express 4.0

SSD memory type

TLC

Number of storage drives installed

1

Sustainability certificates

ENERGY STAR, EPEAT Climate +, EPEAT Gold

Doesn't contain

PVC/BFR

Depth

178 mm

Width

36 mm

Height

182 mm

DT-CPU

Intel

DT-Format

MFF

Model-procesor

Intel core Ultra 5
