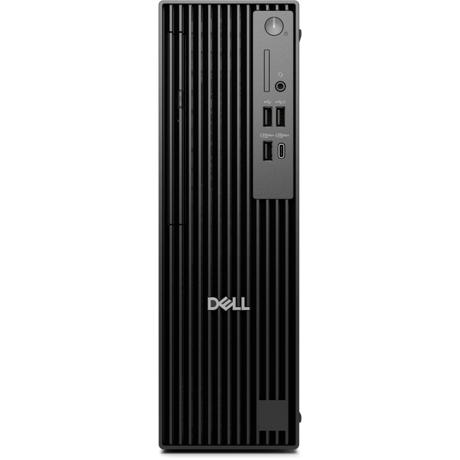

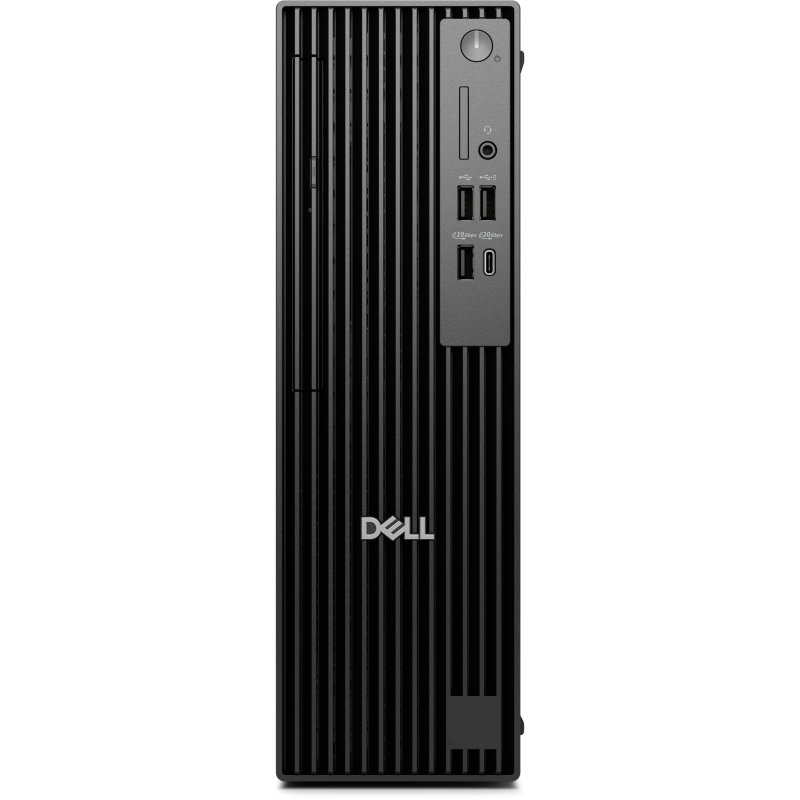

DL QBS1250 U5-235 16 512 W11P

DL QBS1250 U5-235 16 512 W11P

Operating system installed

Windows 11 Pro

Processor family

Intel Core Ultra 5

Processor model

235

Chassis type

Slim PC

Placement supported

Horizontal/Vertical

Product type

PC

Cable lock slot type

Kensington

Cable lock slot

Yes

Product colour

Black

Display included

No

PCI Express x1 (Gen 3.x) slots

1

PCI Express x4 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Power Supply

260 W

Memory slots

4x DIMM

Audio Chip

Realtek ALC3204

On-board graphics card family

Intel Graphics

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card model

Intel Graphics

On-board GPU manufacturer

Intel

Memory data transfer rate

5600 MT/s

Internal memory type

DDR5-SDRAM

Total storage capacity

512 GB

Memory layout (slots x size)

1 x 16 GB

Maximum internal memory

128 GB

LAN controller

Intel® I219-LM

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

Wi-FI

Yes

Cabling technology

10/100/1000Base-T(X)

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Antenna type

2x2

WLAN controller model

Intel Wi-Fi 6E AX211

WLAN controller manufacturer

Intel

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Bluetooth

Yes

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

Total processor performance up to

27 TOPs

GPU performance up to

6 TOPs

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

NPU performance up to

13 TOPs

Storage temperature (T-T)

-40 - 65 °C

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating shock

110 G

Non-operating shock

160 G

Operating vibration

0.66 G

Non-operating vibration

1.3 G

Cables included

AC

Audio system

High Definition Audio

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Market positioning

Business

Motherboard chipset

Intel Q870

Number of rear USB ports

6

Number of front USB ports

4

Number of SATA III connectors

2

Thunderbolt 3 ports quantity

0

HDMI ports quantity

0

Ethernet LAN (RJ-45) ports

1

Combo headphone/mic port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

DisplayPorts quantity

3

USB 2.0 ports quantity

4

DisplayPort version

1.4a

USB 3.2 Gen 2x2 Type-C ports quantity

1

Power supply input voltage

90 - 264 V

Power supply input frequency

47/63 Hz

Performance-core base frequency

3.4 GHz

Processor generation

Intel Core Ultra (Series 2)

Efficient-core Max Turbo Frequency

4.4 GHz

Efficient-core base frequency

2.9 GHz

Maximum turbo power

121 W

Processor base power

65 W

Number of processors installed

1

Processor cores

14

Processor boost frequency

5 GHz

Performance cores

6

Performance-core Max Turbo Frequency

5 GHz

Processor cache

24 MB

Processor manufacturer

Intel

Processor threads

14

Efficient cores

8

Processor cache type

Smart Cache

Operating system architecture

64-bit

Trial software

McAfee Business Protection 1-year,Microsoft Office Trial

SSD form factor

M.2

NVMe

Yes

SSD capacity

512 GB

Storage media

SSD

Optical drive type

No

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD interface

PCI Express 4.0

SSD memory type

TLC

Sustainability certificates

ENERGY STAR, EPEAT Climate +, EPEAT Gold

Doesn't contain

PVC/BFR

Width

95 mm

Depth

293 mm

Height

303.5 mm
