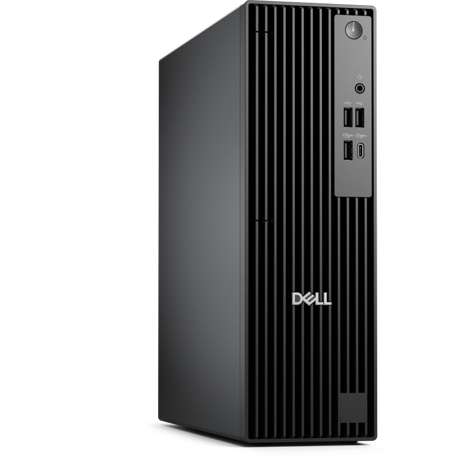

DL QCS1250 U7-265 16 512 W11P

DL QCS1250 U7-265 16 512 W11P

Processor family

Intel Core Ultra 7

Operating system installed

Windows 11 Pro

Processor model

265

Chassis type

Slim PC

Product type

PC

Placement supported

Horizontal/Vertical

Cable lock slot

Yes

Intel® vPro™ Platform Eligibility

Yes

Cable lock slot type

Kensington

Display included

No

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

1

Audio Chip

Realtek ALC3204

Power Supply

180 W

Memory slots

2x DIMM

Weight

5.89 kg

On-board graphics card family

Intel Graphics

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card model

Intel Graphics

On-board GPU manufacturer

Intel

Memory channels

Single-channel

Memory data transfer rate

5600 MT/s

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Total storage capacity

512 GB

Memory layout (slots x size)

1 x 16 GB

Non-ECC

Yes

LAN controller

Intel® I219-LM

Cabling technology

10/100/1000Base-T(X)

Wi-FI

No

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

NPU performance up to

13 TOPs

GPU performance up to

8 TOPs

Total processor performance up to

33 TOPs

Storage temperature (T-T)

-40 - 65 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

0 - 95%

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating shock

110 G

Non-operating shock

160 G

Operating vibration

0.66 G

Non-operating vibration

1.3 G

Cables included

AC

Audio system

High Definition Audio

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Market positioning

Business

Combo headphone/mic port

Yes

HDMI ports quantity

1

HDMI version

2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

4

DisplayPort version

1.4a

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DC-in jack

Yes

Number of SATA III connectors

2

Number of front USB ports

4

Number of rear USB ports

4

Thunderbolt 3 ports quantity

0

DisplayPorts quantity

1

Power supply input frequency

47/63 Hz

Power supply input voltage

90 - 264 V

Processor threads

20

Number of processors installed

1

Processor base power

65 W

Efficient-core base frequency

1.8 GHz

Performance cores

8

Processor cores

20

Efficient cores

12

Processor boost frequency

5.3 GHz

Processor cache

30 MB

Performance-core Max Turbo Frequency

5.2 GHz

Processor manufacturer

Intel

Processor cache type

Smart Cache

Efficient-core Max Turbo Frequency

4.6 GHz

Performance-core base frequency

2.4 GHz

Processor generation

Intel Core Ultra (Series 2)

Maximum turbo power

182 W

Operating system architecture

64-bit

Trial software

Microsoft Office Trial

SSD form factor

M.2

NVMe

Yes

SSD capacity

512 GB

Storage media

SSD

Optical drive type

No

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD memory type

TLC

SSD interface

PCI Express

Number of storage drives installed

1

Doesn't contain

PVC/BFR

Sustainability certificates

ENERGY STAR, EPEAT Climate +, EPEAT Gold

Height

303.5 mm

Depth

293 mm

Width

95 mm
