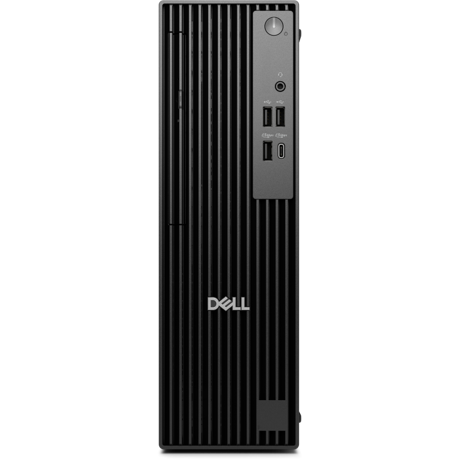

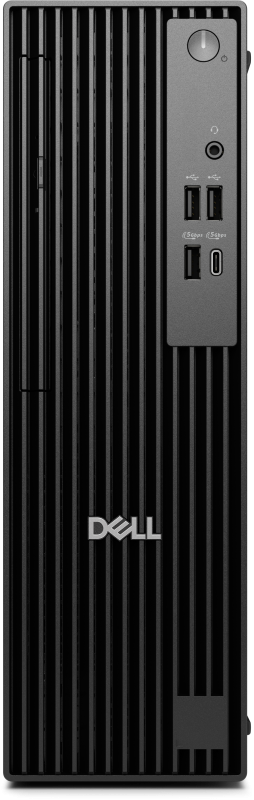

DL QCS1255 R7-8700G 16 512 W11P

DL QCS1255 R7-8700G 16 512 W11P

Operating system installed

Windows 11 Pro

Processor family

AMD Ryzen™ 7 PRO

Processor model

8700G

Chassis type

Slim PC

Product colour

Black

Product type

PC

Placement supported

Horizontal/Vertical

Cable lock slot

Yes

Cable lock slot type

Kensington

Display included

No

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Audio Chip

Realtek ALC3204

Memory slots

2x DIMM

Weight

5.68 kg

On-board GPU manufacturer

AMD

On-board graphics card model

AMD Radeon 780M

On-board graphics card family

AMD Radeon

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Total storage capacity

512 GB

Memory data transfer rate

4800 MT/s

Memory layout (slots x size)

1 x 16 GB

Non-ECC

Yes

Bluetooth

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)

MU-MIMO

Yes

WLAN controller model

MediaTek MT7920

Antenna design

Internal

WLAN controller manufacturer

MediaTek

Cabling technology

10/100/1000Base-T(X)

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Antenna type

2x2

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Neural processor unit (NPU)

AMD Ryzen AI

NPU performance up to

16 TOPs

Operating relative humidity (H-H)

10 - 90%

Storage temperature (T-T)

-40 - 65 °C

Operating temperature (T-T)

10 - 35 °C

Storage relative humidity (H-H)

0 - 95%

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating shock

110 G

Non-operating shock

160 G

Operating vibration

0.66 G

Non-operating vibration

1.3 G

Cables included

AC

Audio system

High Definition Audio

Motherboard chipset

AMD PRO 665

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Number of SATA III connectors

2

USB 2.0 ports quantity

4

DisplayPort version

1.4a

Thunderbolt 3 ports quantity

0

DisplayPorts quantity

1

Combo headphone/mic port

Yes

HDMI ports quantity

1

HDMI version

2.1

Ethernet LAN (RJ-45) ports

1

Power supply input voltage

90 - 264 V

Power supply input frequency

47/63 Hz

Processor generation

AMD Ryzen 8000 Series

Processor cache type

L2 & L3

Processor base power

35 W

Number of processors installed

1

Processor threads

16

Processor boost frequency

5.1 GHz

Processor manufacturer

AMD

Processor cores

8

Processor cache

24 MB

Processor frequency

4.2 GHz

Trial software

McAfee® Business Protection 1-year,Activate Your Microsoft 365 For A 30 Day Trial

Operating system architecture

64-bit

Storage media

SSD

Optical drive type

No

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD form factor

M.2

NVMe

Yes

SSD capacity

512 GB

SSD interface

PCI Express

Number of storage drives installed

1

Doesn't contain

PVC/BFR

Height

303.5 mm

Depth

293 mm

Width

95 mm
