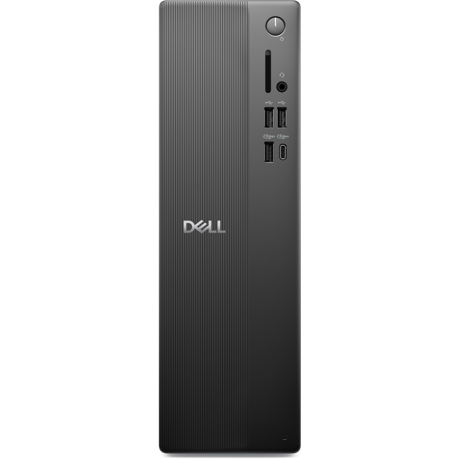

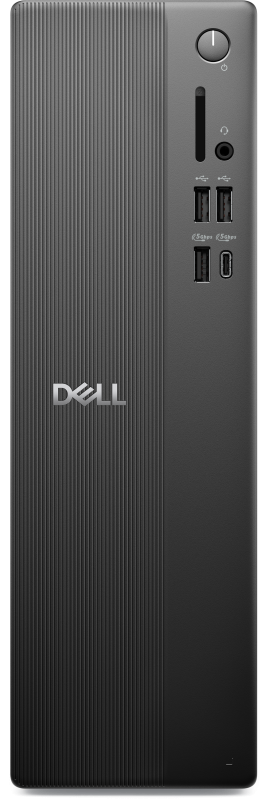

Desktop Dell Slim ECS1250, 180W Chassis, Energy Star Label, Intel(R) Core(TM) Ultra 5-225 processor (10 Cores, 20MB Total Cache, 3.3GHz), Intel(R) UHD Graphics, 16GB, 1x16GB, DDR5, 5600MT/s, 512GB M.2 PCIe NVMe Solid State Drive, No Optical Drive, 3.0 SD Card Reader, MediaTek Wi-Fi 6 MT7920, 2x2

Desktop Dell Slim ECS1250, 180W Chassis, Energy Star Label, Intel(R) Core(TM) Ultra 5-225 processor (10 Cores, 20MB Total Cache, 3.3GHz), Intel(R) UHD Graphics, 16GB, 1x16GB, DDR5, 5600MT/s, 512GB M.2 PCIe NVMe Solid State Drive, No Optical Drive, 3.0 SD Card Reader, MediaTek Wi-Fi 6 MT7920, 2x2, 802.11ax, MU-MIMO, Bluetooth wireless card, MT7920 Wireless Driver EDB, Dell Optical Mouse - MS116 (Black) , Dell Wired Keyboard - KB216 - US International (QWERTY) - Black, External ports: Network port: 1 x RJ45 ethernet port (1 Gbps), USB ports: Front: 2 x USB 2.0 (480 Mbps) ports, 1 x USB 3.2 Gen 1 (5 Gbps) port, 1 x USB 3.2 Gen 1 (5 Gbps) Type-C port, Rear: 2 x USB 2.0 (480 Mbps) ports with Smart Power On, 2 x USB 3.2 Gen 1 (5 Gbps) ports, Audio port: 1 x global headset (headphone and microphone combo) jack, Video port(s) For computers shipped with an Intel Core Ultra 5 225 or Intel Core Ultra 7 265 processor: 1 x DisplayPort 1.4 (HBR3) port, For computers shipped with an Intel Core i3 14100, Intel Core i5 14400 or Intel Core i7 14700 processor: 1 x DisplayPort 1.4 (HBR2) port, 1 x HDMI 2.1 (TDMS) port, Media-card reader: 1 x SD-card slot (optional), Power-adapter port: 1 x power-cable connector, Peripheral port : 1 x legacy serial port (optional), Security-cable slot: Kensington security-cable slot, 1 x padlock ring slot, Internal slots: M.2: 1 x M.2 2230 slot for WiFi and Bluetooth combo card, 1 x M.2 2230 or 2280 slot for solid state drive, SATA: 1 x SATA 3.0 slot for 3.5-inch hard drive, PCIe: 1 x half-height PCIe x16 slot, 2 x half-height PCIe x1 slots, Weight: 3.49 kg (7.69 lb), Windows 11 Pro, 3y ProSupport and Next Business Day Onsite Service, McAfee Business Protection 1-year, McAfee+ Premium 30-day trial

PAIA version

GaBi version 1, 2024

Total carbon footprint (kg of CO2e)

148

Carbon emissions, manufacturing (kg of CO2e)

73.26

Carbon emissions, logistics (kg of CO2e)

9.176

Carbon emissions, energy usage (kg of CO2e)

62.752

Carbon emissions, end-of-life (kg of CO2e)

2.96

Total carbon emissions, w/o use phase (kg of CO2e)

85.248

Processor model

225

Operating system installed

Windows 11 Pro

Processor family

Intel Core Ultra 5

Cable lock slot type

Kensington

Cable lock slot

Yes

Product type

PC

Chassis type

Slim PC

Product colour

Black

Display included

No

Power Supply

180 W

Audio Chip

Realtek ALC3204

Weight

4.75 kg

Memory slots

2x DIMM

On-board graphics card family

Intel Graphics

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card model

Intel Graphics

On-board GPU manufacturer

Intel

Memory channels

Single-channel

Memory data transfer rate

5600 MT/s

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Total storage capacity

512 GB

Memory layout (slots x size)

1 x 16 GB

Bluetooth

Yes

Wi-Fi standards

802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n)

WLAN controller model

MediaTek MT7920

MU-MIMO

Yes

Cabling technology

10/100/1000Base-T(X)

WLAN controller manufacturer

MediaTek

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Antenna type

2x2

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-FI

Yes

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

NPU performance up to

13 TOPs

Total processor performance up to

23 TOPs

GPU performance up to

4 TOPs

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-40 - 65 °C

Operating shock

40 G

Storage relative humidity (H-H)

5 - 95%

Operating vibration

0.26 G

Non-operating vibration

1.37 G

Non-operating shock

105 G

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Motherboard chipset

Intel SoC

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Audio system

High Definition Audio

Ethernet LAN (RJ-45) ports

1

DisplayPorts quantity

1

HDMI ports quantity

1

HDMI version

2.1

Combo headphone/mic port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPort version

1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

USB 2.0 ports quantity

4

Thunderbolt 3 ports quantity

0

Power supply input frequency

47/63 Hz

Power supply input voltage

90 - 264 V

80 PLUS certification

80 PLUS Bronze

Efficient-core base frequency

2.7 GHz

Efficient-core Max Turbo Frequency

4.4 GHz

Processor cache

20 MB

Processor boost frequency

4.9 GHz

Performance-core Max Turbo Frequency

4.9 GHz

Performance cores

6

Processor cores

10

Efficient cores

4

Processor base power

65 W

Processor manufacturer

Intel

Processor cache type

Smart Cache

Performance-core base frequency

3.3 GHz

Processor generation

Intel Core Ultra (Series 2)

Number of processors installed

1

Maximum turbo power

121 W

Processor threads

10

Trial software

McAfee LiveSafe 1Yr,Microsoft Office Trial

Operating system architecture

64-bit

SSD capacity

512 GB

SSD form factor

M.2

NVMe

Yes

Storage media

SSD

Optical drive type

No

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD interface

PCI Express 4.0

Number of storage drives installed

1

Depth

293 mm

Width

95 mm

Height

303.5 mm
