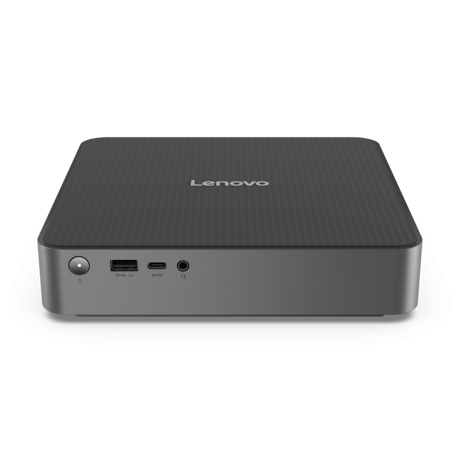

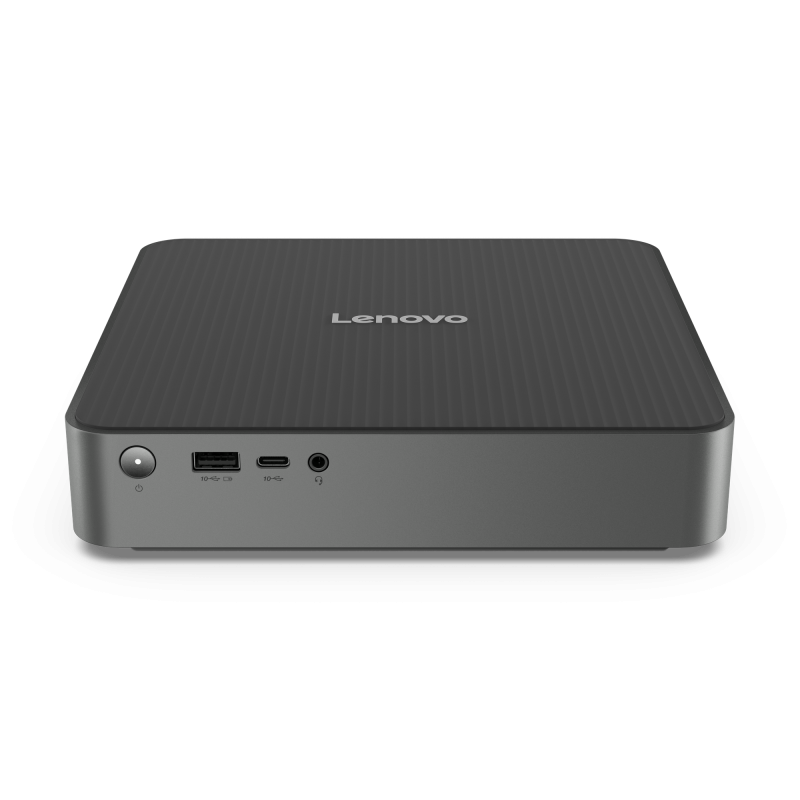

Desktop Lenovo IdeaCentre Mini 01IRH10R , Intel® Core 5 210H, 8C (4P + 4E) / 12T, P-core 2.2 / 4.8GHz, E-core 1.6 / 3.6GHz, 12MB Intel Smart Cache, video Integrated Intel® Graphics, RAM 1x 16GB SODIMM DDR5-5600; Two DDR5 SODIMM slots, dual-channel capable; Up to 32GB DDR5-5600, 512GB SSD M.2 2280

Desktop Lenovo IdeaCentre Mini 01IRH10R , Intel® Core 5 210H, 8C (4P + 4E) / 12T, P-core 2.2 / 4.8GHz, E-core 1.6 / 3.6GHz, 12MB Intel Smart Cache, video Integrated Intel® Graphics, RAM 1x 16GB SODIMM DDR5-5600; Two DDR5 SODIMM slots, dual-channel capable; Up to 32GB DDR5-5600, 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe®, no ODD, no Card Reader, , 2.5GbE (RJ-45), Wi-Fi® 7, 802.11be 2x2, Bluetooth 5.4, Porturi: Rear: 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 1.4; 1x USB-A (Hi-Speed USB / USB 2.0); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI® 2.1 TMDS; 1x DisplayPort™ 1.4b; 1x Ethernet (RJ-45); 1x power connector; Front: 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2); 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On; 1x headphone / microphone combo jack (3.5mm), 150W 92%, Firmware TPM 2.0 integrated in SoC, None, None, No speakers, None, Luna Grey, greutate 1.8 kg, dimensiuni 191 x 195 x 42.7mm, 2-year, Courier or Carry-in, Free DOS, Green Certifications: RoHS compliant

Certification

ENERGY STAR,RoHS

Processor family

Intel Core 5

Processor model

210H

Operating system installed

No

Bluetooth

Yes

Product colour

Grey

Colour name

Luna Grey

Product type

Mini PC

Volume

1 L

Placement supported

Horizontal/Vertical

Chassis type

Mini PC

Display included

No

Power Supply

150 W

Weight

18 kg

Audio Chip

Realtek ALC256

Memory slots

2x SO-DIMM

On-board graphics card family

Intel Graphics

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

On-board graphics card model

Intel Graphics

On-board GPU manufacturer

Intel

Total storage capacity

512 GB

Memory clock speed

5600 MHz

Memory channels

Single-channel

Internal memory type

DDR5-SDRAM

Maximum internal memory

32 GB

Memory layout (slots x size)

1 x 16 GB

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Bluetooth version

5.4

Ethernet LAN data rates

2500 Mbit/s

Password protection

Yes

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Antenna type

2x2

Ethernet LAN

Yes

Operating altitude

0 - 3048 m

Storage relative humidity (H-H)

10 - 90%

Non-operating altitude

0 - 12192 m

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-40 - 60 °C

Keyboard included

No

Mouse included

No

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Motherboard chipset

Intel SoC

Password protection type

HDD

Audio system

High Definition Audio

Ethernet LAN (RJ-45) ports

1

DisplayPort version

1.4b

Intel® Thunderbolt 4

Yes

Combo headphone/mic port

Yes

HDMI ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Thunderbolt 4 ports quantity

1

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

Thunderbolt 3 ports quantity

0

DisplayPorts quantity

1

Power supply input voltage

100 - 240 V

Power supply input frequency

50/60 Hz

Performance-core base frequency

2.2 GHz

Efficient-core base frequency

1.6 GHz

Number of processors installed

1

Maximum turbo power

115 W

Efficient-core Max Turbo Frequency

3.6 GHz

Processor threads

12

Processor base power

45 W

Performance cores

4

Efficient cores

4

Processor cores

8

Processor manufacturer

Intel

Processor boost frequency

4.8 GHz

Processor cache

12 MB

Processor cache type

Smart Cache

Processor generation

Intel Core (Series 2)

Number of storage drives installed

1

SSD form factor

M.2

NVMe

Yes

SSD capacity

512 GB

Card reader integrated

No

Storage media

SSD

Optical drive type

No

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD interface

PCI Express 4.0

Height

427 mm

Width

191 mm

Depth

19.5 mm

DT-CPU

Intel

DT-Format

Mini Tower
