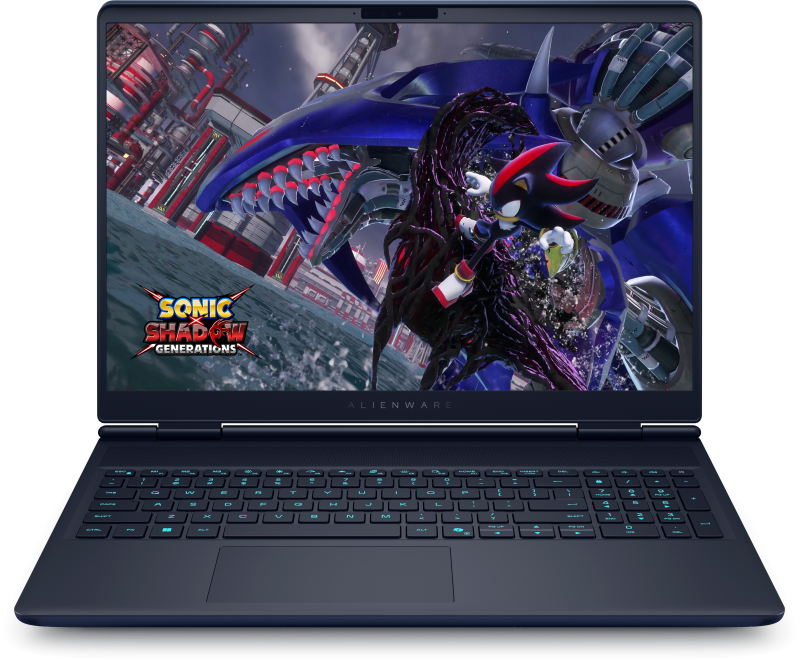

AW 16X WQXGA U9-275HX 32 2 5070 W11P

AW 16X WQXGA U9-275HX 32 2 5070 W11P

Number of built-in speakers

2

Number of microphones

2

Audio Chip

Realtek ALC3204

Speaker power

2.5 W

Built-in microphone

Yes

Audio system

High Definition Audio

Battery capacity

96 Wh

Battery recharge time

3 h

Battery technology

Lithium-Ion (Li-Ion)

Battery voltage

11.7 V

Number of battery cells

6

Battery weight

351 g

Fast charging

Yes

Battery charge indicator

Yes

Brand specific technologies

Express Charge Boost capable

Front camera resolution (numeric)

2.07 MP

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Video capturing speed

30 fps

Infrared (IR) camera

Yes

Front camera

Yes

Bluetooth

Yes

Product colour

Indigo

Product type

Laptop

Form factor

Clamshell

Market positioning

Gaming

Panel type

WVA

Contrast ratio (typical)

1000:1

RGB colour space

DCI-P3

Native aspect ratio

16:10

Colour gamut

100%

Display brightness

500 cd/m²

Anti-glare screen

Yes

Display diagonal

4.06 cm (1.6)

Touchscreen

No

Display resolution

2560 x 1600 pixels

HD type

WQXGA+

Pixel density

189 ppi

Display technology marketing name

ComfortView Plus

Maximum refresh rate

240 Hz

Low Blue Light technology

Yes

Weight

2.66 kg

Memory slots

2x SO-DIMM

On-board graphics card

Yes

On-board graphics card model

Intel Graphics

On-board GPU manufacturer

Intel

On-board graphics card family

Intel Graphics

Discrete graphics card

Yes

Discrete GPU manufacturer

NVIDIA

Discrete graphics card memory

8 GB

NVIDIA G-SYNC

Yes

Discrete graphics card model

NVIDIA GeForce RTX 5070

Discrete graphics memory type

GDDR7

Keyboard backlit colour

RGB

Keyboard backlit

Yes

Numeric keypad

Yes

Pointing device

Touchpad

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Memory form factor

SO-DIMM

Non-ECC

Yes

Memory layout (slots x size)

2 x 16 GB

Memory data transfer rate

5200 MT/s

WLAN controller model

MediaTek MT7925

Wi-Fi band

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

WLAN controller manufacturer

MediaTek

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Antenna type

2x2

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Mobile network connection

No

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

Total processor performance up to

36 TOPs

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

NPU performance up to

13 TOPs

GPU performance up to

8 TOPs

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

-15.2 - 3048 m

Non-operating altitude

-15.2 - 10668 m

Operating vibration

0.66 G

Operating shock

140 G

AC adapter included

Yes

Processor family

Intel Core Ultra 9

Processor model

275HX

Efficient cores

16

Performance cores

8

Processor manufacturer

Intel

Operating system installed

Windows 11 Pro

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

HDMI version

2.1

USB Type-C DisplayPort Alternate Mode

Yes

Intel® Thunderbolt 4

Yes

Combo headphone/mic port

Yes

Thunderbolt 4 ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB Power Delivery (USB PD)

Yes

Ethernet LAN (RJ-45) ports

1

USB Type-C required charging power (max)

100 W

USB Type-C required charging power (min)

90 W

USB Type-C charging port

Yes

DC-in jack

Yes

AC adapter power

280 W

AC adapter output voltage

19.5 V

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

Processor threads

24

Processor boost frequency

5.4 GHz

Performance-core Max Turbo Frequency

5.4 GHz

Processor cores

24

Processor cache

36 MB

Processor base power

55 W

Efficient-core Max Turbo Frequency

4.6 GHz

Efficient-core base frequency

2.1 GHz

Processor generation

Intel Core Ultra (Series 2)

Maximum turbo power

160 W

Performance-core base frequency

2.7 GHz

Trial software

McAfee+ Premium 1Yr,Microsoft Office Trial

Operating system architecture

64-bit

Storage media

SSD

Optical drive type

No

Number of SSDs installed

1

SSD interface

PCI Express 4.0

SSD form factor

M.2

NVMe

Yes

Total storage capacity

2 TB

SSD capacity

2 TB

Total SSDs capacity

2 TB

Depth

265.4 mm

Width

357 mm

Height (front)

1.92 cm

Height (rear)

1.63 cm
