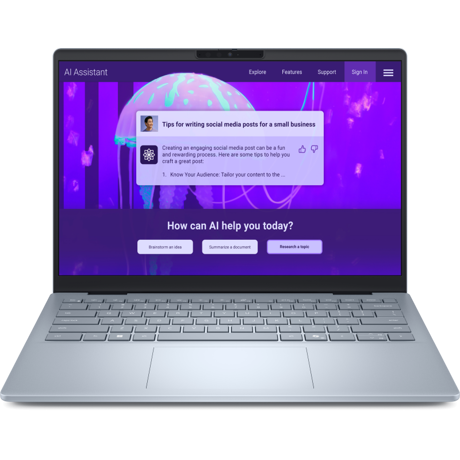

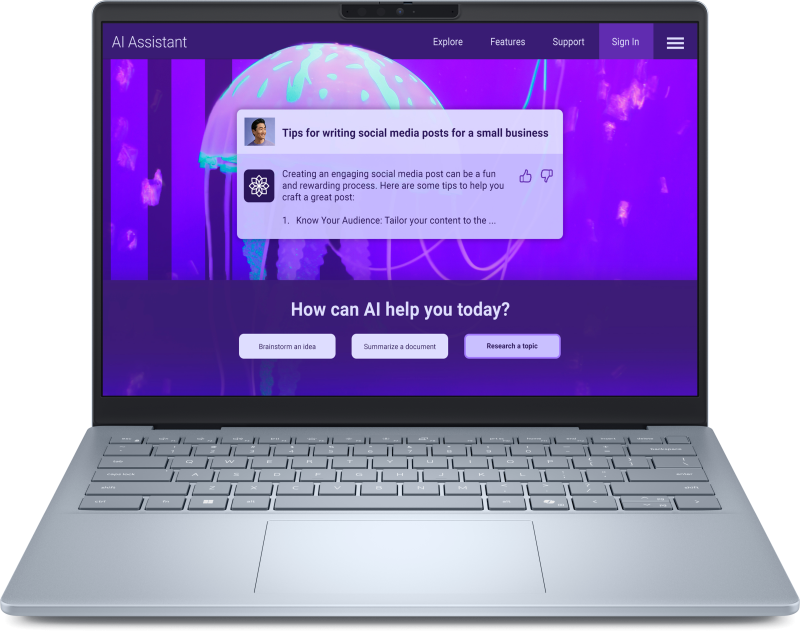

DL DB14250 OLED U9-288V 32 1 ARC W11P DB14250_LNL_203

DL DB14250 OLED U9-288V 32 1 ARC W11P

Number of built-in speakers

2

Speakers manufacturer

Waves

Built-in microphone

Yes

Audio system

MaxxAudio Pro

Speaker power

2.5 W

Battery weight

260 g

Number of battery cells

4

Battery capacity

64 Wh

Battery voltage

15.2 V

Fast charging

Yes

Battery technology

Lithium-Ion (Li-Ion)

Battery recharge time

3 h

Brand specific technologies

Express Charge Boost capable

Front camera resolution (numeric)

2.07 MP

Front camera resolution

1920 x 1080 pixels

Front camera HD type

Full HD

Video capturing speed

30 fps

Privacy camera

Yes

Privacy type

Privacy shutter

Front camera

Yes

Total carbon emissions, standard deviation (kg of CO2e)

Total carbon footprint (kg of CO2e)

138

Carbon emissions, manufacturing (kg of CO2e)

115.23

Carbon emissions, logistics (kg of CO2e)

3.174

Carbon emissions, energy usage (kg of CO2e)

18.354

Carbon emissions, end-of-life (kg of CO2e)

1.38

Total carbon emissions, w/o use phase (kg of CO2e)

119.646

PAIA version

GaBi version 1, 2024

Colour name

Ice Blue

Housing material

Aluminium, Plastic

Product colour

Blue

Product type

Laptop

Form factor

Clamshell

Display resolution

2560 x 1600 pixels

LED backlight

Yes

Touchscreen

No

Anti-glare screen

Yes

Panel type

WVA

Native aspect ratio

16:10

Colour gamut

100%

Display technology marketing name

ComfortView Plus

HD type

2.5K

Display diagonal

35.6 cm (14)

Display response rise/fall

35 ms

Contrast ratio (typical)

1200:1

Maximum refresh rate

90 Hz

RGB colour space

sRGB

Pixel Pitch

0.1178 x 0.1178 mm

Pixel density

216 ppi

Display brightness

300 cd/m²

Weight

1.55 kg

Fingerprint reader

Yes

On-board graphics card

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel Arc Graphics

On-board graphics card model

Intel Arc Graphics 140V

Copilot key

Yes

Pointing device

Touchpad

Numeric keypad

No

Keyboard backlit

Yes

Memory channels

Dual-channel

Memory form factor

On-board

Internal memory type

LPDDR5x-SDRAM

Maximum internal memory

32 GB

Memory data transfer rate

8533 MT/s

WLAN controller model

Intel Wi-Fi 7 BE201

Wi-Fi band

Tri-band (2.4 GHz / 5 GHz / 6 GHz)

Wi-Fi data rate (max)

5760 Mbit/s

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

WLAN controller manufacturer

Intel

Mobile network connection

No

BLUETOOTH

Yes

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

NPU performance up to

48 TOPs

Total processor performance up to

120 TOPs

GPU performance up to

67 TOPs

Operating shock

140 G

Storage temperature (T-T)

-40 - 65 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 95%

Operating vibration

0.66 G

Cables included

AC

AC adapter included

Yes

Processor manufacturer

Intel

Performance cores

4

Operating system installed

Windows 11 Pro

Motherboard chipset

Intel SoC

Processor model

288V

Processor family

Intel Core Ultra 9

Thunderbolt 4 ports quantity

1

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB Power Delivery (USB PD)

Yes

HDMI ports quantity

1

HDMI version

2.1

USB Type-C DisplayPort Alternate Mode

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Combo headphone/mic port

Yes

Card reader integrated

No

AC adapter input voltage

100 - 240 V

AC adapter power

65 W

AC adapter frequency

50/60 Hz

USB charging voltage

5,9,15,20 V

USB charging current

3.25 A

USB Type-C charging port

Yes

Performance-core base frequency

3.3 GHz

Processor generation

Intel Core Ultra (Series 2)

Low Power Efficient-cores

4

Low Power Efficient-core Max Turbo Frequency

3.7 GHz

Maximum turbo power

37 W

Low Power Efficient-core Base Frequency

3300 MHz

Processor base power

30 W

Processor threads

8

Performance-core Max Turbo Frequency

5.1 GHz

Processor boost frequency

5.1 GHz

Processor cache

12 MB

Processor cache type

Smart Cache

Processor cores

8

Operating system architecture

64-bit

Trial software

McAfee LiveSafe 1Yr,Microsoft Office Trial

Total SSDs capacity

1 TB

SSD form factor

M.2

NVMe

Yes

M.2 SSD size

2230 (22 x 30 mm)

SSD capacity

1 TB

Total storage capacity

1 TB

Storage media

SSD

Optical drive type

No

Number of SSDs installed

1

SSD interface

PCI Express 4.0

Sustainability certificates

ENERGY STAR, EPEAT Climate +, EPEAT Gold

Depth

226.2 mm

Height (front)

1.4 cm

Height (rear)

1.47 cm

Width

314 mm
