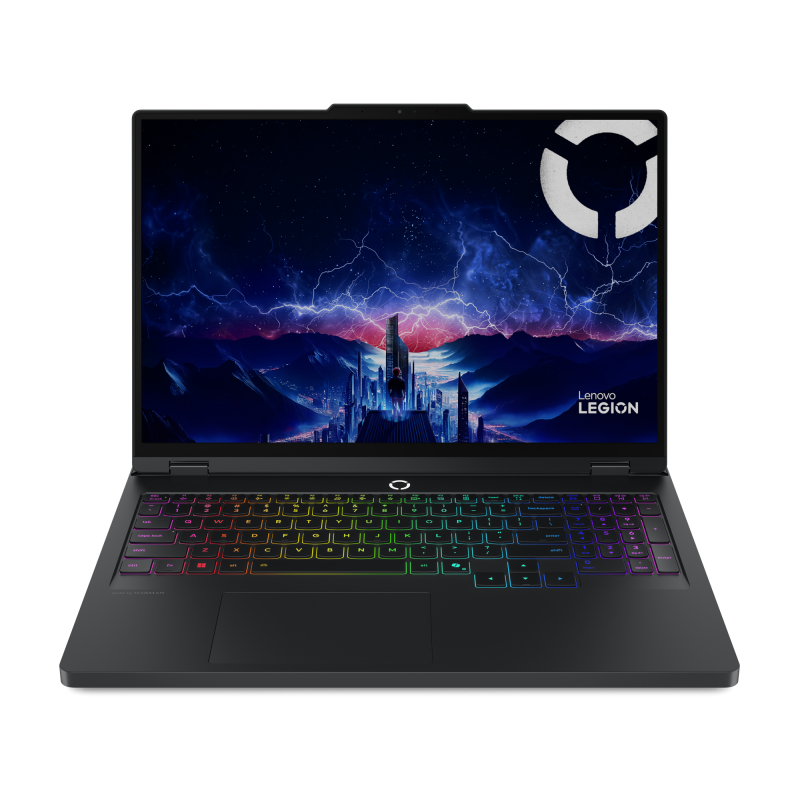

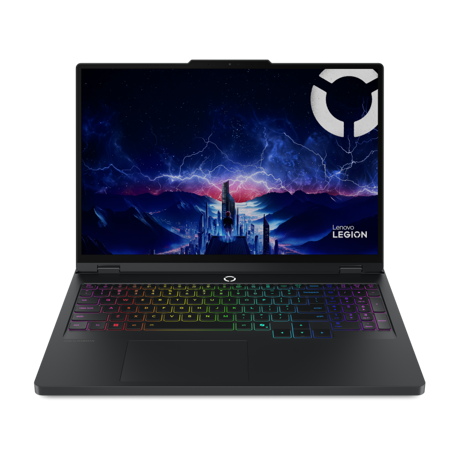

Laptop Lenovo Legion Pro 5 16IAX10H, 16" WQXGA (2560x1600) OLED 500nits (typical) / 1100nits (peak) Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Intel® Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB, video NVIDIA® GeForce RTX™ 5070 Ti 12GB

Laptop Lenovo Legion Pro 5 16IAX10H, 16" WQXGA (2560x1600) OLED 500nits (typical) / 1100nits (peak) Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Intel® Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB, video NVIDIA® GeForce RTX™ 5070 Ti 12GB GDDR7, Boost Clock 2220MHz, TGP 140W, 992 AI TOPS, RAM 2x 16GB SO-DIMM DDR5-5600; Two DDR5 SO-DIMM slots, dual-channel capable; Up to 32GB DDR5-5600 offering, SSD 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®, no ODD, No Card reader, Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio, 5.0MP with E-shutter, 100/1000M (RJ-45), WLAN Wi-Fi® 6, 802.11ax 2x2, Bluetooth 5.2, Non-WWAN, No Fingerprint Reader, Porturi: 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On; 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1; 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 2.1; 1x HDMI® 2.1, up to 8K/60Hz; 1x Headphone / microphone combo jack (3.5mm); 1x Ethernet (RJ-45); 1x Power connector, 300W Slim Tip (3-pin), Baterie Integrated 80Wh, 24-Zone RGB Backlit, English, Eclipse Black, Greutate 2.42 kg, Dimensiuni 364.38 x 268.06 x 21.69-25.95 mm, 2-year, Courier or Carry-in; 3Y Premium Care with Onsite upgrade from 2Y Depot/CCI (CPN), Accesorii None, Free DOS

Number of built-in speakers

2

Speaker power

2 W

Number of microphones

2

Speakers manufacturer

Harman Kardon

Audio Chip

Realtek ALC3306

Built-in microphone

Yes

Audio system

Nahimic Audio

Battery life (max)

3.6 h

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

80 Wh

Continuous video playback time

8.4 h

Fast charging

Yes

Privacy camera

Yes

Front camera resolution (numeric)

5 MP

Front camera

Yes

Compliance certificates

RoHS

Bluetooth

Yes

Product colour

Black

Market positioning

Gaming

Form factor

Clamshell

Product type

Laptop

Colour name

Eclipse Black

Housing material

Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

HD type

WQXGA

Display brightness

500 cd/m²

Display surface

Gloss

Native aspect ratio

16:10

Colour gamut

100%

RGB colour space

DCI-P3

High Dynamic Range (HDR) supported

Yes

Maximum refresh rate

165 Hz

Panel type

OLED

Contrast ratio (typical)

100000:1

Touchscreen

No

Display diagonal

40.6 cm (16)

Display resolution

2560 x 1600 pixels

High Dynamic Range (HDR) technology

DisplayHDR True Black 1000, Dolby Vision

Fingerprint reader

No

WWAN

Not installed

Weight

2.42 kg

Memory slots

2x SO-DIMM

On-board graphics card model

Intel® Graphics

On-board graphics card family

Intel® Graphics

Discrete graphics memory type

GDDR7

Discrete graphics card model

NVIDIA GeForce RTX 5070 Ti

NVIDIA G-SYNC

Yes

On-board graphics card

Yes

On-board GPU manufacturer

Intel

Discrete graphics card memory

12 GB

Discrete graphics card

Yes

Discrete GPU manufacturer

NVIDIA

Keyboard backlit colour

RGB

Numeric keypad

Yes

Pointing device

Touchpad

Keyboard backlit

Yes

Copilot key

Yes

Keyboard language

English

Keyboard backlit zone

24-zone RGB

Internal memory type

DDR5-SDRAM

Memory form factor

SO-DIMM

Memory channels

Dual-channel

Memory clock speed

5600 MHz

Memory layout (slots x size)

2 x 16 GB

Maximum internal memory

32 GB

Antenna type

2x2

Ethernet LAN

Yes

Mobile network connection

No

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Ethernet LAN data rates

100,1000 Mbit/s

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Bluetooth version

5.2

Total processor performance up to

36 TOPs

AI software frameworks supported by NPU

DirectML, OpenVINO, Windows ML, ONNX RT, WebNN

NPU performance up to

13 TOPs

GPU performance up to

8 TOPs

Neural processor unit (NPU)

Intel AI Boost

Sparsity support

Yes

Windows Studio effects support

Yes

Storage relative humidity (H-H)

5 - 95%

Maximum shipping altitude

3048 m

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

5 - 43 °C

Operating relative humidity (H-H)

8 - 95%

AC adapter included

Yes

Motherboard chipset

Intel HM870

Processor model

275HX

Operating system installed

No

Performance cores

8

Processor family

Intel Core Ultra 9

Efficient cores

16

Processor manufacturer

Intel

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB Sleep-and-Charge

Yes

Thunderbolt 4 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

HDMI version

2.1

USB Type-C DisplayPort Alternate Mode

Yes

Card reader integrated

No

Intel® Thunderbolt 4

Yes

Combo headphone/mic port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB Power Delivery (USB PD)

Yes

USB 2.0 ports quantity

0

USB Sleep-and-Charge ports

1

Ethernet LAN (RJ-45) ports

1

USB Type-C required charging power (min)

65 W

USB Type-C required charging power (max)

100 W

AC adapter power

300 W

USB Type-C charging port

Yes

AC adapter input voltage

100 - 240 V

AC adapter frequency

50/60 Hz

Processor threads

24

Processor cores

24

Processor cache

36 MB

Efficient-core base frequency

2.1 GHz

Performance-core base frequency

2.7 GHz

Maximum turbo power

160 W

Efficient-core Max Turbo Frequency

4.6 GHz

Processor generation

Intel Core Ultra (Series 2)

Processor boost frequency

5.4 GHz

Processor base power

55 W

Performance-core Max Turbo Frequency

5.4 GHz

Password protection type

BIOS, Power on, Supervisor

Password protection

Yes

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Total SSDs capacity

1 TB

M.2 SSD size

2280 (22 x 80 mm)

Total storage capacity

1 TB

SSD form factor

M.2

NVMe

Yes

SSD capacity

1 TB

Storage media

SSD

Optical drive type

No

Number of SSDs installed

1

SSD interface

PCI Express 4.0

Sustainability certificates

ENERGY STAR

Height (front)

2.17 cm

Height (rear)

2.6 cm

Width

364.4 mm

Depth

268.1 mm
