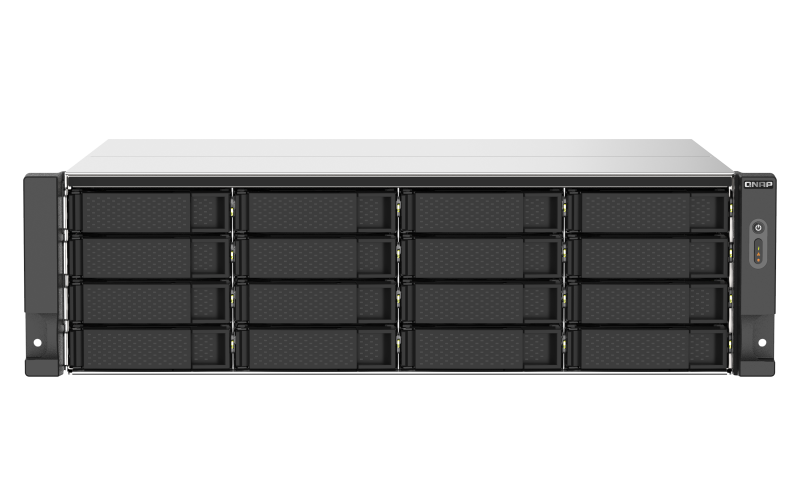

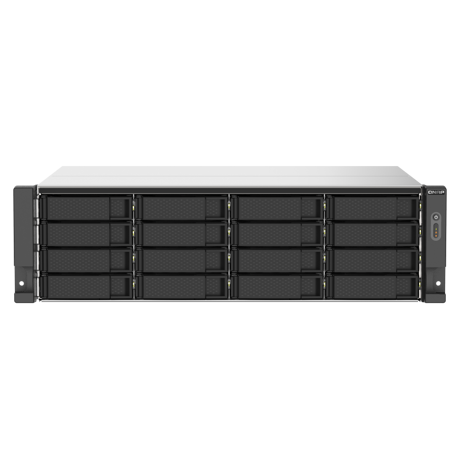

NAS QNAP 1673AU 16-Bay, CPU AMD Ryzen V1000 series V1500B 4C/8T 2.2 GHz, RAM 16GB (1 x 16GB) DDR4 (max. 64GB total, optional ECC RAM support), 16 x 2.5"/3.5" SATA 6Gbps HDD (neincluse), LAN: 2 x 2.5GbE, optional 10GbE expansion via a PCIe card, USB3.2 Gen2: 1, 3U, 2 x 550W, garantie 3 ani

NAS QNAP 1673AU 16-Bay, CPU AMD Ryzen V1000 series V1500B 4C/8T 2.2 GHz, RAM 16GB (1 x 16GB) DDR4 (max. 64GB total, optional ECC RAM support), 16 x 2.5"/3.5" SATA 6Gbps HDD (neincluse), LAN: 2 x 2.5GbE, optional 10GbE expansion via a PCIe card, USB3.2 Gen2: 1, 3U, 2 x 550W, garantie 3 ani

Product colour

Black, Grey

Chassis type

Rack (3U)

LED indicators

HDD, LAN, Power, Status, USB

On/off switch

Yes

Device class

Small & Medium Business

Number of fans

3 fan(s)

Fan diameter

8 cm

Cooling type

Active

Harmonized System (HS) code

84714100

Internal memory type

DDR4

Flash memory

5000 MB

Memory form factor

UDIMM

Memory slots

2

Maximum RAM supported

32 GB

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000,2500 Mbit/s

Dynamic DNS (DDNS)

Yes

DHCP server

Yes

DHCP client

Yes

Jumbo frames support

Yes

iSCSI support

Yes

Storage temperature (T-T)

-20 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

5 - 95%

Number of screws

64

Cables included

AC, LAN (RJ-45)

Package weight

17.1 kg

Backup function

Yes

S.M.A.R.T. support

Yes

Reset button

Yes

Web-based management

Yes

Universal Plug and Play (UPnP)

Yes

Access Control List (ACL)

Yes

Backup features

Cloud, iSCSI LUN

Buzzer

Yes

Multilingual support

Yes

Snapshot

Yes

System log

Yes

Hot spare

Yes

Share folder

CIFS/SMB

Third-party support

Yes

Browser supported

Apple Safari 7+, Google Chrome, Microsoft Internet Explorer 10+, Mozilla Firefox

Number of storage drives installed

0

Built-in FTP server

Yes

Supported file systems

FAT32, HFS+, NTFS, ext3, ext4

Type

NAS

Security algorithms

256-bit AES, FIPS 140-2, HTTPS, SNMPv3, SSH, SSL/TLS

Built-in iTunes server

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB 2.0 ports quantity

0

Ethernet LAN (RJ-45) ports

2

Power supply location

Built-in

Number of power supply units

2

Fan voltage

12 V

Power supply unit (PSU) capacity

550 W

Power consumption (sleep)

47.75 W

Power consumption (typical)

97.34 W

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

L2 cache

2 MB

L3 cache

4 MB

Processor family

Ryzen Embedded

Processor model

V1500B

Processor generation

AMD Ryzen Embedded V1000 Series

Processor threads

8

Processor manufacturer

AMD

Processor cores

4

Processor frequency

2.2 GHz

On-board graphics card model

Not available

Operating system installed

QNAP QTS

Operating system version

5.0.0

Other operating systems supported

Solaris 10

Linux operating systems supported

Yes

Windows operating systems supported

Windows 10, Windows 7, Windows 8

RAID support

Yes

Storage drives installed

Yes

Hot-swap drive bays

Yes

Supported storage drive types

HDD & SSD

Total installed storage capacity

0 TB

Installed storage drive type

No

Storage drive capacity

0 GB

Storage drive sizes supported

2.5,3.5

RAID levels

0, 1, 5, 6, 10, 50, 60, JBOD

Online RAID migration

Yes

Online RAID expansion

Yes

RAID rebuild

Yes

Bad block scan

Yes

Supported storage drive interfaces

Serial ATA II, Serial ATA III

Number of storage drives supported

16

Height

132 mm

Width

482 mm

Weight

12 kg

Depth

425 mm

Storage-Format

NAS

Storage-Interface

RJ45+USB

Storage-Type

HDD

Supported-HDDs

12
