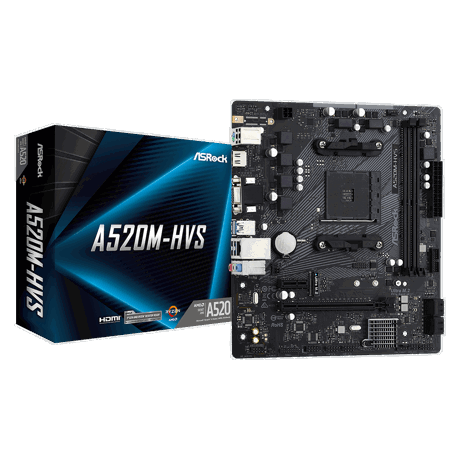

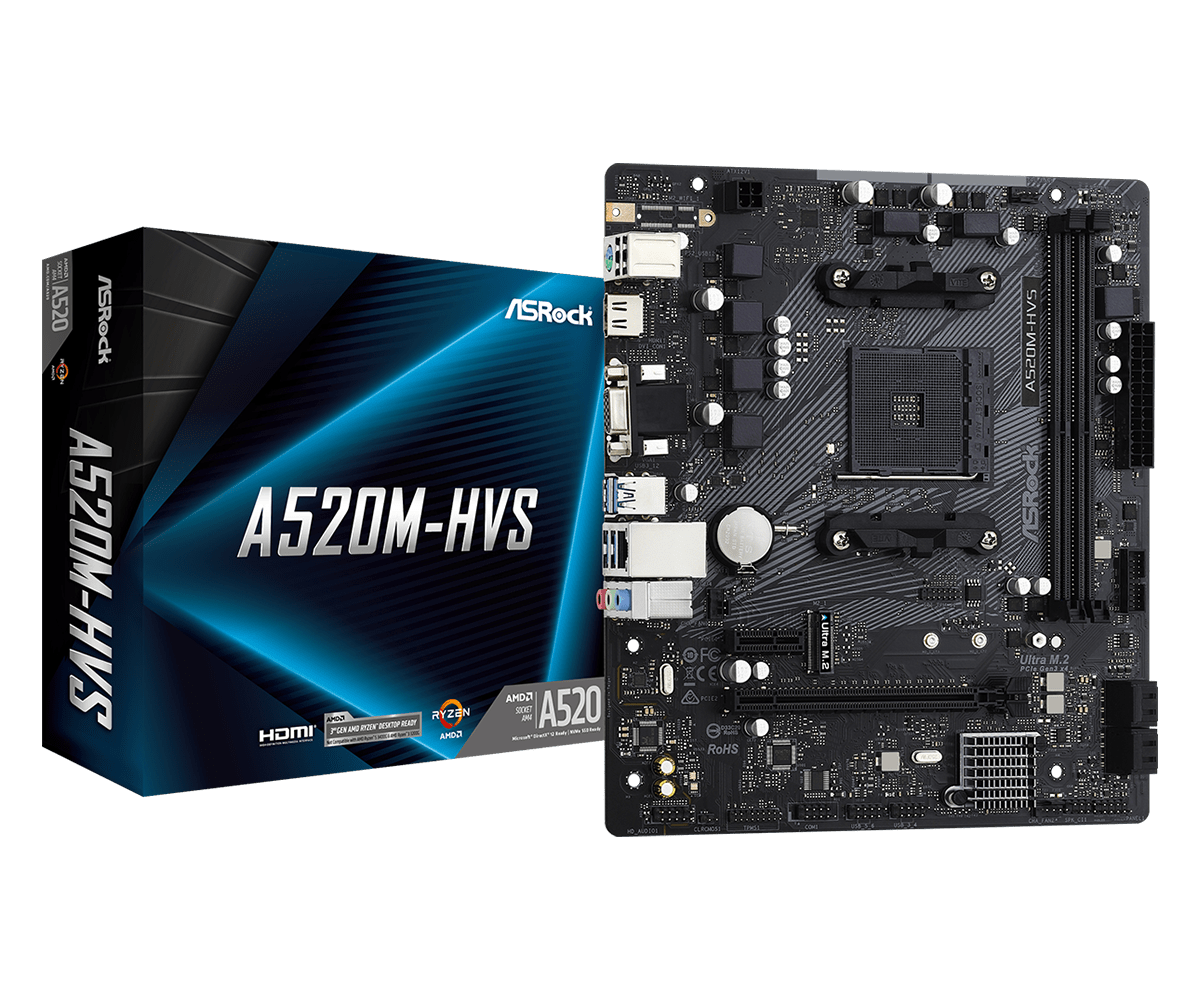

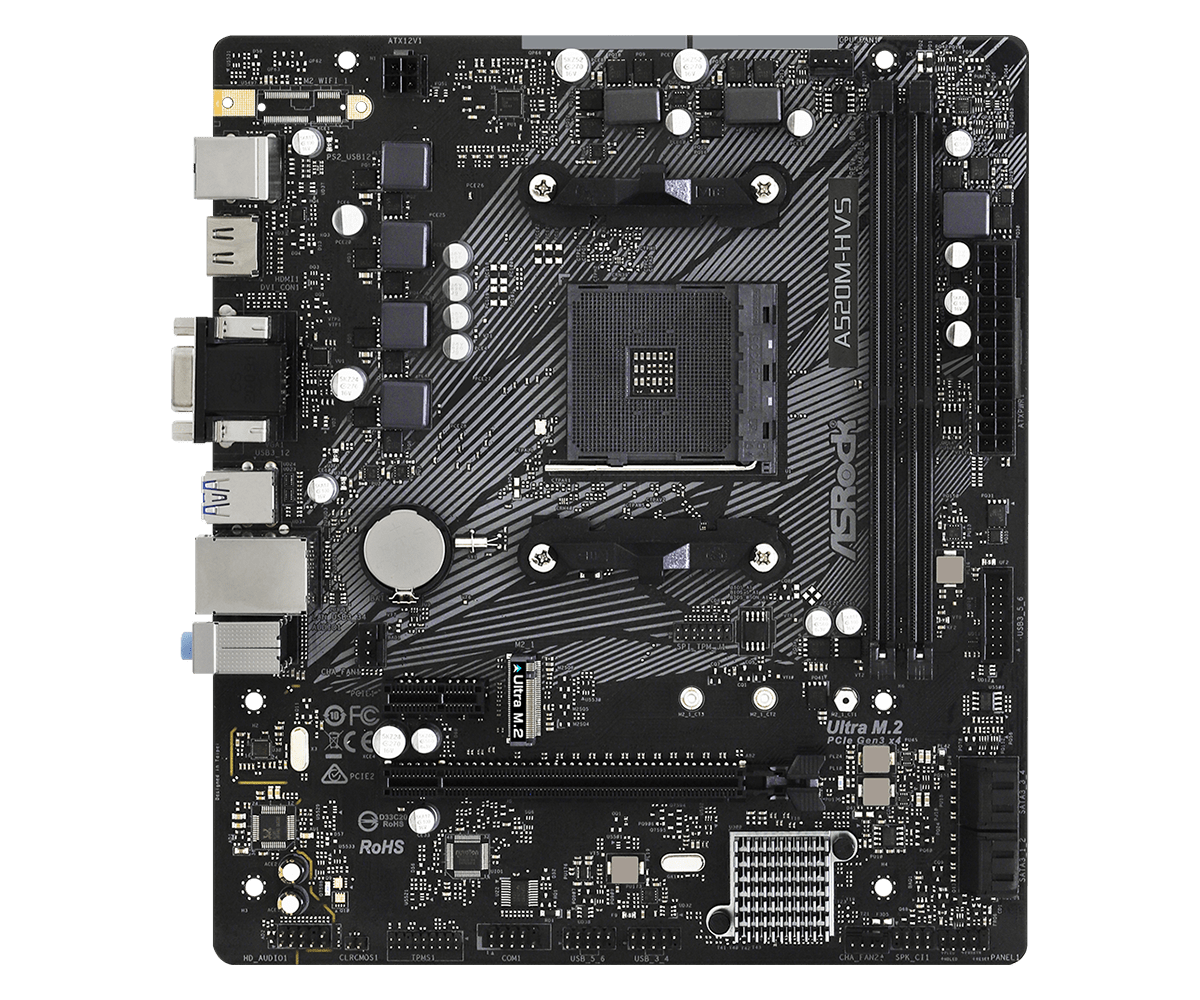

Placa de baza ASRock A520M-HVS, Socket AM4

Performanta in care poti avea incredere
Te poti baza pe cipul AMD A520  pentru a-ti oferi performanta si conexiunile de care ai nevoie.

Ultra M.2 32Gb / s (PCIe Gen3 x4 si SATA3)
Interfata PCIe Gen3 x4 Ultra M.2 impinge viteze de transfer de date de pana la 32Gb / s. In plus, suporta si module M.2 SATA3 6Gb / s.

AMD SMART ACCESS MEMORY
Procesorul conventional de sisteme PC poate accesa doar o fractiune din memoria grafica si limiteaza performanta sistemului. Cu memoria de acces inteligent AMD, canalul de date este extins pentru a valorifica intregul potential al memoriei GPU, elimina blocajul si creste performanta.

Placa de baza Super Alloy

• Choke premium de 50A;
• PCB din fibra de sticla de mare densitate;
• PCB sapphire black.

BIOS type

UEFI AMI

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

1

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD A520

Graphics card

Radeon Vega

Graphics card family

AMD

Number of SATA III connectors

0

Number of COM connectors

1

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA II connectors

0

Number of Parallel ATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

Harmonized System (HS) code

84733020

Supported memory clock speeds

2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Unbuffered memory

Yes

Number of memory slots

2

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Maximum internal memory

64 GB

Ethernet LAN

Yes

Wi-FI

No

Wake-on-LAN ready

Yes

Ethernet interface type

Gigabit Ethernet

LAN controller

Realtek RTL8111H

Drivers included

Yes

Cables included

SATA

DVI-D ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

HDMI ports quantity

1

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 3000 Series

Processor manufacturer

AMD

Microphone in

Yes

eSATA ports quantity

0

Firewire (IEEE 1394) ports

0

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

5

Depth

20.1 mm

Width

230 mm

CPU încorporat

No

PCI

0

Serial-or-Paralel

No/No
