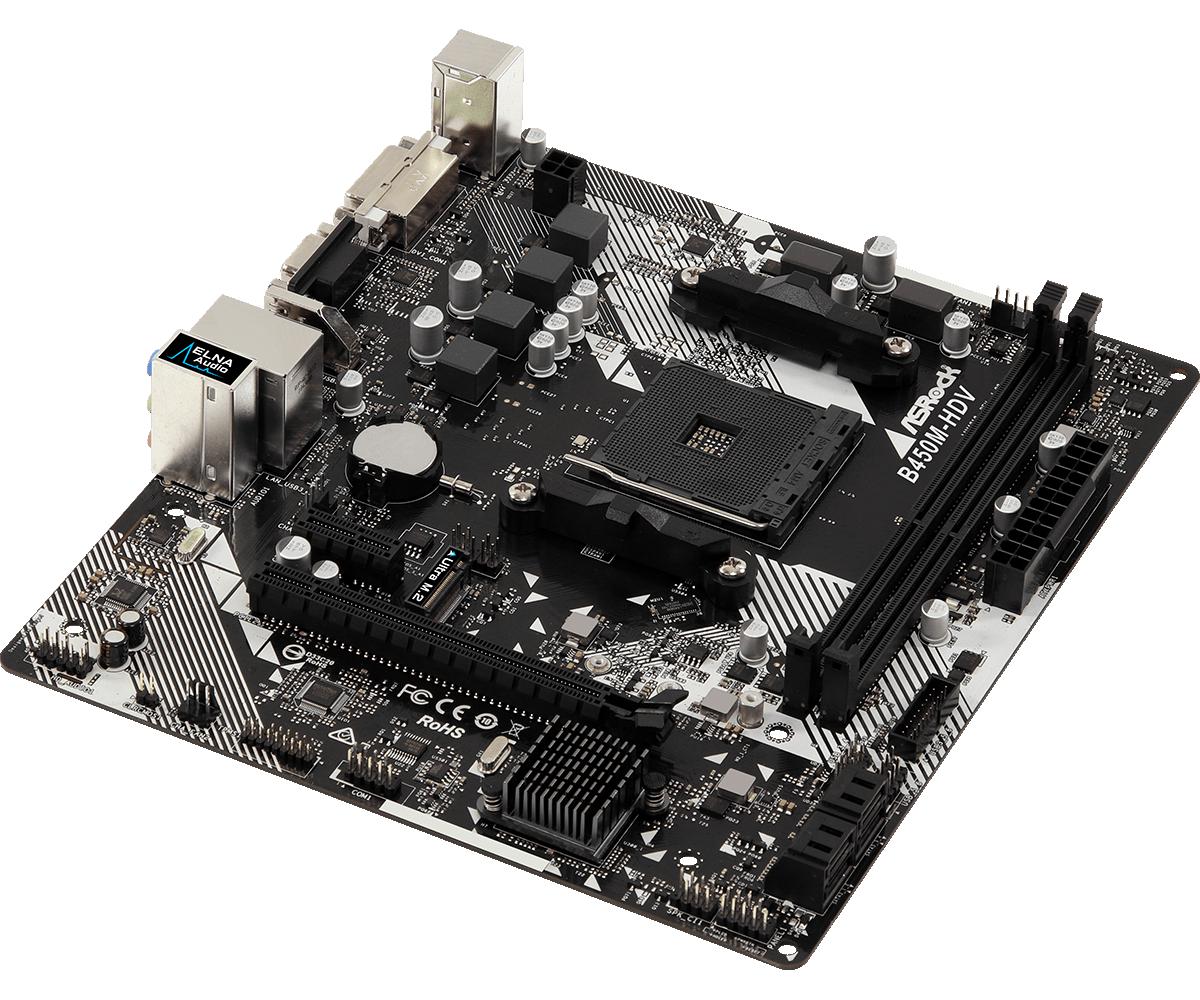

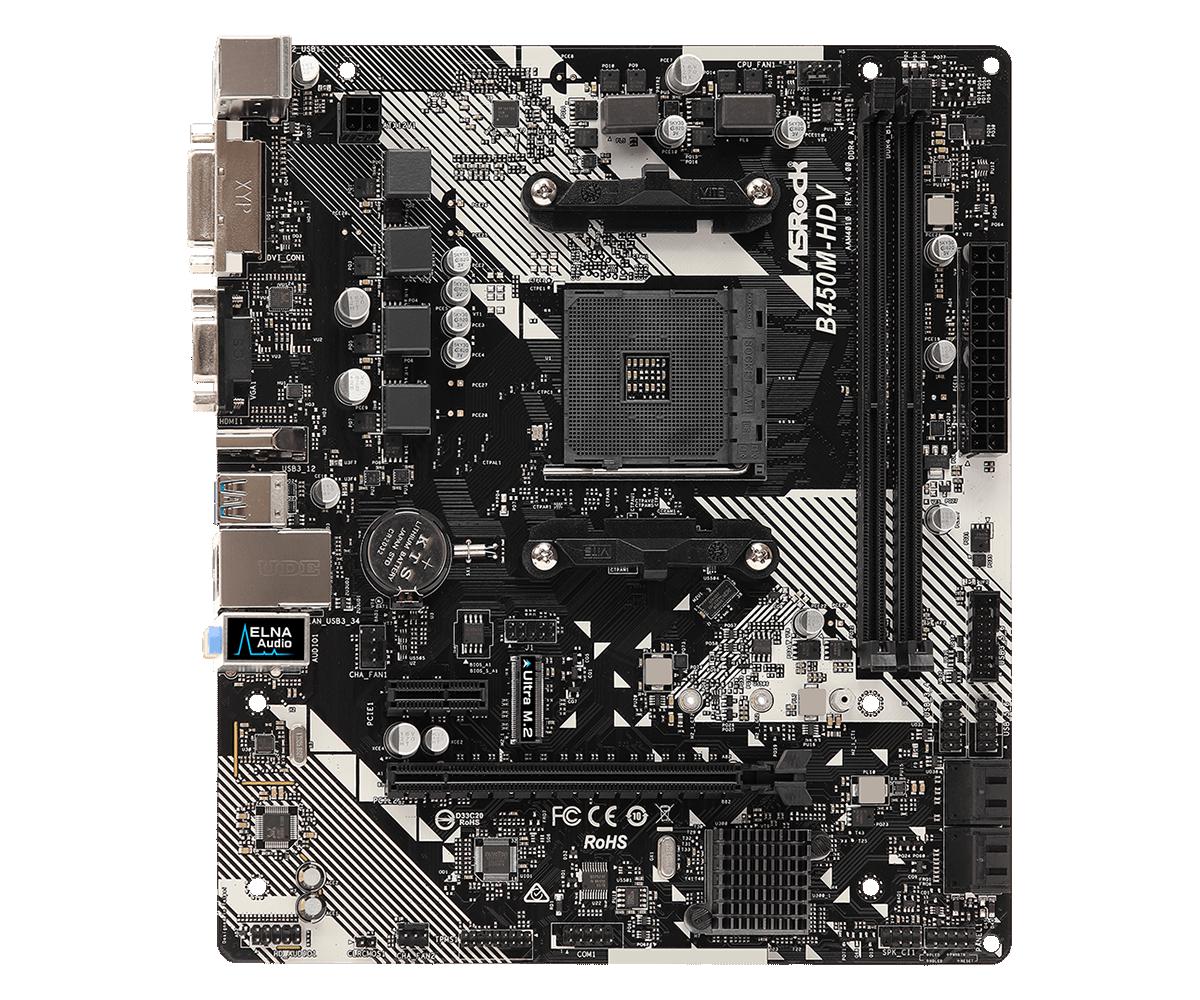

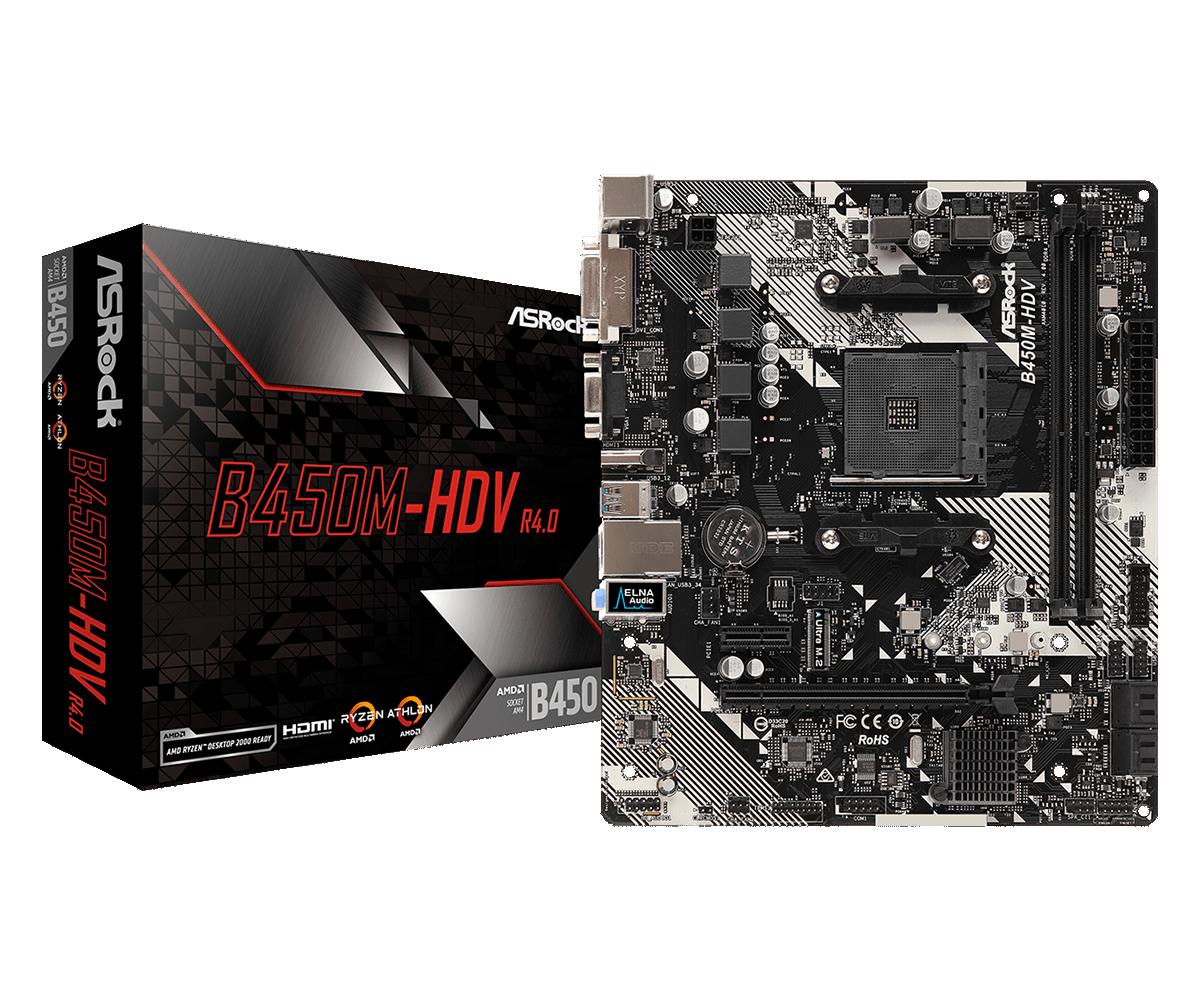

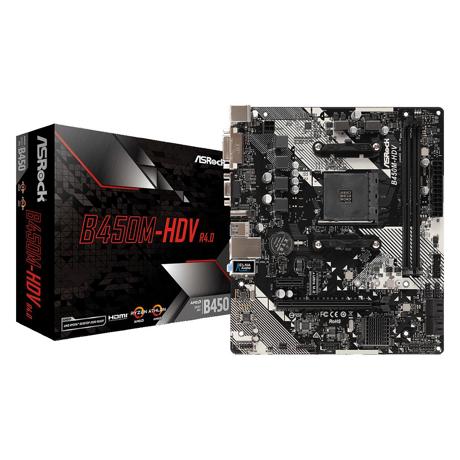

Placa de baza ASRock B450M-HDV R4.0, Socket AM4

• Interfata PCIe Gen3 x4 Ultra M.2 impinge viteza de transfer pana la 32Gb/s. In plus, suporta module SATA3 6Gb/s si este compatibil cu kit-ul ASRock U.2, permitand instalarea SSD-urilor U.2 PCIe Gen3 x4.
• Grafica, grafica si chiar si mai multa grafica! Ai cerut mai mult suport vizual asadar aceasta placa de baza ofera suport pentru Triple Monitor. Se pot alege pana la 3 interfete de display din panoul i/o pentru conectarea monitoarelor si utilizarea lor in mod simultan fara instalarea unei placi grafice aditionale.
• ASRock a implementat condensatori solizi la aceasta placa de baza. Cu acesti condensatori, placa de baza poate functiona mai stabil si se asigura o durata mai lunga de viata.

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

BIOS memory size

128 Mbit

ACPI version

5.1

System Management BIOS (SMBIOS) version

2.3

PCI Express x1 (Gen 2.x) slots

1

PCI Express x16 (Gen 3.x) slots

3

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio Chip

Realtek ALC887

Component for

PC

Audio output channels

7.1 channels

Motherboard chipset

AMD B450

Certification

- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

Graphics card family

AMD

HDCP

Yes

On-board graphics card

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of Parallel ATA connectors

0

Front panel audio connector

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

TPM connector

Yes

12V power connector

Yes

Number of COM connectors

1

Chassis intrusion connector

Yes

Harmonized System (HS) code

84733020

Supported memory clock speeds

2133,2400,2667,2933,3200 MHz

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Maximum internal memory

32 GB

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8111H

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Yes

Wake-on-LAN ready

Yes

Wi-FI

No

Quick installation guide

Yes

Utilities included

Yes

Weight

46.5 g

Cables included

SATA

Bundled software

AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Drivers included

Yes

HDMI ports quantity

1

DVI-D ports quantity

1

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Processor socket

Socket AM4

Processor manufacturer

AMD

Compatible processor series

AMD Athlon, AMD Ryzen 2000 Series, AMD Ryzen 3000 Series

Microphone in

Yes

Headphone outputs

1

eSATA ports quantity

0

Firewire (IEEE 1394) ports

0

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

RAID levels

0, 1, 10

Width

230 mm

Depth

20.1 mm

Height

70 mm

CPU încorporat

No

PCI

0

Serial-or-Paralel

No/No
