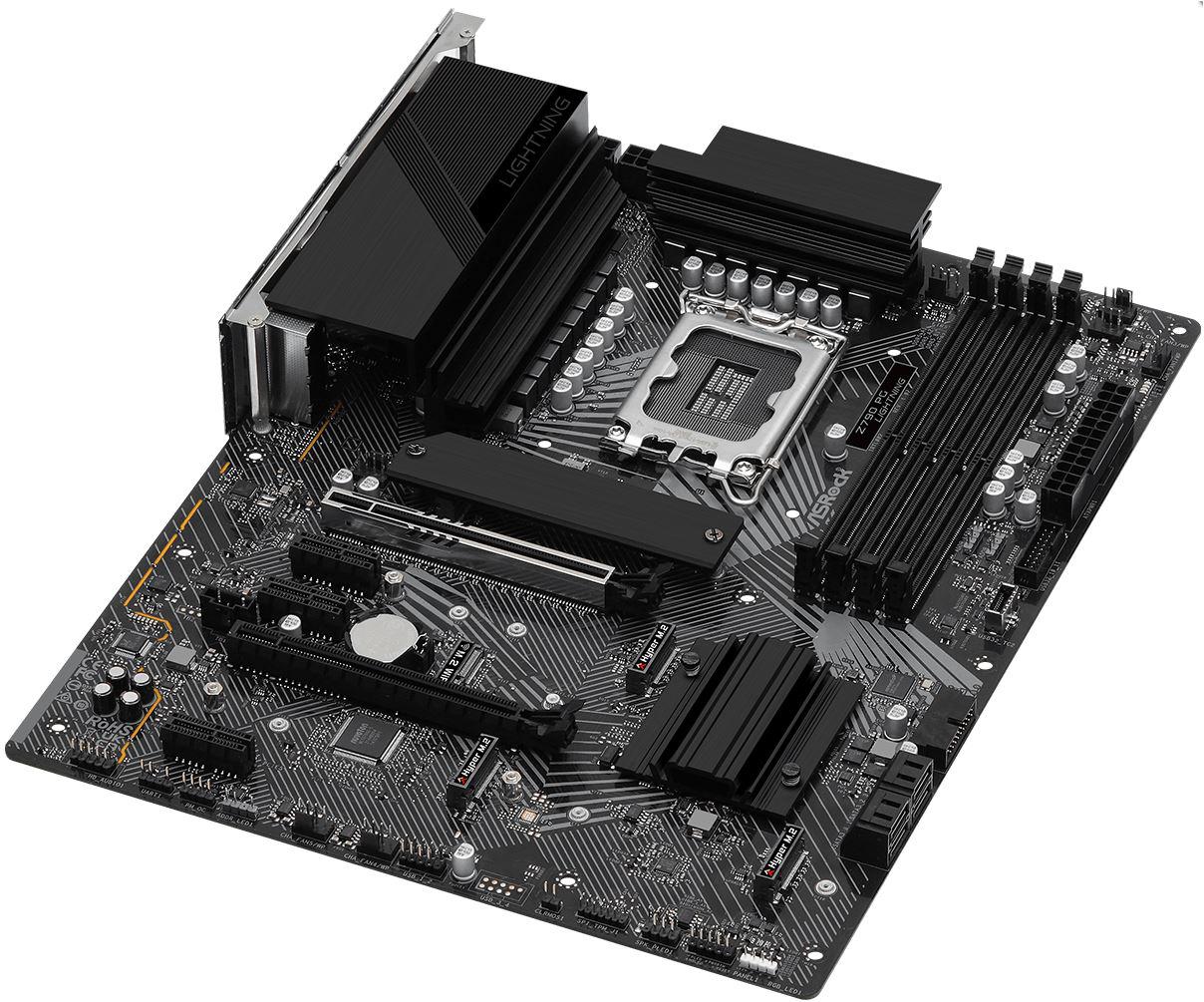

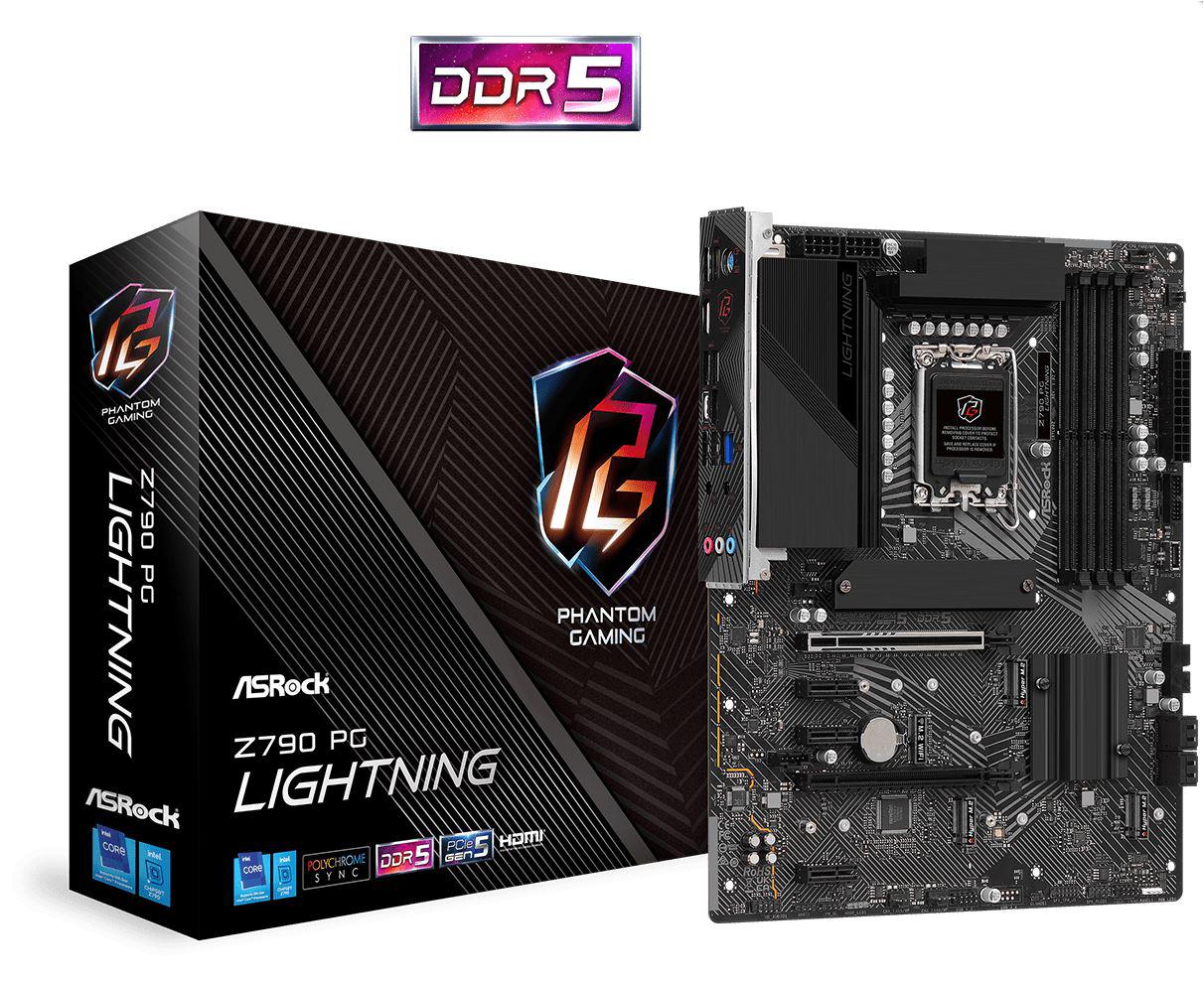

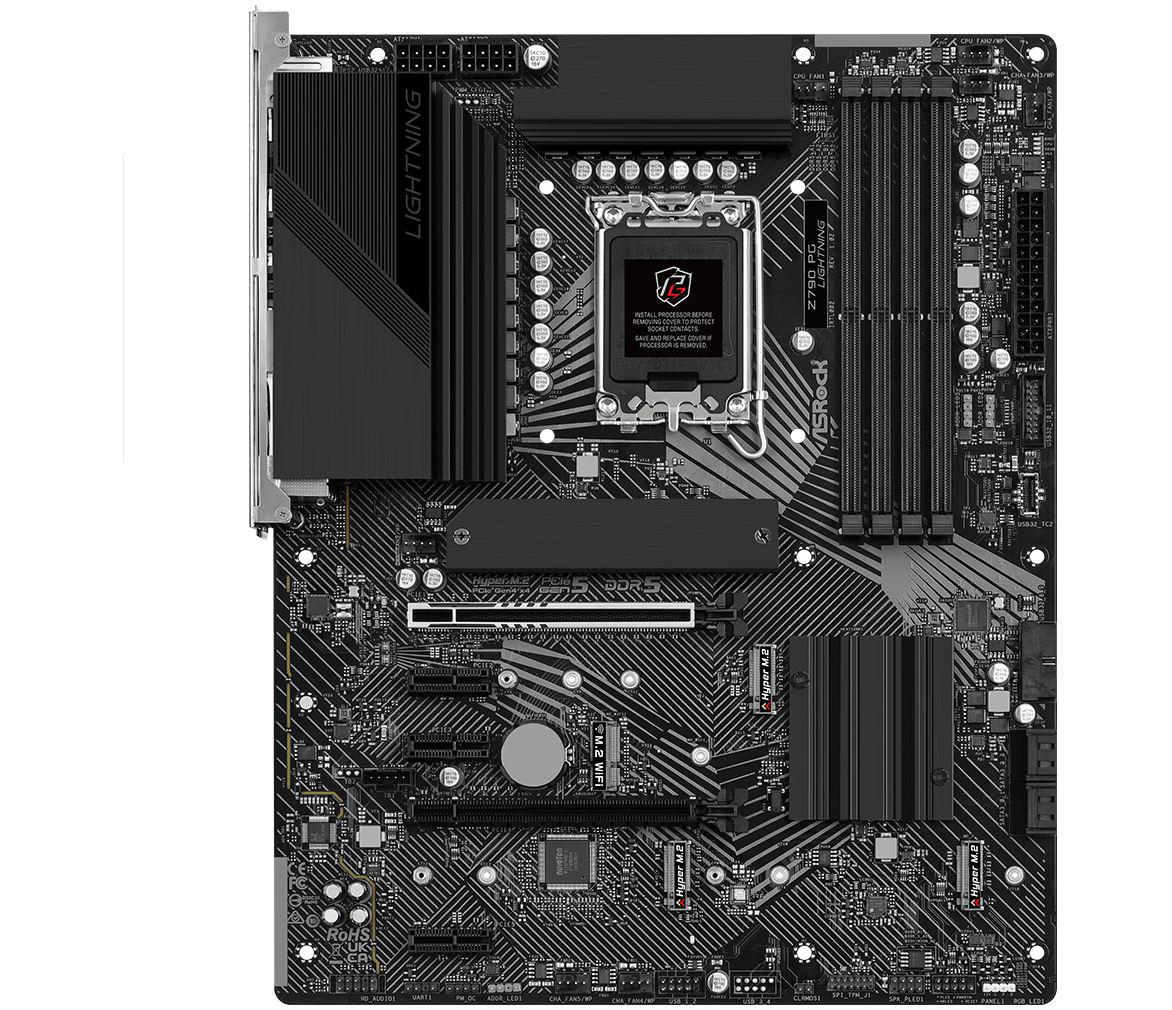

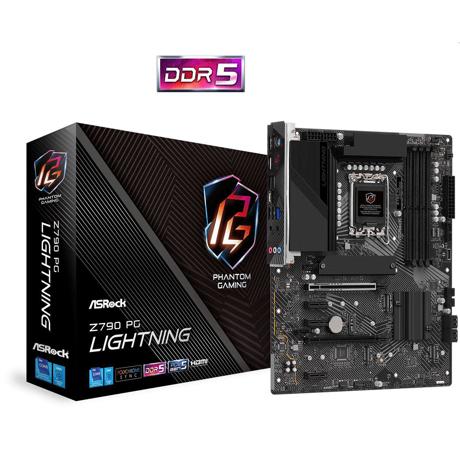

Placa de baza Asrock Z790 PG LIGHTNING LGA1700

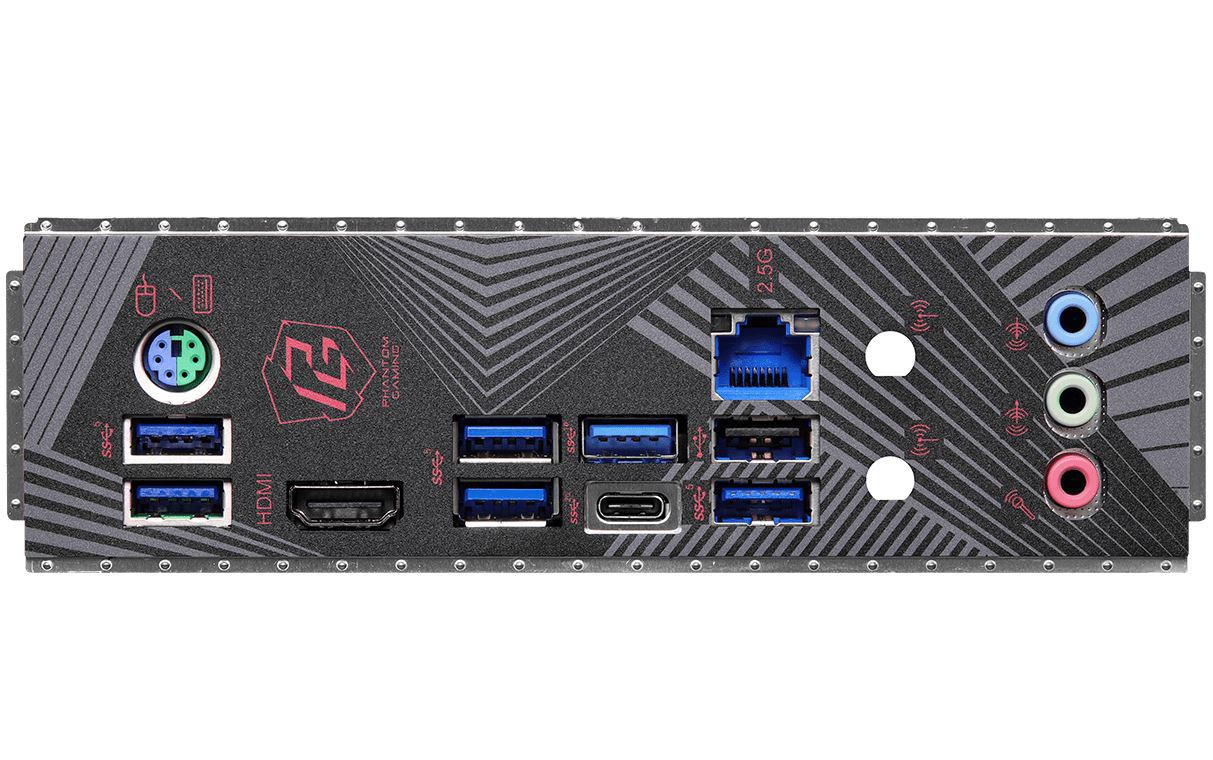

Placa de baza Asrock Z790 PG LIGHTNING LGA 1700 Supports 13th Gen & 12th Gen Intel® Core™ Processors 14+1+1 Phase Power Design, Dr.MOS for VCore+GT 4 x DDR5 DIMMs, supports up to 6800+(OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1, 1 M.2 Key-E for WiFi Graphics Output Options: 1 HDMI, eDP 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 9 USB 3.2 Gen1 Type-A (5 Rear, 4 Front), 3 USB 2.0 (1 Rear, 2 Front) Realtek 2.5G LAN

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

PCI Express x1 (Gen 3.x) slots

3

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

Intel Z790

Motherboard form factor

ATX

Motherboard chipset family

Intel

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Thunderbolt headers

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

TPM connector

Yes

RGB LED pin header

Yes

USB 2.0 connectors

1

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Maximum internal memory

128 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Ethernet LAN

Yes

Wi-FI

No

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Dragon RTL8125BG

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

1

DVI-D ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

Processor manufacturer

Intel

Compatible processor series

Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9

Processor socket

LGA 1700

Maximum number of SMP processors

1

PS/2 ports quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

VGA (D-Sub) ports quantity

0

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

RAID levels

0, 1, 5, 10

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
