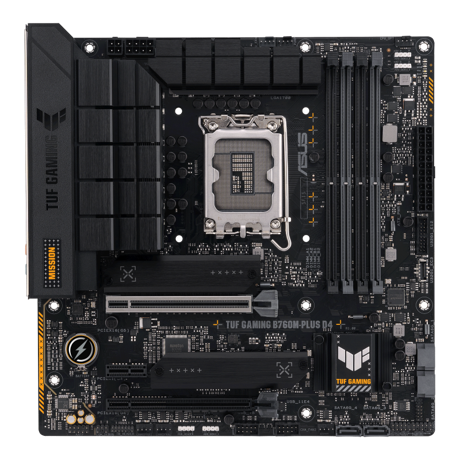

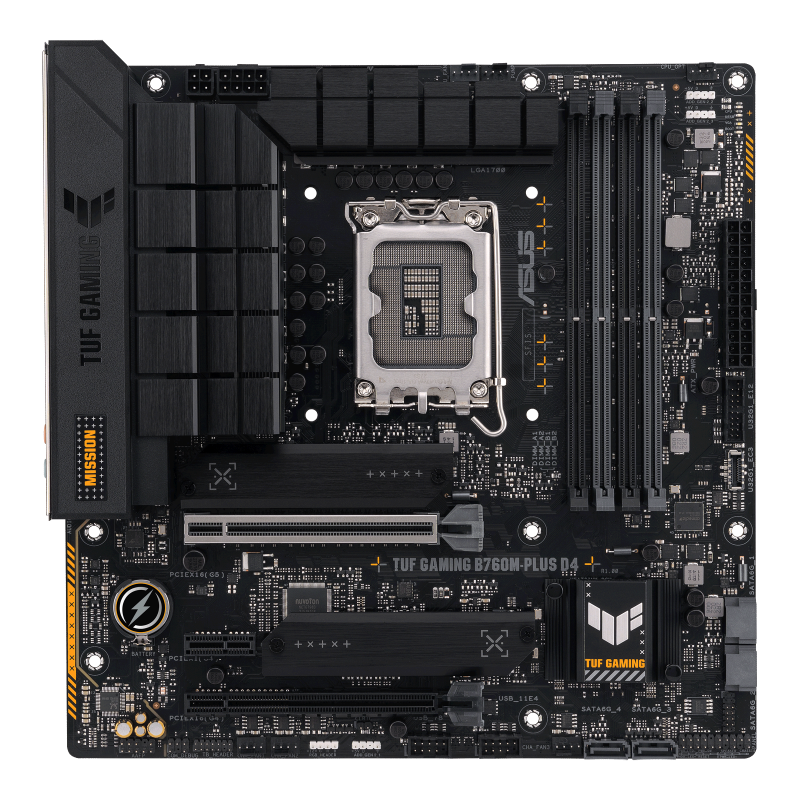

ASUS TUF GAMING B760M-PLUS D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type

ASUS TUF GAMING B760M-PLUS D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

BIOS type

UEFI AMI

Clear CMOS button

Yes

BIOS memory size

128 Mbit

PCI Express x1 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Windows operating systems supported

Windows 10 x64, Windows 11

Component for

PC

Audio output channels

7.1 channels

Motherboard chipset

Intel B760

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Parallel processing technology support

Not supported

RGB LED pin header

Yes

12V power connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Thunderbolt headers

1

Peripheral (Molex) power connectors (4-pin)

1

Number of chassis fan connectors

3

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR4-SDRAM

Maximum internal memory

128 GB

Memory channels

Dual-channel

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

5333 MHz

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Wi-FI

Yes

Cables included

SATA

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

DVI-D ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

HDMI ports quantity

1

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPorts quantity

1

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

Line-in

Yes

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

VGA (D-Sub) ports quantity

0

S/PDIF out port

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

Width

244 mm

Depth

244 mm
