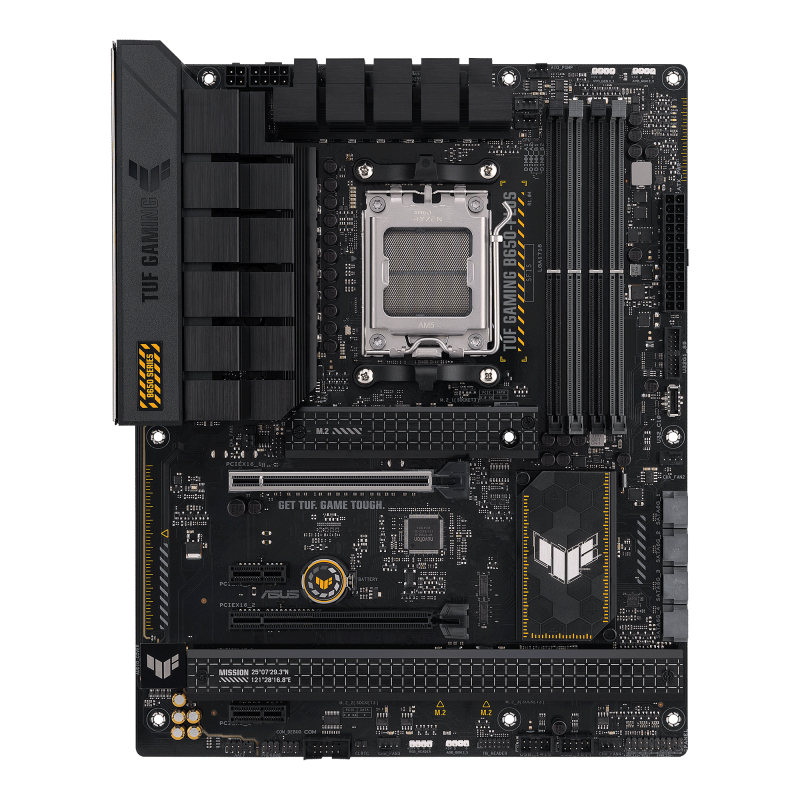

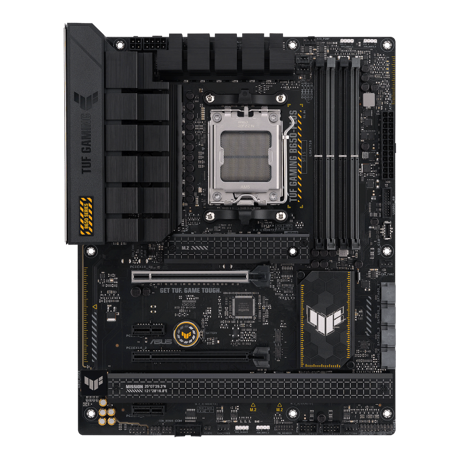

MB Asus TUF GAMING B650-PLUS

MB Asus TUF GAMING B650-PLUS

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Number of M.2 (M) slots

3

PCI Express x4 (Gen 1.x) slots

2

PCI Express x16 (Gen 4.x) slots

2

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset family

AMD

Windows operating systems supported

Windows 10, Windows 11 x64

Power source type

ATX

Motherboard form factor

ATX

Motherboard chipset

AMD B650

Parallel processing technology support

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of chassis fan connectors

4

RGB LED pin header

Yes

12V power connector

Yes

Number of COM connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Thunderbolt headers

1

Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Supported memory clock speed (max)

6400 MHz

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Maximum internal memory

128 GB

Memory channels

Dual-channel

Ethernet LAN

Yes

Wi-FI

No

Ethernet interface type

2.5 Gigabit Ethernet

Back-to-BIOS button

Yes

Package height

68 mm

Package width

338 mm

Package depth

273 mm

Package weight

13.6 kg

DisplayPort version

1.4

HDMI ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 2.0 ports quantity

4

DVI-D ports quantity

0

DisplayPorts quantity

1

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

VGA (D-Sub) ports quantity

0

Line-in

Yes

RAID support

Yes

Supported storage drive types

HDD & SSD

RAID levels

0, 1, 10

Supported storage drive interfaces

M.2, SATA III

Width

305 mm

Depth

244 mm

MB-Format

ATX

RAM-Slots

4

PCI-Ex1

2

MB-Socket

AM5

PCI-Ex16

2

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
