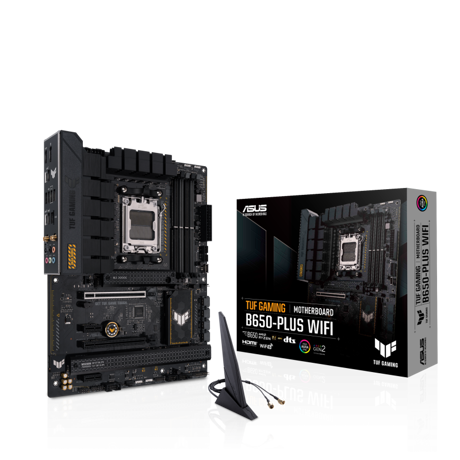

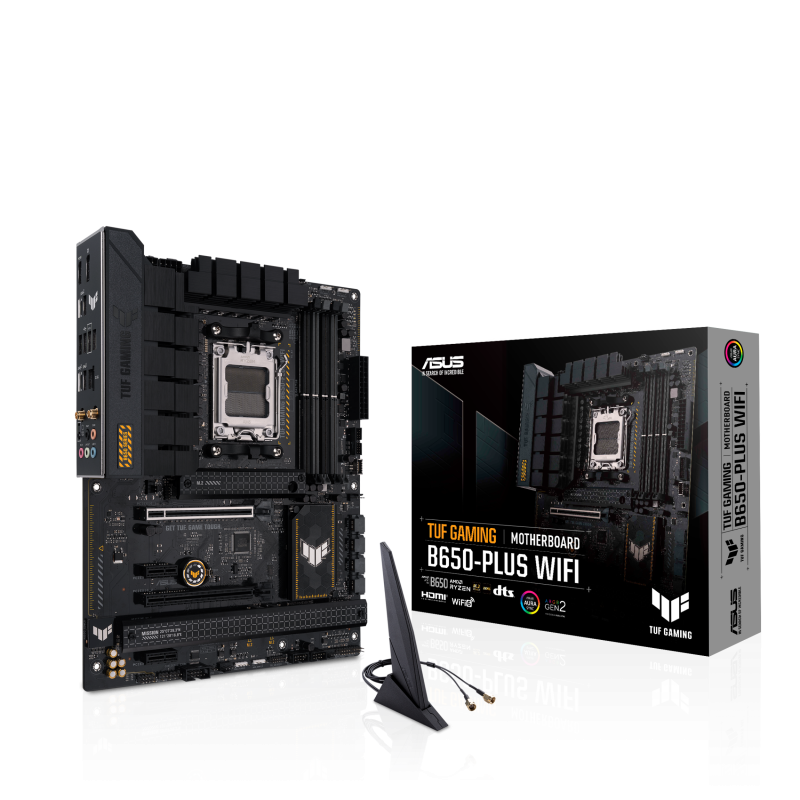

MB Asus TUF GAMING B650-PLUS WIFI

MB Asus TUF GAMING B650-PLUS WIFI

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Product colour

Black

PCI Express x1 (Gen 4.x) slots

2

Number of M.2 (M) slots

3

PCI Express x16 (Gen 5.x) slots

0

PCI Express OCuLink connectors (NVMe support)

0

PCI Express x1 slots

0

PCI Express x1 (Gen 2.x) slots

0

PCI Express x1 (Gen 3.x) slots

0

PCI Express x4 slots

0

PCI Express x4 (Gen 1.x) slots

0

PCI Express x4 (Gen 2.x) slots

0

PCI Express x4 (Gen 4.x) slots

0

PCI Express x8 slots

0

PCI Express x8 (Gen 1.x) slots

0

PCI Express x16 slots

0

PCI Express x16 (Gen 2.x) slots

0

PCI Express x16 (Gen 3.x) slots

0

PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots

0

PCI slots

0

PCI-X slots

0

Mini PCI Express slots

0

Mini PCI Express (Gen 1.x) slots

0

Mini PCI Express (Gen 2.x) slots

0

Mini PCI Express slot (full length)

0

Mini PCI Express slot (half-length)

0

PCI Express x16 (Gen 4.x) slots

2

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset family

AMD

Motherboard form factor

ATX

Motherboard chipset

AMD B650

On-board graphics card

No

Parallel processing technology support

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2x2 connectors

0

Number of COM connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Thunderbolt headers

1

Number of chassis fan connectors

4

RGB LED pin header

Yes

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Maximum internal memory

128 GB

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.2

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Weight

1.2 kg

mSATA ports quantity

0

Package width

338 mm

Package depth

273 mm

Package weight

13.6 kg

Package height

68 mm

DVI-I ports quantity

0

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 2.0 ports quantity

4

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series

S/PDIF out port

No

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

PS/2 ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB4 Gen 3x2 ports quantity

0

VGA (D-Sub) ports quantity

0

USB4 Gen 2x2 ports quantity

0

Line-in

Yes

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 10

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of storage drives supported

7

Width

305 mm

Depth

244 mm

Height

50 mm

MB-Format

ATX

RAM-Slots

4

PCI-Ex1

2

MB-Socket

AM5

PCI-Ex16

2

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
