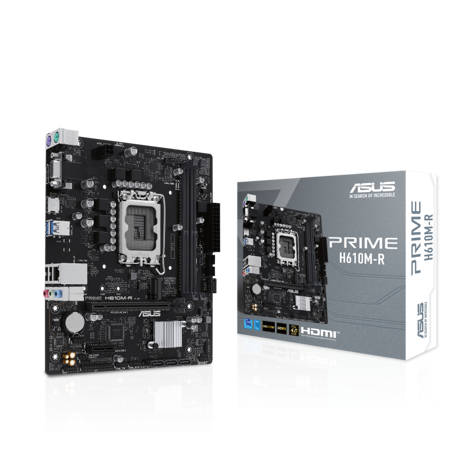

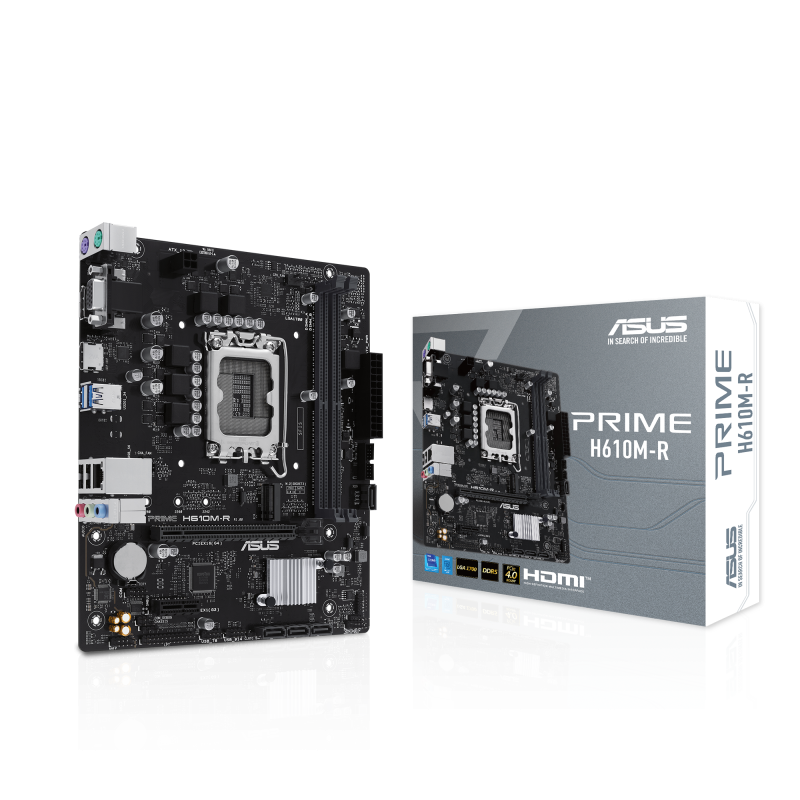

Placa de bază ASUS PRIME H610M-R LGA1700

Placa de Baza ASUS PRIME H610M-R LGA1700, 2x DDR5, 1x DP 1x VGA 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

Intel H610

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Parallel processing technology support

Not supported

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

12V power connector

Yes

Number of chassis fan connectors

1

Audio connector

Yes

Number of COM connectors

1

Supported memory clock speed (max)

5600 MHz

ECC сompatibility

Non-ECC

Supported memory clock speeds

5600,5400,5200,5000,4800 MHz

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Maximum internal memory

96 GB

Number of memory slots

2

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

No

Weight

437 g

Cables included

SATA

Package depth

223 mm

Package height

50 mm

Package width

246 mm

Package weight

680 g

DVI-D ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 2.0 ports quantity

2

DisplayPorts quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Microphone in

Yes

Headphone outputs

1

PS/2 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

VGA (D-Sub) ports quantity

1

Line-in

Yes

Supported storage drive types

HDD & SSD

Number of storage drives supported

5

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Width

226 mm

Height

365 mm

Depth

19.5 mm

MB-Socket

1700

PCI-Ex1

0

MB-Format

micro-ATX

RAM-Slots

2

USB3

4-8

PCI-Ex16

1

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
