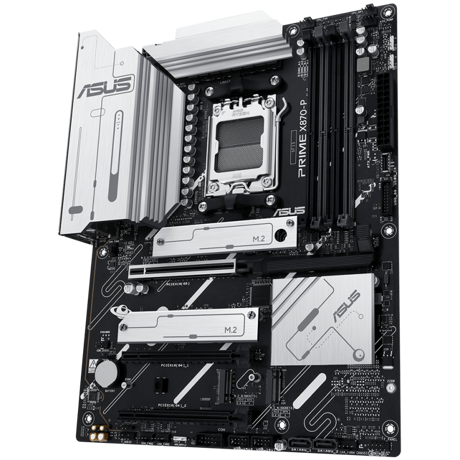

Placa de bază ASUS PRIME X870-P AM5

Placa de Baza ASUS PRIME X870-P AM5, 4x DDR5, 1x HDMI 2x USB4, 1x PCIE 5.0 x16 3x PCIE 4.0 x16, 4x M.2, 2x SATA 6GB/s, ATX

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Cooling type

Passive

PCI Express x16 (Gen 4.x) slots

2

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

4

Motherboard form factor

ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10, Windows 11

Motherboard chipset

AMD X870

Power source type

ATX

On-board graphics card

No

Parallel processing technology support

Not supported

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA II connectors

0

Number of SATA connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Number of chassis fan connectors

4

TPM connector

Yes

RGB LED pin header

Yes

12V power connector

Yes

Number of SATA III connectors

2

Number of COM connectors

1

Supported memory clock speed (max)

8000 MHz

Maximum internal memory

192 GB

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Wi-FI

No

mSATA ports quantity

0

Back-to-BIOS button

Yes

Weight

1.44 kg

Cables included

SATA

Package height

68 mm

Package weight

1.5 kg

Package depth

273 mm

Package width

353 mm

DVI-D ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

DisplayPort version

1.4a

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

USB4 Gen 2x2 ports quantity

2

Microphone in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

VGA (D-Sub) ports quantity

0

Line-in

Yes

Supported storage drive types

HDD & SSD

RAID support

Yes

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

Number of HDDs supported

2

Height

4.8 mm

Width

305 mm

Depth

244 mm

MB-Format

ATX

PCI-Ex1

0

RAM-Slots

4

MB-Socket

AM5

PCI-Ex16

5

USB3

4-8

Onboard-CPU

Yes

PCI

0

Serial-or-Paralel

No/No
