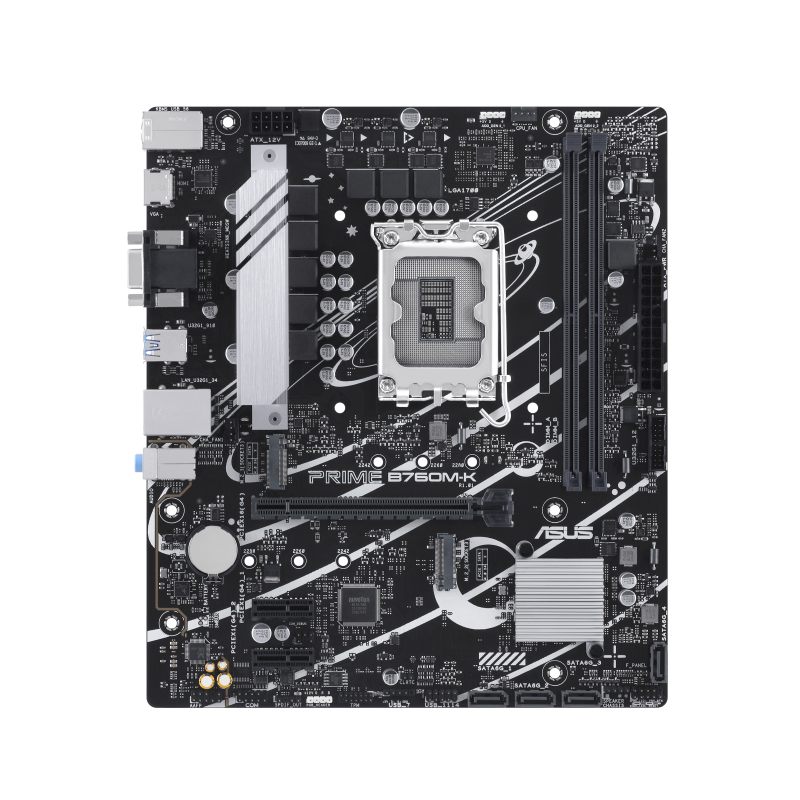

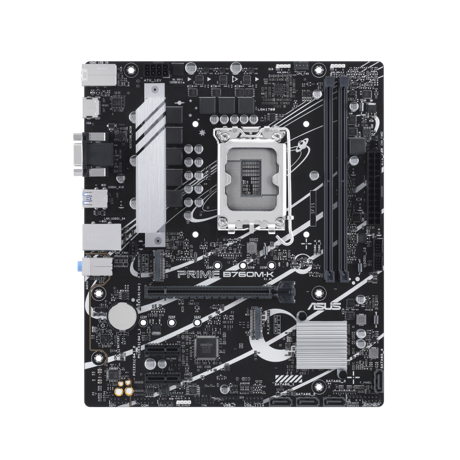

Placa de baza ASUS PRIME B760M-K LGA 1700, 2x DDR5, 1x VGA 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Placa de baza ASUS PRIME B760M-K LGA 1700, 2x DDR5, 1x VGA 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

PCI Express x1 (Gen 4.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

Windows operating systems supported

Windows 10 x64, Windows 11

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

Intel B760

Motherboard chipset family

Intel

Motherboard form factor

micro ATX

Parallel processing technology support

Not supported

TPM connector

Yes

RGB LED pin header

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

12V power connector

Yes

S/PDIF out connector

Yes

Number of COM connectors

1

Number of chassis fan connectors

1

Supported memory clock speed (max)

8000 MHz

Supported memory clock speeds

8000,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Memory slots type

DIMM

Unbuffered memory

Yes

Number of memory slots

2

Memory channels

Dual-channel

Maximum internal memory

96 GB

Ethernet LAN

Yes

Wi-FI

No

Ethernet interface type

2.5 Gigabit Ethernet

Cables included

SATA

Package width

270 mm

Package height

51.5 mm

Package depth

263 mm

Package weight

1.01 kg

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

DVI-D ports quantity

0

Processor manufacturer

Intel

Processor socket

LGA 1700

Maximum number of SMP processors

1

Supported processor sockets

LGA 1700

PS/2 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

S/PDIF out port

Yes

VGA (D-Sub) ports quantity

1

Supported storage drive types

HDD & SSD

RAID support

Yes

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

Depth

21.1 mm

Width

244 mm

MB-Socket

1700

MB-Format

micro-ATX

PCI-Ex1

2

RAM-Slots

2

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex16

1

Onboard-CPU

No
