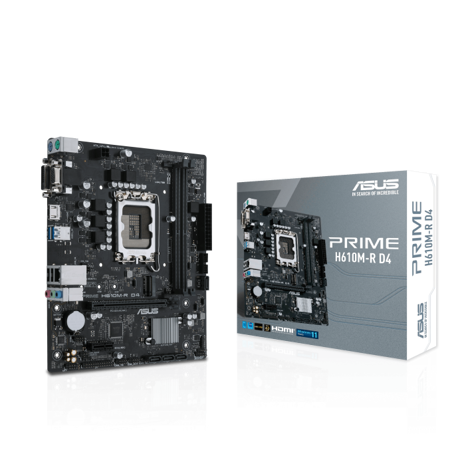

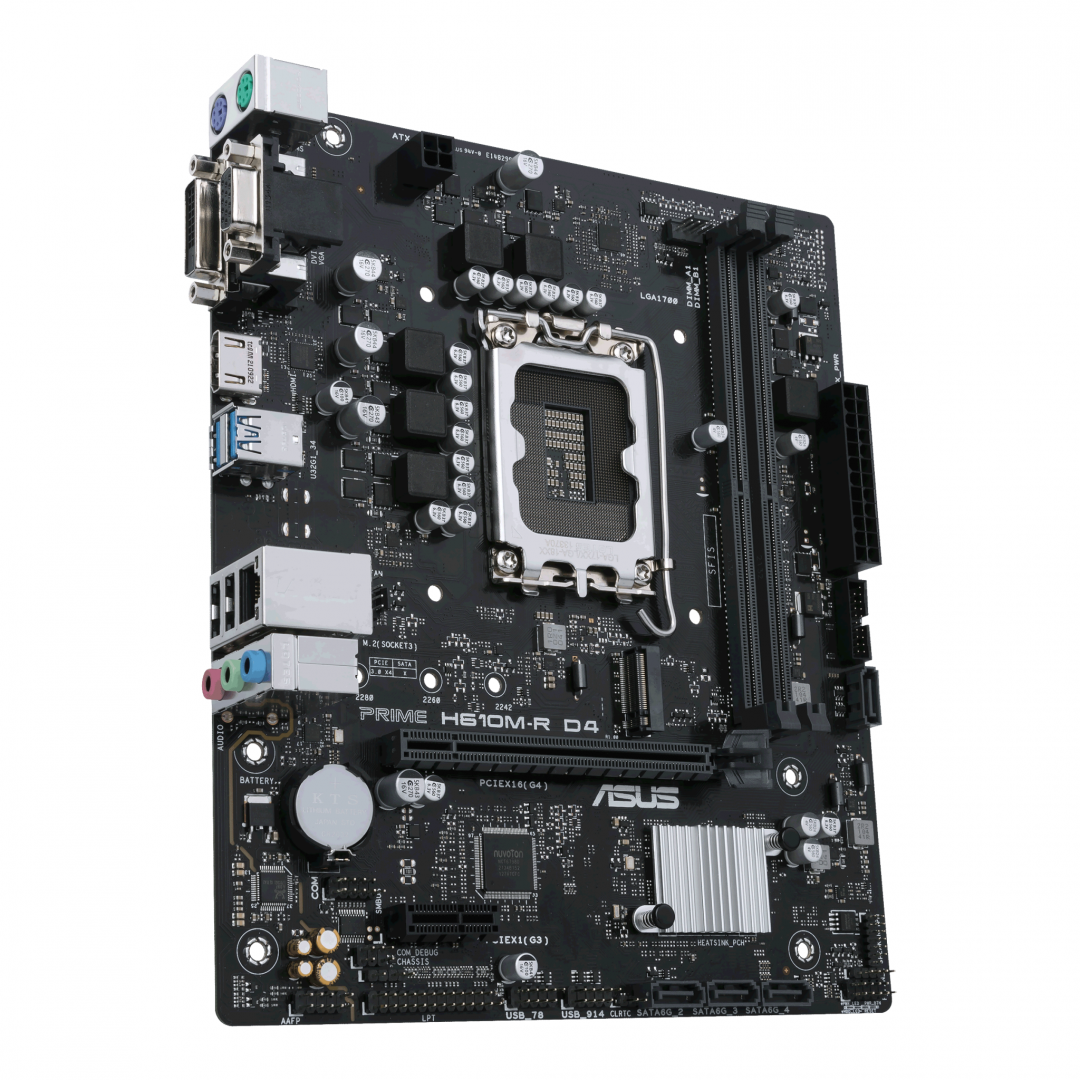

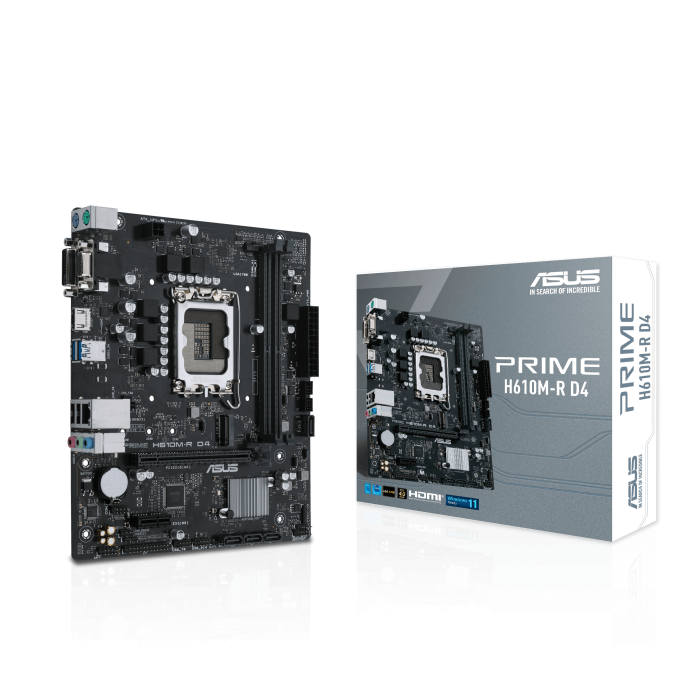

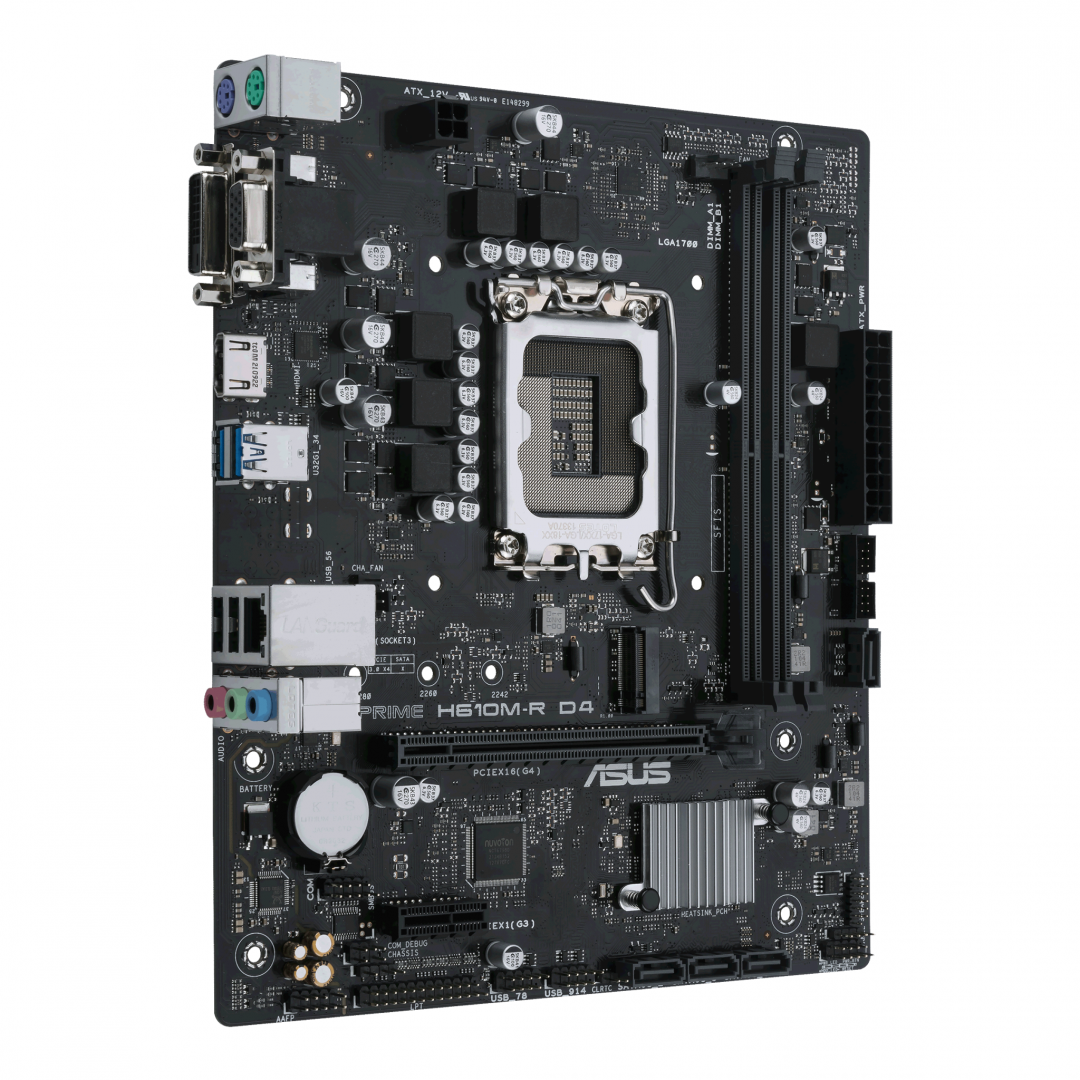

Placa de baza ASUS PRIME H610M-R D4 LGA 1700

Placa de baza Asus PRIME H610M-R D4 LGA 1700 Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot Realtek 1 Gb Ethernet, HDMI®,D-Sub, DVI USB 3.2 Gen 1 ports, SATA 6 Gbps COM header, LPT header, TPM header Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Comprehensive cooling: PCH heatsink Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 5X Protection III: Multiple hardware safeguards for all-round protection

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

BIOS memory size

128 Mbit

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

1

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset family

Intel

Motherboard chipset

Intel H610

Motherboard form factor

micro ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Maximum resolution

3840 x 2160 pixels

Parallel processing technology support

Not supported

TPM connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of COM connectors

1

12V power connector

Yes

Chassis intrusion connector

Yes

Number of chassis fan connectors

1

Audio connector

Yes

Harmonized System (HS) code

84733020

Supported memory clock speeds

2133,2400,2666,2800,2933,3000,3200 MHz

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Maximum internal memory

64 GB

Supported memory types

DDR4-SDRAM

Number of memory slots

2

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Yes

Wake-on-LAN ready

Yes

Wi-FI

No

Weight

842 g

Cables included

SATA

Drivers included

Yes

DVI-D ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

PS/2 ports quantity

2

Headphone outputs

3

Microphone in

Yes

USB connector type

USB Type-A

VGA (D-Sub) ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of storage drives supported

5

Width

226 mm

Depth

193 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
