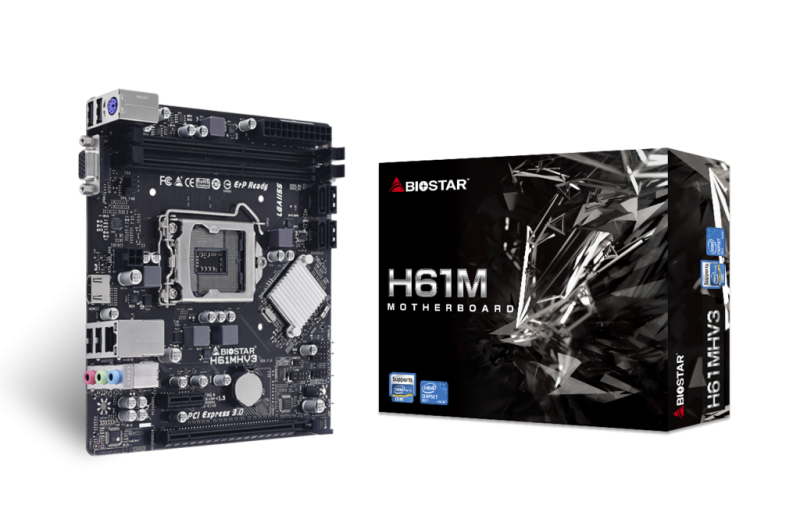

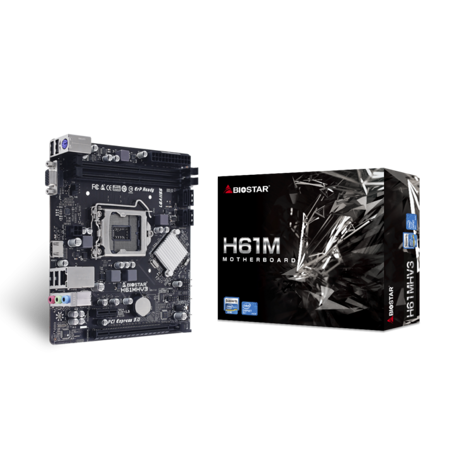

Placa de Baza BIOSTAR H61MV3 7.0 LGA 1155, 2x DDR3, 1x VGA 1x HDMI, 1x PCIE 2.0 x1 1x PCIE 3.0 x16, 4x SATA II 3GB/s, mATX

Placa de Baza BIOSTAR H61MV3 7.0 LGA 1155, 2x DDR3, 1x VGA 1x HDMI, 1x PCIE 2.0 x1 1x PCIE 3.0 x16, 4x SATA II 3GB/s, mATX

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 2.x) slots

1

PCI Express slots version

2.0, 3.0

Motherboard chipset

Intel® H61

PC health monitoring

CPU, Fan, Temperature, Voltage

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Windows operating systems supported

Windows 10, Windows 7, Windows 8, Windows 8.1

Component for

PC

USB 2.0 connectors

2

Front panel audio connector

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

Audio connector

Yes

Number of SATA II connectors

4

Harmonized System (HS) code

84733020

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 16GB, 512MB

Supported memory types

DDR3-SDRAM

Supported memory clock speeds

1066,1333,1600 MHz

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Memory channels

Dual-channel

Number of memory slots

2

LAN controller

Realtek RTL8111H

Ethernet LAN

Yes

Ethernet interface type

10 Gigabit Ethernet, 100 Gigabit Ethernet

Cables included

SATA

Drivers included

Yes

HDMI ports quantity

1

USB 2.0 ports quantity

4

Processor manufacturer

Intel

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®

Processor socket

LGA 1155 (Socket H2)

Supported processor sockets

LGA 1155 (Socket H2)

Headphone outputs

3

VGA (D-Sub) ports quantity

1

PS/2 ports quantity

1

Number of storage drives supported

4

Supported storage drive interfaces

SATA II

Width

170 mm

Height

191 mm

MB-Socket

1155

MB-Format

micro-ATX

RAM-Slots

2

USB3

2

PCI

0

Serial-or-Paralel

No/No

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No
