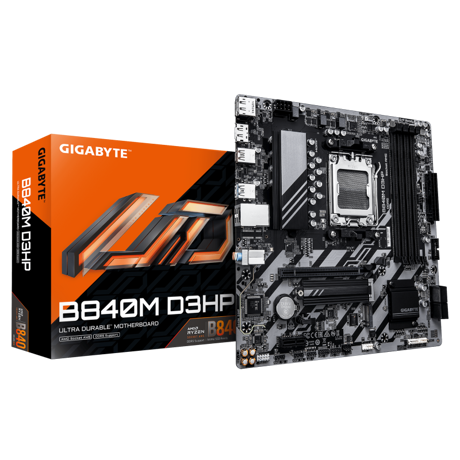

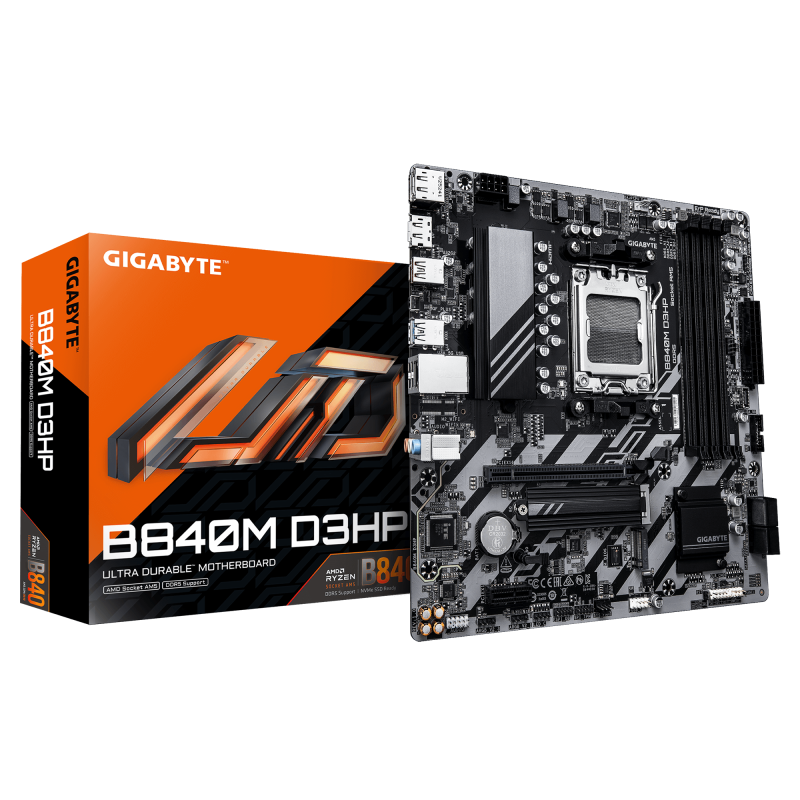

GIGABYTE B840M D3HP. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive

GIGABYTE B840M D3HP. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Lithium weight per battery

0.07 g

Battery capacity

220 mAh

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Cooling type

Passive

Product colour

Dark brown

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2580

2nd M.2 largest key size

2280

PCI Express x16 (Gen 4.x) slots

1

PCI Express x1 (Gen 3.x) slots

1

Number of M.2 (M) slots

2

Audio Chip

Realtek ALC897

Windows operating systems supported

Windows 10 x64, Windows 11 x64

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

AMD B840

Power source type

ATX

HDCP

Yes

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

HDCP version

2.3

Parallel processing technology support

Not supported

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

USB 2.0 connectors

1

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5600,5800 MHz

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

8200 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Ethernet LAN

Yes

Wi-FI

No

Ethernet interface type

Gigabit Ethernet

LAN controller

Realtek RTL8111H

Weight

960 g

Bundled software

Norton® Internet Security (OEM version)

Batteries included

Yes

Screws included

Yes

Package height

54 mm

Package width

265 mm

Package depth

265 mm

Package weight

1.04 kg

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPorts quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

Line-in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

RAID levels

0, 1, 10, 5

Number of storage drives supported

6

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Height

35 mm

Width

244 mm

Depth

244 mm
