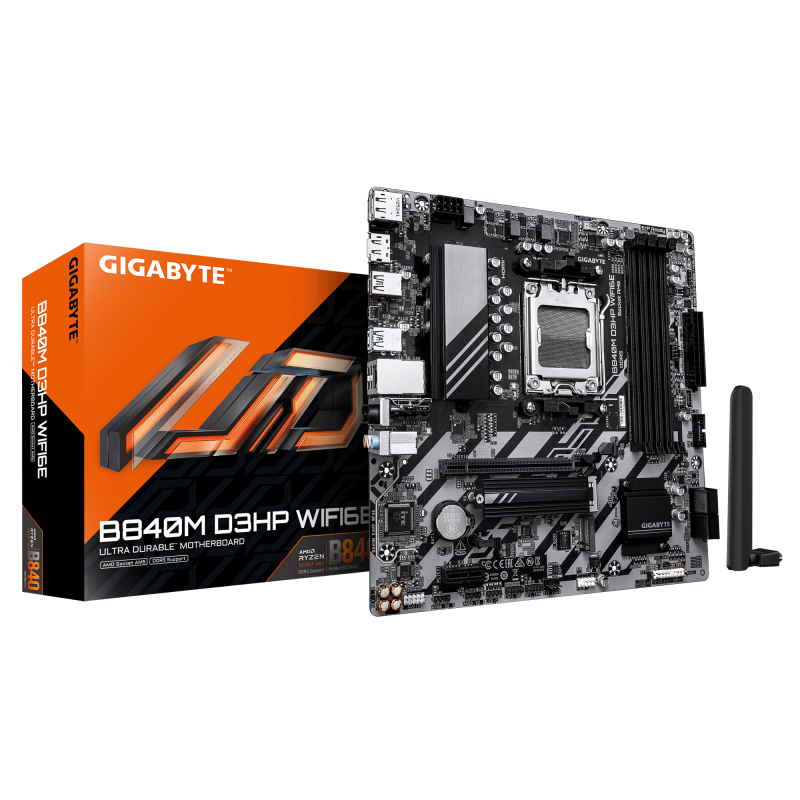

GIGABYTE B840M D3HP WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage

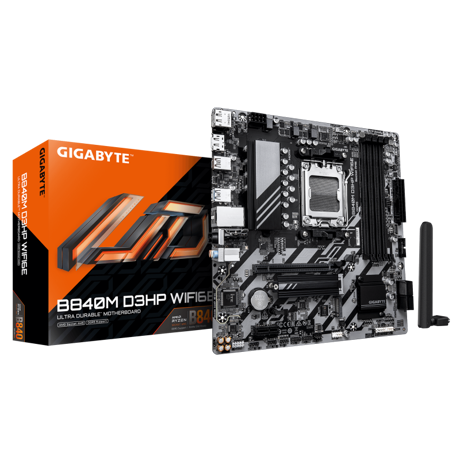

GIGABYTE B840M D3HP WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Lithium weight per battery

0.07 g

Battery capacity

220 mAh

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Bluetooth

Yes

Product colour

Dark brown

Cooling type

Passive

Number of M.2 (M) slots

2

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2580

Motherboard chipset

AMD B840

Power source type

ATX

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

HDCP version

2.3

Parallel processing technology support

Not supported

DirectX version

12.0

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5600,5800 MHz

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

Ethernet interface type

Gigabit Ethernet

LAN controller

Realtek RTL8111H

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Bluetooth version

5.3

WLAN controller model

MediaTek MT7902

Weight

1.09 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Antenna included

Yes

Screws included

Yes

Package height

68 mm

Package width

270 mm

Package depth

268 mm

Package weight

1.18 kg

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPorts quantity

2

USB 2.0 ports quantity

3

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

2

Line-in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of storage drives supported

6

RAID levels

0, 1, 10, 5

Height

35 mm

Width

244 mm

Depth

244 mm
