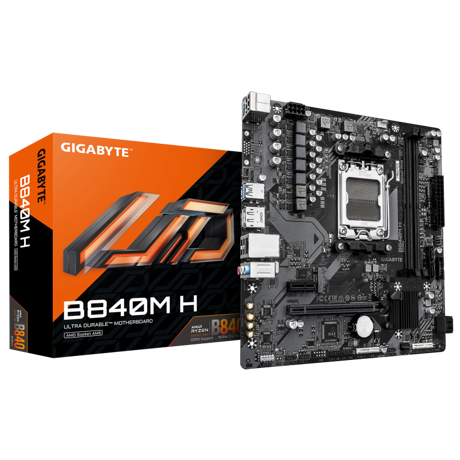

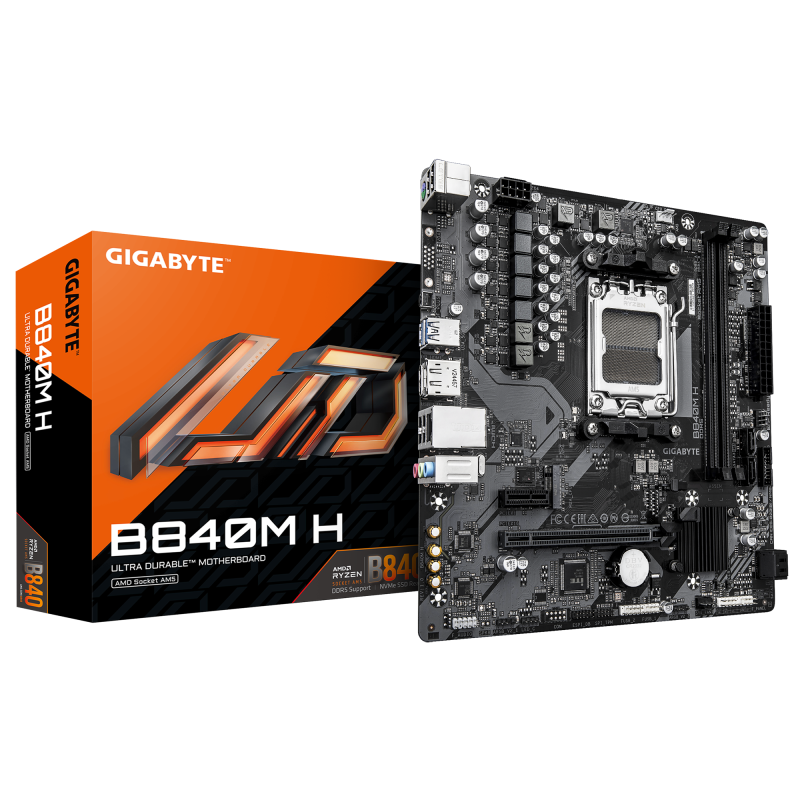

GIGABYTE B840M H. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive

GIGABYTE B840M H. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS flashback button

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2580

Number of M.2 (M) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x1 (Gen 3.x) slots

1

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset

AMD B840

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Maximum resolution

4096 x 2160 pixels

DirectX version

12.0

HDCP version

2.3

Parallel processing technology support

Not supported

HDCP

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Number of RGB LED pin headers

3

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

12V power connector

Yes

Products per shipping (inner) case

1 pc(s)

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

7200 MHz

Supported memory clock speeds

7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory per slot

64 GB

Memory slots type

DIMM

Unbuffered memory

Yes

Number of memory slots

2

Memory channels

Dual-channel

Maximum internal memory

128 GB

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

No

LAN controller

Realtek RTL8111H

Weight

880 g

Bundled software

Norton® Internet Security (OEM version)

Batteries included

Yes

Screws included

Yes

Package height

54 mm

Package width

265 mm

Package depth

265 mm

Package weight

941 g

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPorts quantity

1

HDMI version

2.1

USB 2.0 ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPort version

1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

5

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Height

35 mm

Width

230 mm

Depth

225 mm
