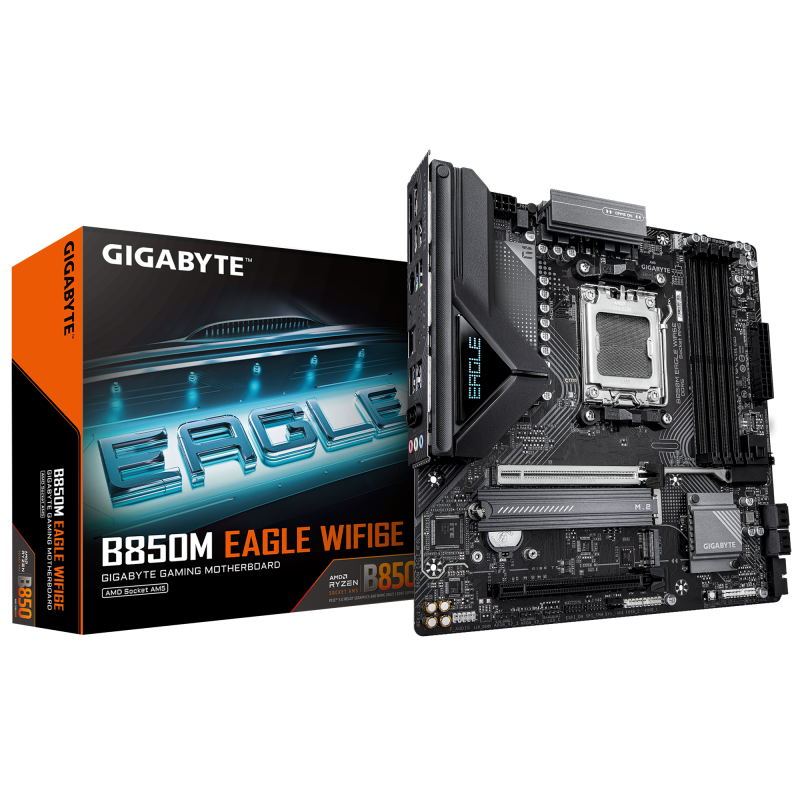

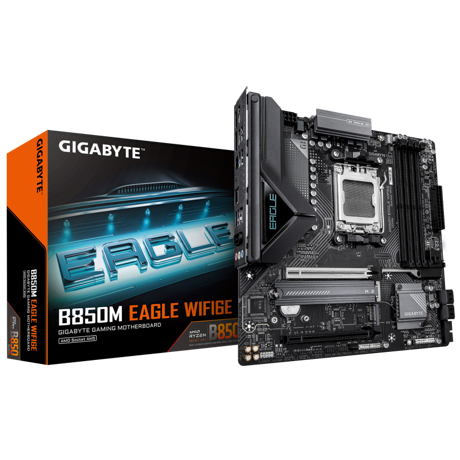

GIGABYTE B850M EAGLE WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Bluetooth

Yes

Product colour

Dark brown

Cooling type

Passive

Number of M.2 (M) slots

2

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard chipset

AMD B850

Power source type

ATX

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Parallel processing technology support

Not supported

HDCP

Yes

HDCP version

2.3

Maximum resolution

4096 x 2160 pixels

DirectX version

12.0

Number of EPS power connectors (8-pin)

1

12V power connector

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Products per shipping (inner) case

1 pc(s)

Country of origin

China

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

8200 MHz

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

WLAN controller model

Realtek RTL8852CE

Bluetooth version

5.3

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Weight

12.6 kg

Bundled software

Norton® Internet Security (OEM version); LAN bandwidth management software

Batteries included

Yes

Antenna included

Yes

Screws included

Yes

Package height

68 mm

Package weight

14.6 kg

Package width

270 mm

Package depth

268 mm

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPorts quantity

2

USB 2.0 ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

DisplayPort version

1.4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

PS/2 ports quantity

1

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

Line-in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Height

35 mm

Width

244 mm

Depth

244 mm
