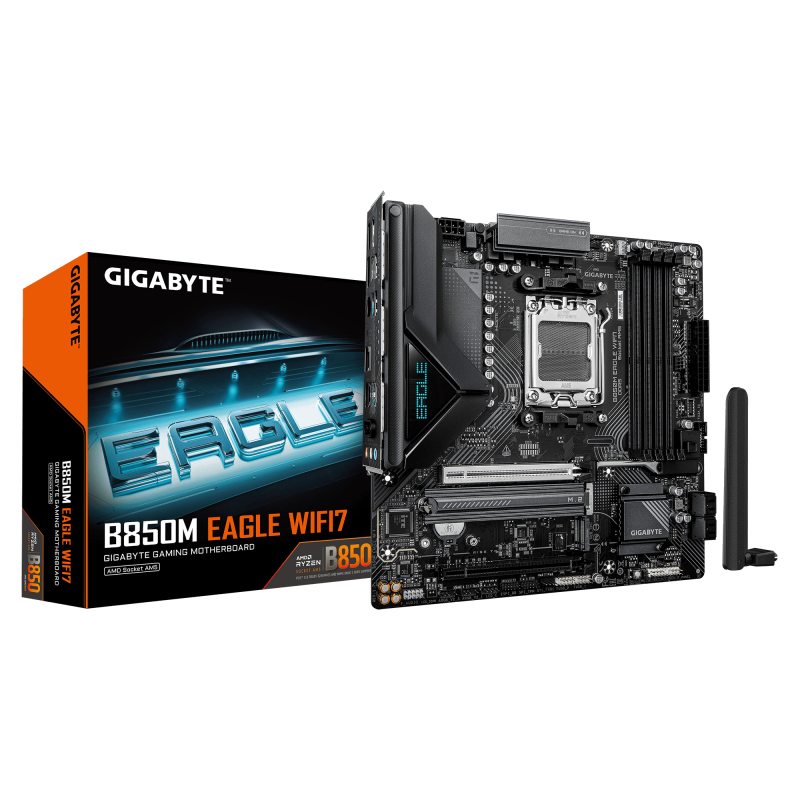

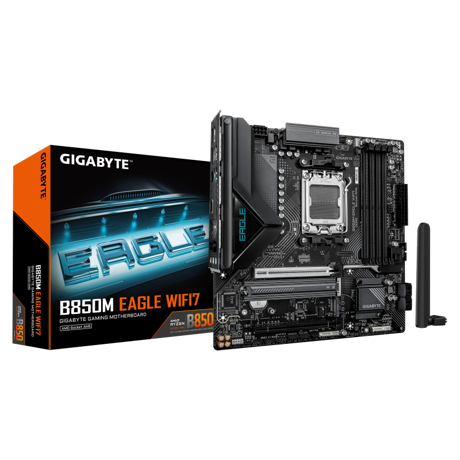

GIGABYTE B850M EAGLE WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage

GIGABYTE B850M EAGLE WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Lithium weight per battery

0.07 g

Battery capacity

220 mAh

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS flashback button

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Bluetooth

Yes

Product colour

Dark brown

Cooling type

Passive

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 3.x) slots

1

Number of M.2 (M) slots

2

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 11 x64

Motherboard chipset

AMD B850

Power source type

ATX

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

HDCP

Yes

HDCP version

2.3

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

DirectX version

12.0

12V power connector

Yes

Number of EPS power connectors (8-pin)

1

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600 MHz

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

8200 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Ethernet LAN

Yes

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet interface type

2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

LAN controller

Realtek RTL8125

WLAN controller model

Realtek RTL8922AE

Bluetooth version

5.4

Weight

1.26 kg

Batteries included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version)

Screws included

Yes

Package weight

1.46 kg

Package height

68 mm

Package width

270 mm

Package depth

268 mm

Warranty period

3 year(s)

DisplayPorts quantity

2

USB 2.0 ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI version

2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

DisplayPort version

1.4

DVI-D ports quantity

0

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Microphone in

Yes

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

WiFi-AP antenna jack

2

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

RAID support

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Number of storage drives supported

6

Height

35 mm

Width

244 mm

Depth

244 mm
