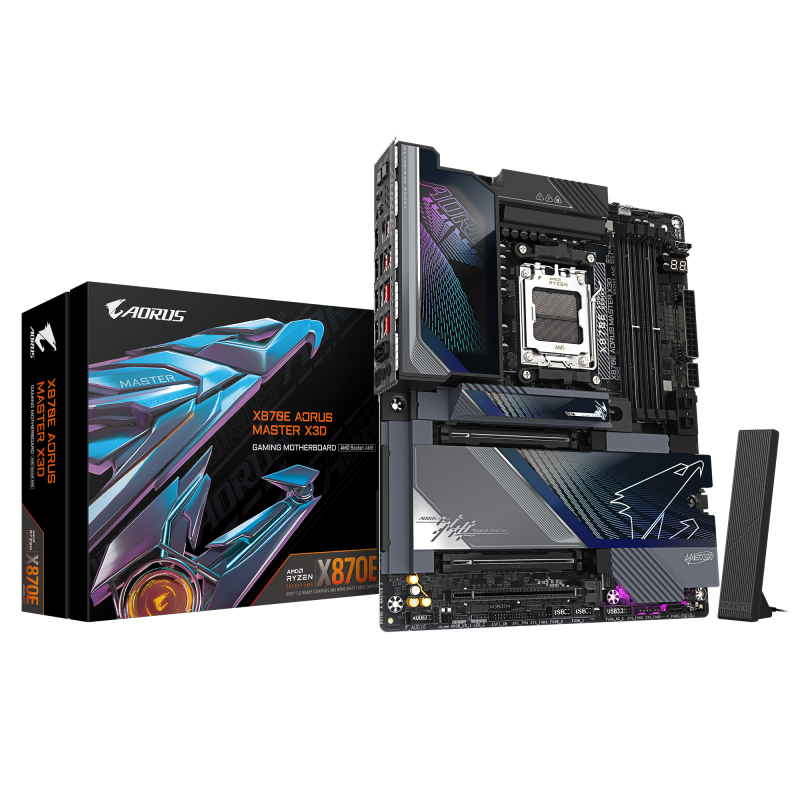

GIGABYTE X870E AORUS MASTER X3D. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported

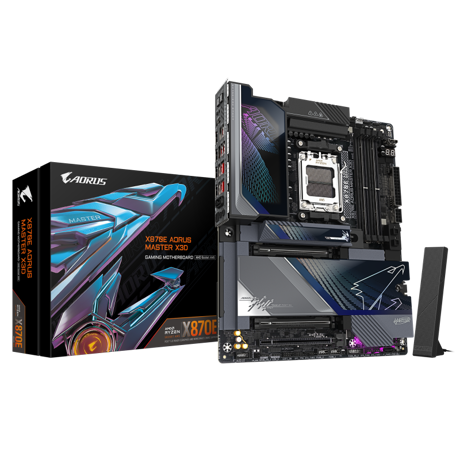

GIGABYTE X870E AORUS MASTER X3D. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Lithium weight per battery

0.07 g

Battery capacity

220 mAh

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS memory size

512 Mbit

Clear CMOS button

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Bluetooth

Yes

Product colour

Black

Cooling type

Passive

PCI Express x16 (Gen 4.x) slots

1

1st M.2 highest PCI Express generation

5.0

3rd M.2 highest PCI Express generation

4.0

5th M.2 largest key size

2280

5th M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2580

Number of M.2 (M) slots

5

2nd M.2 largest key size

2280

3rd M.2 largest key size

2280

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 5.x) slots

2

2nd M.2 highest PCI Express generation

5.0

Motherboard chipset family

AMD

Motherboard chipset

AMD X870E

Power source type

ATX

PC health monitoring

CPU, Fan, Temperature, Voltage, Water cooling

Audio Chip

Realtek ALC1220-VB/ESS 9118

Motherboard form factor

ATX

Windows operating systems supported

Windows 11 x64

Audio output channels

7.1 channels

Component for

PC

HDCP

Yes

HDCP version

2.3

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2304 pixels

USB 3.2 Gen 2x2 connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Number of SATA III connectors

2

Number of RGB LED pin headers

5

Number of temperature sensor headers

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of chassis fan connectors

6

Chassis intrusion connector

Yes

Country of origin

Taiwan

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

9000 MHz

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Ethernet LAN

Yes

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Ethernet interface type

2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

LAN controller

Realtek RTL8126, Realtek RTL8127

WLAN controller model

MediaTek MT7927

Bluetooth version

5.4

Weight

3.78 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Screws included

Yes

Antenna included

Yes

Package width

340 mm

Package height

92 mm

Package depth

310 mm

Package weight

4.33 kg

Warranty period

3 year(s)

DVI-D ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

7

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

DisplayPort version

1.4

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

USB4 Gen 2x2 ports quantity

2

Headphone outputs

1

Ethernet LAN (RJ-45) ports

2

WiFi-AP antenna jack

2

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

S/PDIF out port

Yes

Digital audio optical out

1

VGA (D-Sub) ports quantity

0

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Number of HDDs supported

2

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Height

35 mm

Width

305 mm

Depth

244 mm
