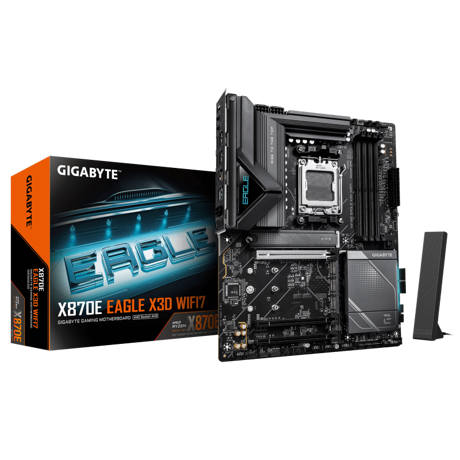

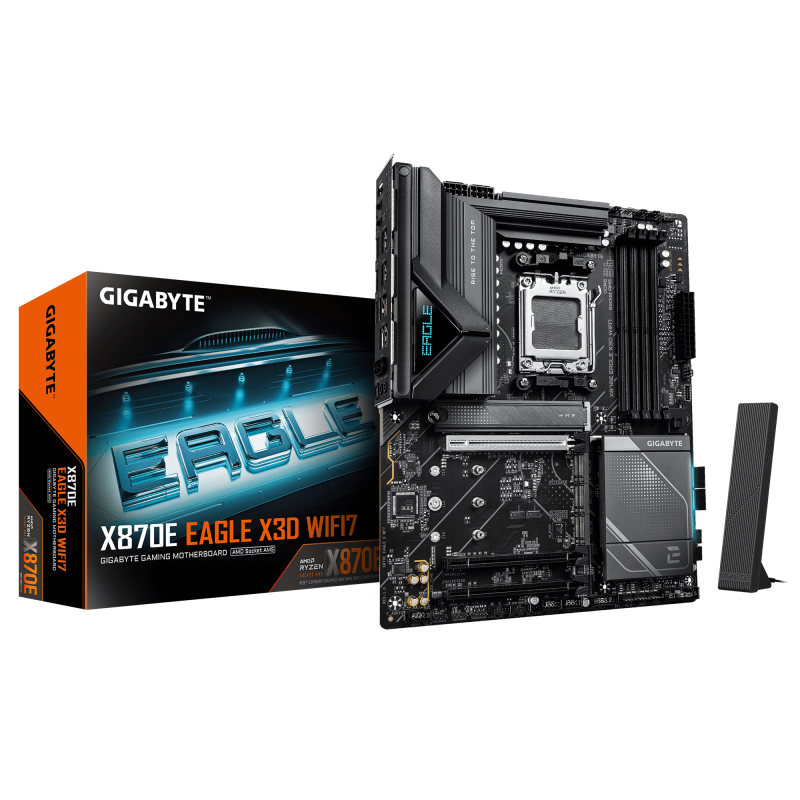

GIGABYTE X870E EAGLE X3D WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage

GIGABYTE X870E EAGLE X3D WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Lithium weight per battery

0.07 g

Battery capacity

220 mAh

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS memory size

512 Mbit

Clear CMOS button

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Bluetooth

Yes

Product colour

Black

Cooling type

Passive

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 3.x) slots

1

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

Number of M.2 (M) slots

4

4th M.2 highest PCI Express generation

4.0

4th M.2 largest key size

22110

Audio Chip

Realtek ALC1220-VB

Motherboard chipset

AMD X870E

Power source type

ATX

PC health monitoring

CPU, Fan, Temperature, Voltage, Water cooling

Motherboard form factor

ATX

Windows operating systems supported

Windows 11 x64

Motherboard chipset family

AMD

Audio output channels

7.1 channels

Component for

PC

HDCP

Yes

HDCP version

2.3

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2304 pixels

USB 3.2 Gen 2x2 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Number of temperature sensor headers

2

Number of water pump connectors

3

Number of chassis fan connectors

6

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz

Supported memory clock speed (max)

9000 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

ECC сompatibility

Non-ECC

Memory channels

Dual-channel

Ethernet LAN

Yes

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

LAN controller

Realtek RTL8126

Bluetooth version

5.4

WLAN controller model

Qualcomm QCNCM865

Ethernet interface type

2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Weight

2.01 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Screws included

Yes

Antenna included

Yes

Package weight

2.21 kg

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Warranty period

3 year(s)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

DisplayPort version

1.4

HDMI version

2.1

USB 2.0 ports quantity

0

HDMI ports quantity

1

DVI-D ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor manufacturer

AMD

Digital audio optical out

1

VGA (D-Sub) ports quantity

0

Line-in

Yes

S/PDIF out port

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

WiFi-AP antenna jack

2

USB4 Gen 2x2 ports quantity

2

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

8

RAID support

Yes

Supported storage drive types

HDD & SSD

Height

35 mm

Width

305 mm

Depth

244 mm
