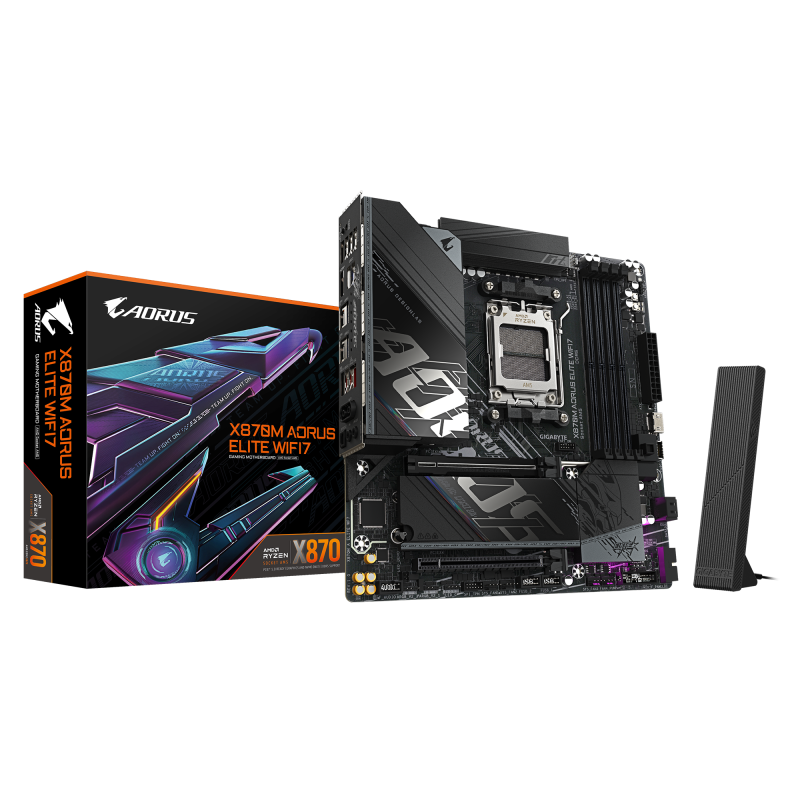

GIGABYTE X870M AORUS ELITE WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported

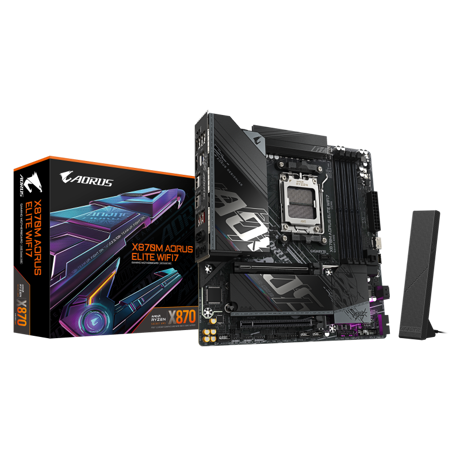

GIGABYTE X870M AORUS ELITE WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 7 (802.11be)

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Clear CMOS button

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Bluetooth

Yes

Product colour

Black

Cooling type

Passive

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

Motherboard chipset

AMD X870

Audio Chip

Realtek ALC1220-VB

Power source type

ATX

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 11 x64

Audio output channels

7.1 channels

Component for

PC

HDCP

Yes

DirectX version

12.0

Parallel processing technology support

Not supported

Maximum resolution

4096 x 2160 pixels

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Number of SATA III connectors

2

Number of EPS power connectors (8-pin)

1

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz

Memory channels

Dual-channel

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

WLAN controller model

Realtek RTL8922AE

Ethernet LAN

Yes

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi standards

Wi-Fi 7 (802.11be)

Bluetooth version

5.4

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Antenna included

Yes

Screws included

Yes

Package width

270 mm

Package depth

268 mm

Package weight

2.06 kg

Package height

68 mm

Warranty period

3 year(s)

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

DisplayPort version

1.4

HDMI version

2.1

HDMI ports quantity

1

DVI-D ports quantity

0

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB4 Gen 3x2 ports quantity

2

Line-in

Yes

Digital audio optical out

1

VGA (D-Sub) ports quantity

0

S/PDIF out port

Yes

WiFi-AP antenna jack

2

RAID levels

0, 1, 5, 10

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

2

Number of storage drives supported

4

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Height

35 mm

Width

244 mm

Depth

244 mm
