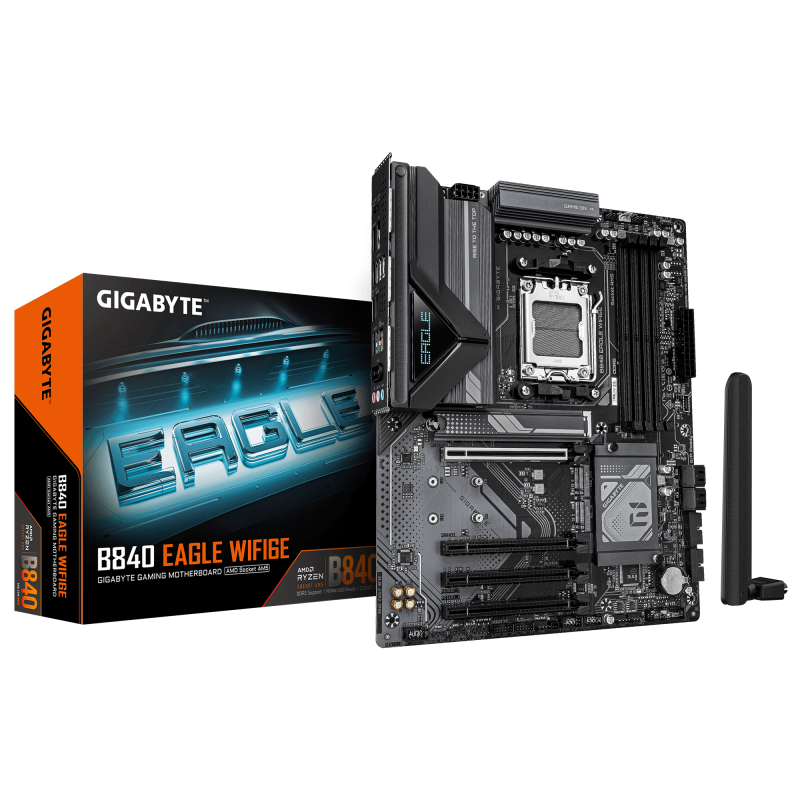

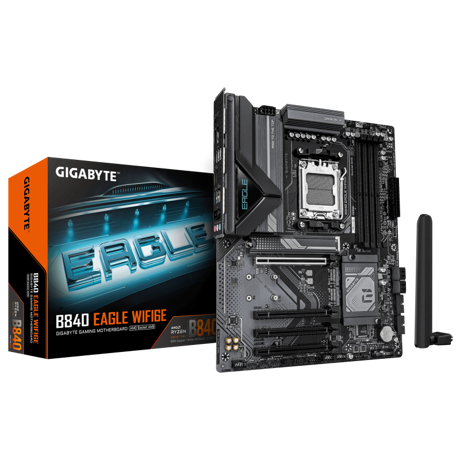

MB GIGABYTE B840M EAGLE WIFI 6E

MB GIGABYTE B840M EAGLE WIFI 6E

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Lithium weight per battery

0.07 g

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Clear CMOS button

Yes

Product colour

Dark brown

Cooling type

Passive

2nd M.2 largest key size

25110

3rd M.2 largest key size

25110

1st M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

3.0

PCI Express x16 (Gen 3.x) slots

3

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

3

1st M.2 largest key size

25110

2nd M.2 highest PCI Express generation

4.0

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard chipset family

AMD

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Power source type

ATX

Motherboard chipset

AMD B840

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Parallel processing technology support

Not supported

HDCP version

2.3

HDCP

Yes

Maximum resolution

4096 x 2160 pixels

DirectX version

12.0

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

12V power connector

Yes

Number of EPS power connectors (8-pin)

1

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Memory channels

Dual-channel

Supported memory clock speed (max)

8200 MHz

ECC сompatibility

Non-ECC

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz

Bluetooth

Yes

Bluetooth version

5.3

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

WLAN controller model

Realtek RTL8852CE

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Weight

1.64 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Antenna included

Yes

Screws included

Yes

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

1.87 kg

USB 2.0 ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI version

2.1

HDMI ports quantity

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor manufacturer

AMD

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

Line-in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

Supported storage drive interfaces

M.2, PCI Express 3.0, PCI Express 4.0, SATA III

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Warranty period

3 year(s)

Height

3.5 mm

Width

305 mm

Depth

244 mm

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No

PCI-Ex1

0

RAM-Slots

4

MB-Format

micro-ATX

MB-Socket

AM5

PCI-Ex16

2
