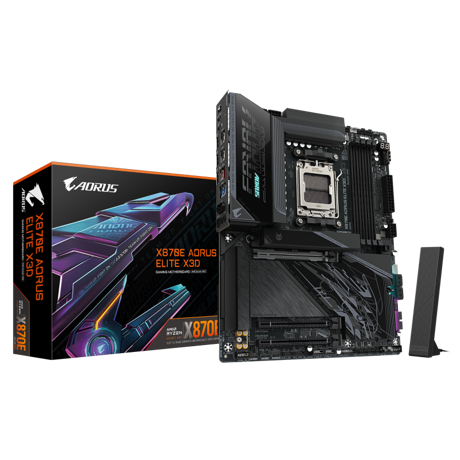

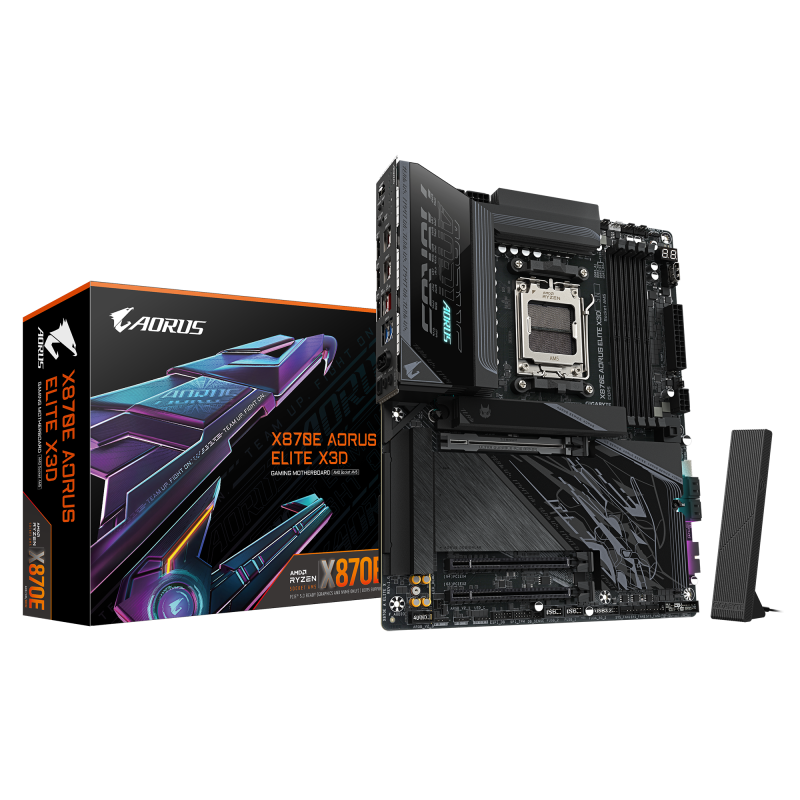

MB GIGABYTE X870E A ELITE X

MB GIGABYTE X870E A ELITE X

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Clear CMOS button

Yes

BIOS memory size

512 Mbit

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Black

Number of M.2 (M) slots

4

4th M.2 highest PCI Express generation

4.0

2nd M.2 highest PCI Express generation

5.0

4th M.2 largest key size

22110

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

Motherboard chipset family

AMD

Motherboard form factor

ATX

Windows operating systems supported

Windows 11 x64

Audio output channels

7.1 channels

Component for

PC

Audio Chip

Realtek ALC1220-VB

Motherboard chipset

AMD X870E

Power source type

ATX

PC health monitoring

CPU, Fan, Temperature, Voltage, Water cooling

Maximum resolution

4096 x 2304 pixels

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

USB 3.2 Gen 2x2 connectors

1

Number of chassis fan connectors

6

Number of water pump connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of temperature sensor headers

2

Products per shipping (inner) case

1 pc(s)

Country of origin

China

Supported memory clock speeds

9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz

Supported memory clock speed (max)

9000 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-FI

Yes

LAN controller

Realtek RTL8126

WLAN controller model

Qualcomm QCNCM865

Bluetooth

Yes

Bluetooth version

5.4

Ethernet interface type

2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Weight

2.98 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Screws included

Yes

Antenna included

Yes

Package width

345 mm

Package depth

294 mm

Package weight

3.41 kg

Package height

80 mm

DVI-D ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

5

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

0

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

2.1

HDMI ports quantity

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

USB4 Gen 2x2 ports quantity

2

Headphone outputs

1

Ethernet LAN (RJ-45) ports

1

WiFi-AP antenna jack

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

S/PDIF out port

Yes

Digital audio optical out

1

VGA (D-Sub) ports quantity

0

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

8

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Warranty period

3 year(s)

Height

35 mm

Width

305 mm

Depth

244 mm

MB-Format

ATX

PCI-Ex1

0

PCI-Ex16

3

RAM-Slots

4

MB-Socket

AM5

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
