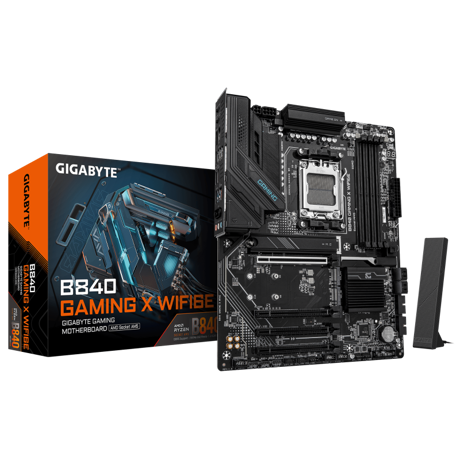

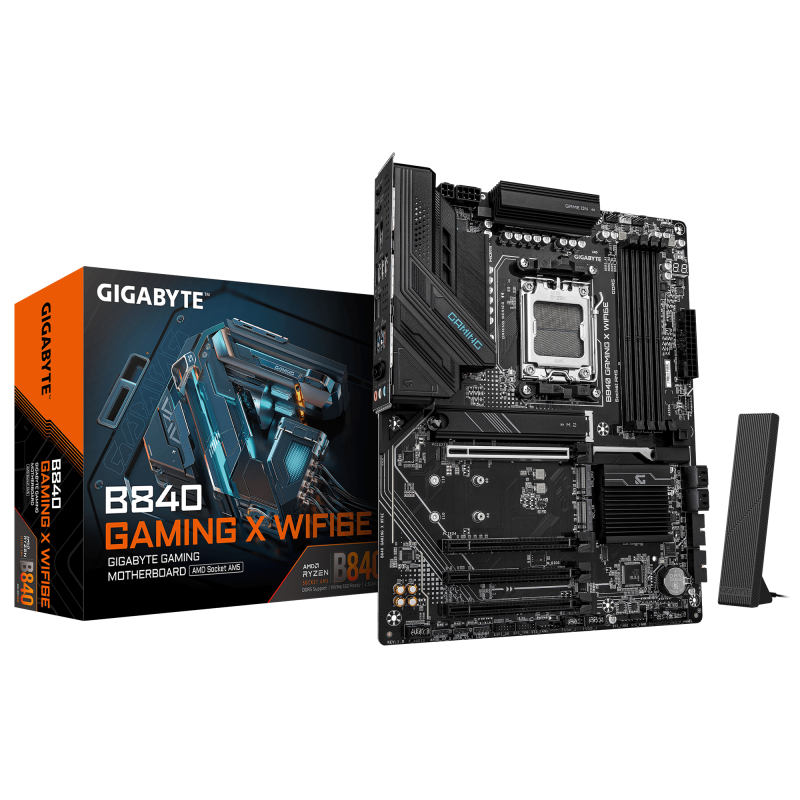

MB Gigabyte B840 GAMING X WIFI6E

MB Gigabyte B840 GAMING X WIFI6E

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Clear CMOS button

Yes

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

2nd M.2 largest key size

25110

3rd M.2 largest key size

25110

1st M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

3.0

PCI Express x16 (Gen 3.x) slots

3

Number of M.2 (M) slots

3

1st M.2 largest key size

25110

2nd M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 4.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

AMD

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Motherboard chipset

AMD B840

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

HDCP version

2.3

Parallel processing technology support

Not supported

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Number of EPS power connectors (8-pin)

1

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

12V power connector

Yes

Peripheral (Molex) power connectors (4-pin)

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800 MHz

Supported memory clock speed (max)

7600 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

WLAN controller model

Realtek RTL8852CE

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Bluetooth

Yes

Bluetooth version

5.3

Weight

16.6 kg

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Antenna included

Yes

Screws included

Yes

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

1.89 kg

DVI-D ports quantity

0

DisplayPorts quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

HDMI ports quantity

1

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

Number of storage drives supported

7

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, PCI Express 3.0, PCI Express 4.0, SATA III

Warranty period

3 year(s)

Height

35 mm

Width

305 mm

Depth

244 mm

MB-Format

ATX

RAM-Slots

4

PCI-Ex1

2

MB-Socket

AM5

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex16

1

Onboard-CPU

No
