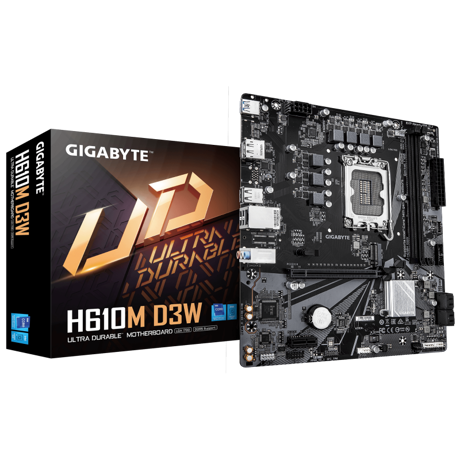

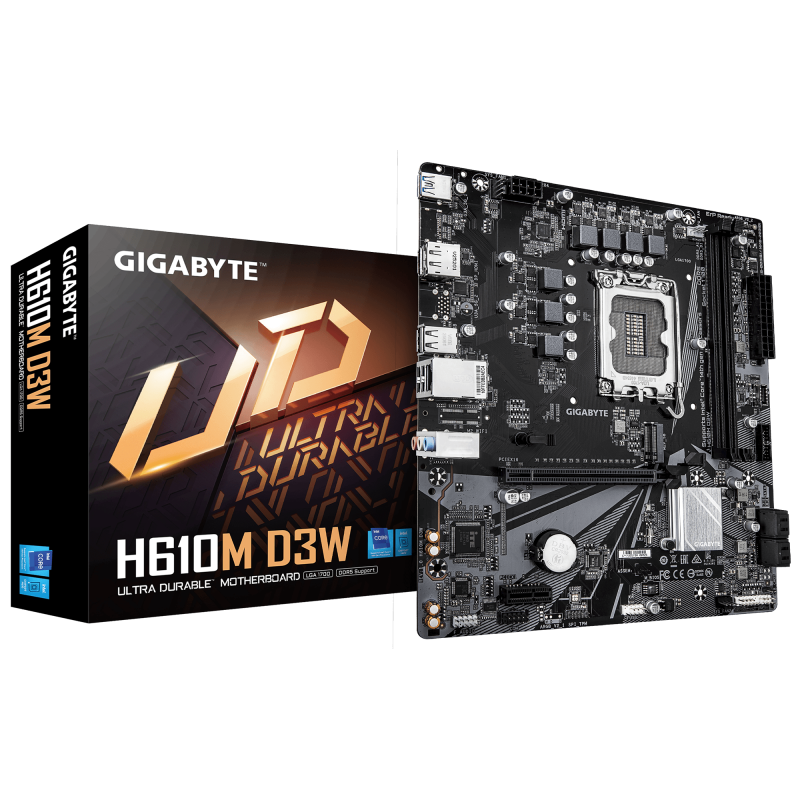

PLaca de baza GIGABYTE H610M D3W

PLaca de baza GIGABYTE H610M D3W

Lithium weight per battery

0.07 g

Battery capacity

200 mAh

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS memory size

128 Mbit

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

3.0

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Motherboard chipset

Intel H610

Motherboard form factor

micro ATX

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

HDCP

Yes

HDCP version

2.3

Front panel connector

Yes

TPM connector

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Number of CPU fan connectors

1

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

Number of EPS power connectors (8-pin)

1

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

5600 MHz

Supported memory clock speeds

4400,4800,5200,5600 MHz

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Number of memory slots

2

Maximum internal memory

128 GB

LAN controller

Realtek RTL8111H

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

No

Weight

742 g

Bundled software

Norton® Internet Security (OEM version)

Batteries included

Yes

Screws included

Yes

Package height

54 mm

Package width

265 mm

Package depth

265 mm

Package weight

821 g

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPort version

1.2

DisplayPorts quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

Number of storage drives supported

5

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Height

35 mm

Width

244 mm

Depth

220 mm

MB-Socket

1700

MB-Format

micro-ATX

RAM-Slots

2

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
