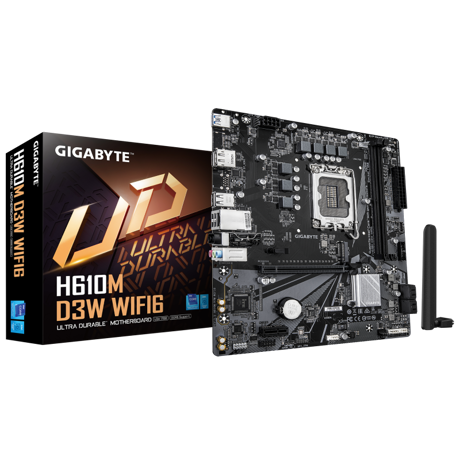

PLaca de baza GIGABYTE H610M D3W WIFI6

PLaca de baza GIGABYTE H610M D3W WIFI6

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Cooling type

Passive

Product colour

Dark brown

1st M.2 highest PCI Express generation

3.0

1st M.2 largest key size

2280

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard chipset

Intel H610

Motherboard form factor

micro ATX

Power source type

ATX

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

HDCP

Yes

HDCP version

2.3

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Number of CPU fan connectors

1

USB 2.0 connectors

1

Number of RGB LED pin headers

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

Number of EPS power connectors (8-pin)

1

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

5600 MHz

Supported memory clock speeds

4400,4800,5200,5600 MHz

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Number of memory slots

2

Maximum internal memory

128 GB

LAN controller

Realtek RTL8111H

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

Yes

Bluetooth version

5.3

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN controller model

Realtek RTL8851BE

Bluetooth

Yes

Weight

742 g

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version)

Antenna included

Yes

Screws included

Yes

Package height

68 mm

Package weight

938 g

Package width

270 mm

Package depth

268 mm

Warranty period

3 year(s)

DVI-D ports quantity

0

DisplayPort version

1.2

DisplayPorts quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

HDMI ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

Number of storage drives supported

5

Depth

220 mm

Height

35 mm

Width

244 mm

MB-Socket

1700

MB-Format

micro-ATX

RAM-Slots

2

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
