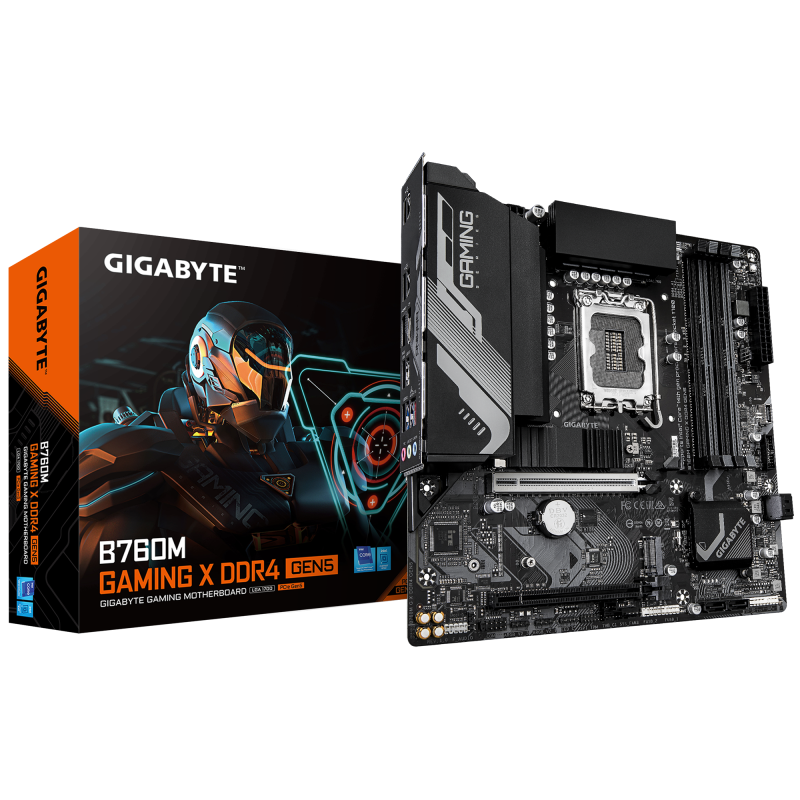

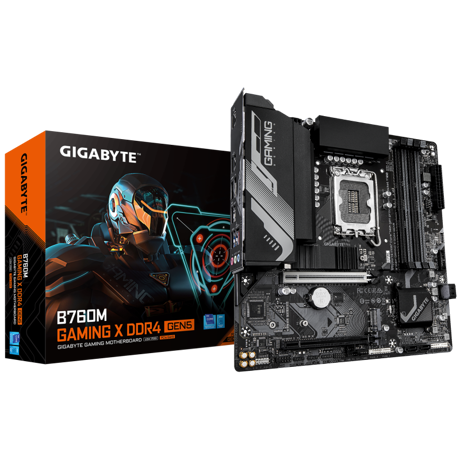

PLaca de baza Gigabyte B760M GAMING X DDR4 LGA1700

PLaca de baza Gigabyte B760M GAMING X DDR4 LGA1700

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Cooling type

Passive

Product colour

Dark brown

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

2

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset

Intel B760

Power source type

ATX

Maximum resolution

4096 x 2304 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Thunderbolt headers

2

12V power connector

Yes

Serial port headers

1

Number of chassis fan connectors

3

S/PDIF out connector

Yes

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

3200,3000,2933,2666,2400,2133 MHz

Supported memory clock speed (max)

3200 MHz

Maximum internal memory per slot

32 GB

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Maximum internal memory

128 GB

Ethernet LAN

Yes

Wi-FI

No

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Weight

1.19 kg

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Package height

68 mm

Package width

270 mm

Package depth

268 mm

Package weight

1.6 kg

Warranty period

3 year(s)

DVI-D ports quantity

0

USB 2.0 ports quantity

5

DisplayPorts quantity

1

DisplayPort version

1.2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of storage drives supported

6

Height

35 mm

Width

244 mm

Depth

244 mm

MB-Socket

1700

PCI-Ex1

0

RAM-Slots

4

MB-Format

micro-ATX

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex16

1

Onboard-CPU

No
