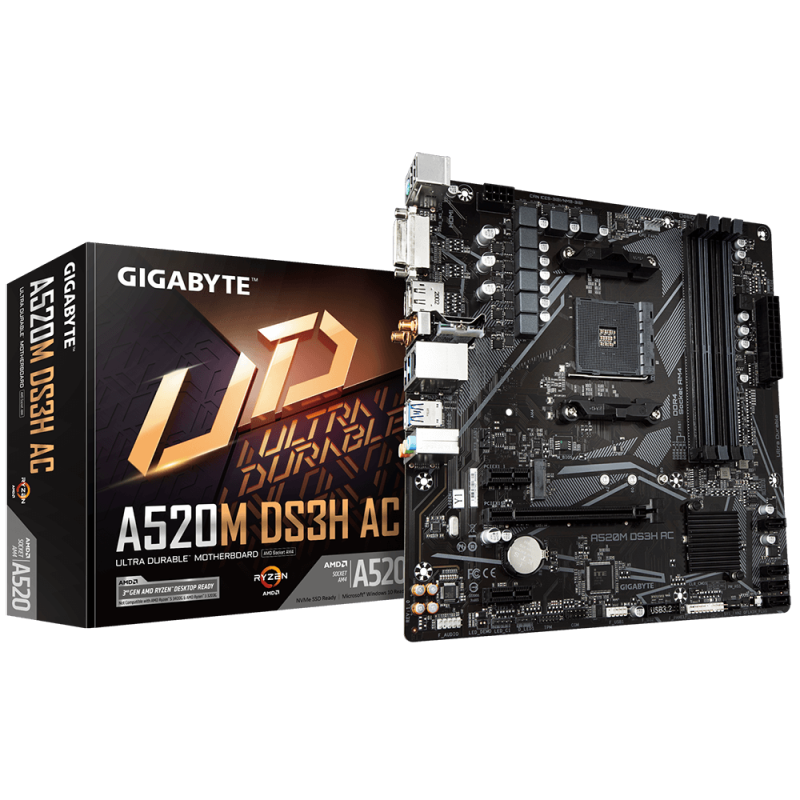

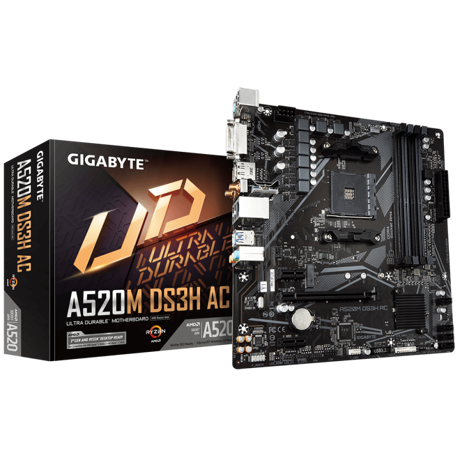

Placa de Baza GIGABYTE A520M DS3H AC AM4, 4x DDR4, 1x PCIE 3.0 x16 2x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX

Placa de Baza GIGABYTE A520M DS3H AC AM4, 4x DDR4, 1x PCIE 3.0 x16 2x PCIE 3.0 x1, 1x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Number of M.2 (M) slots

1

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 3.x) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

3.0

PC health monitoring

Fan, Temperature, Voltage

Motherboard chipset

AMD A520

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Power source type

ATX

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11

Parallel processing technology support

Not supported

Maximum resolution

5120 x 2880 pixels

HDCP

Yes

Discrete graphics support

Yes

Number of displays supported

3

Number of CPU fan connectors

1

Number of RGB LED pin headers

2

Total number of SATA connectors

4

12V power connector

Yes

Number of EPS power connectors (8-pin)

1

USB 2.0 connectors

1

Serial port headers

1

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

4733 MHz

Maximum internal memory per slot

32 GB

Supported memory clock speeds

2133,2400,2667,2933,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4400,4733 MHz

ECC сompatibility

ECC & Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Supported memory types

DDR4-SDRAM

Maximum internal memory

128 GB

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-FI

Yes

Ethernet interface type

Gigabit Ethernet

WLAN controller model

Intel Dual Band Wireless-AC 3168

Bluetooth version

4.2

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Weight

720 g

Batteries included

Yes

Antenna included

Yes

Screws included

Yes

Package height

68 mm

Package width

270 mm

Package depth

268 mm

Package weight

1.21 kg

DVI-D ports quantity

1

DisplayPorts quantity

1

HDMI ports quantity

1

DisplayPort version

1.4

HDMI version

2.1

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Processor socket

Socket AM4

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen Threadripper 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series

Maximum number of SMP processors

1

Supported processor sockets

Socket AM4

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

2

PS/2 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 10

Number of storage drives supported

5

Warranty period

3 year(s)

Height

35 mm

Width

244 mm

Depth

244 mm

RAM-Slots

4

MB-Format

micro-ATX

MB-Socket

AM4

PCI-Ex1

2

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex16

1

Onboard-CPU

No
