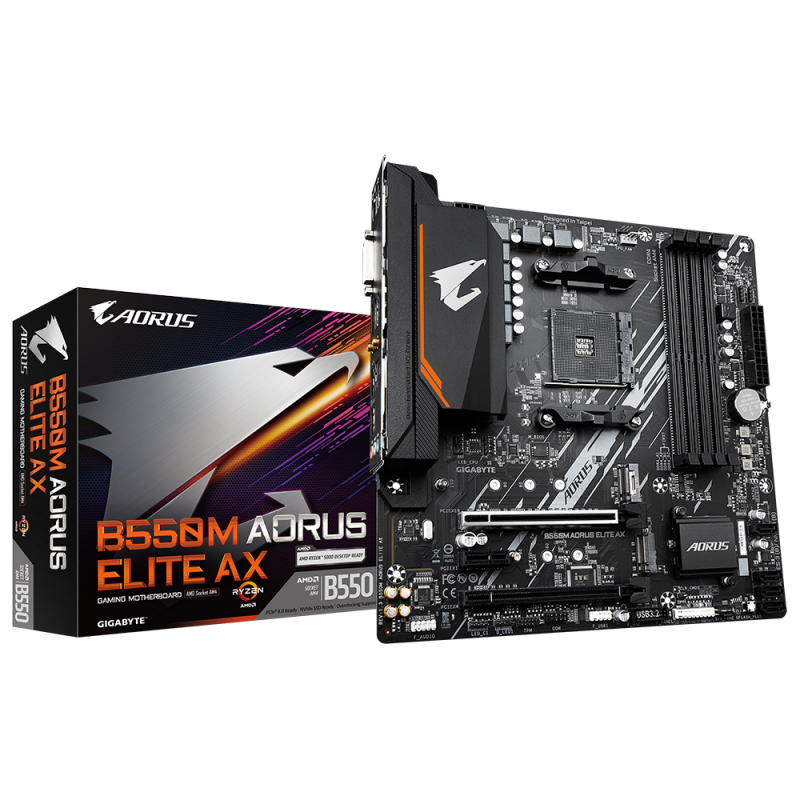

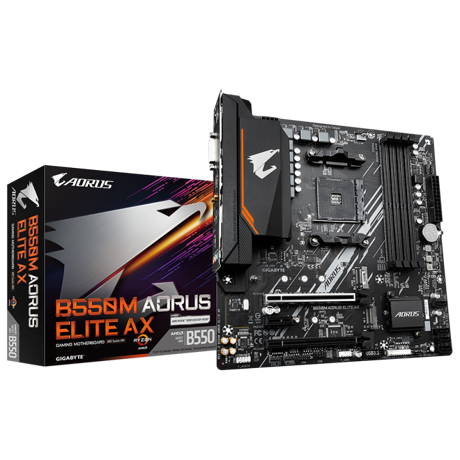

Placa de Baza GIGABYTE B550M AORUS ELITE AX AM4, 4x DDR4, 1x DVI-D 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x4 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza GIGABYTE B550M AORUS ELITE AX AM4, 4x DDR4, 1x DVI-D 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x4 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS memory size

128 Mbit

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Brown

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

22110

2nd M.2 highest PCI Express generation

3.0

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

AMD B550

Windows operating systems supported

Windows 10 x64, Windows 11 x64

PC health monitoring

Fan, Temperature, Voltage

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Power source type

ATX

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

USB 2.0 connectors

1

Number of RGB LED pin headers

5

Front panel connector

Yes

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Serial port headers

1

12V power connector

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Maximum internal memory per slot

32 GB

Supported memory clock speed (max)

4733 MHz

Supported memory clock speeds

4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

ECC сompatibility

ECC & Non-ECC

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Maximum internal memory

128 GB

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

Yes

WLAN controller model

Realtek RTL8852CE

LAN controller

Realtek RTL8111H

Screws included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Package height

65 mm

Package width

265 mm

Package depth

265 mm

Package weight

1.27 kg

DVI-D ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

AMD

Processor socket

Socket AM4

Maximum number of SMP processors

1

Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Supported processor sockets

Socket AM4

Microphone in

Yes

Headphone outputs

1

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

Line-in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

RAID support

Yes

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Number of storage drives supported

6

RAID levels

0, 1, 10

Warranty period

3 year(s)

Height

35 mm

Width

244 mm

Depth

244 mm

RAM-Slots

4

MB-Format

micro-ATX

MB-Socket

AM4

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
