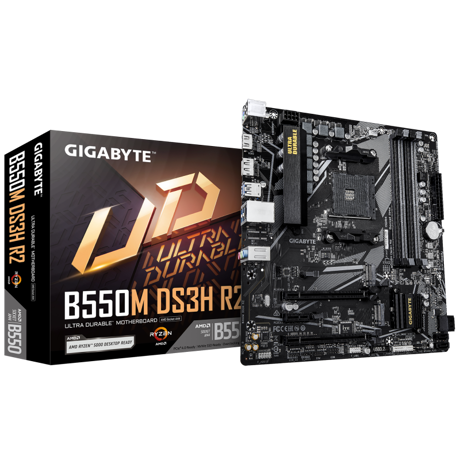

Placa de Baza GIGABYTE B550M DS3H R2 AM4, 4x DDR4, 1x DP 1x HDMI, 2x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza GIGABYTE B550M DS3H R2 AM4, 4x DDR4, 1x DP 1x HDMI, 2x PCIE 4.0 x16 1x PCIE 3.0 x1, 2x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

Product colour

Dark brown

Cooling type

Passive

Number of M.2 (M) slots

2

PCI Express x16 (Gen 3.x) slots

1

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

2nd M.2 highest PCI Express generation

3.0

Audio Chip

Realtek ALC1220-VB

PC health monitoring

Fan, Temperature, Voltage

Power source type

ATX

Audio output channels

7.1 channels

Component for

PC

Motherboard chipset

AMD B550

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Maximum resolution

5120 x 2880 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

HDCP

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

5

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Products per shipping (inner) case

1 pc(s)

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

32 GB

Supported memory clock speeds

4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz

Supported memory clock speed (max)

4733 MHz

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Maximum internal memory

128 GB

Ethernet LAN

Yes

Wi-FI

No

LAN controller

Realtek RTL8111H

Ethernet interface type

Gigabit Ethernet

Weight

870 g

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Screws included

Yes

Package height

54 mm

Package width

265 mm

Package depth

265 mm

Package weight

947 g

DVI-D ports quantity

0

DisplayPorts quantity

1

HDMI ports quantity

1

DisplayPort version

1.4

HDMI version

2.1

USB 2.0 ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

Processor manufacturer

AMD

Processor socket

Socket AM4

Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Supported processor sockets

Socket AM4

Microphone in

Yes

Headphone outputs

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

RAID support

Yes

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 3.0, PCI Express 4.0, SATA III

Number of storage drives supported

6

RAID levels

0, 1, 10

Number of HDDs supported

4

Warranty period

3 year(s)

Height

35 mm

Width

244 mm

Depth

244 mm

PCI-Ex16

2

RAM-Slots

4

MB-Format

micro-ATX

MB-Socket

AM4

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex1

1

Onboard-CPU

No
