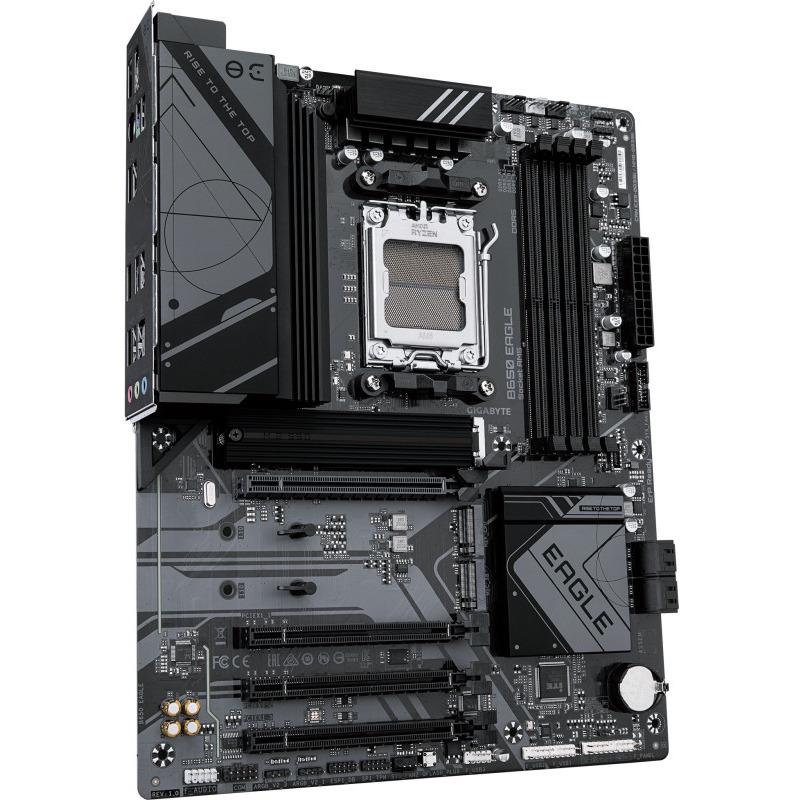

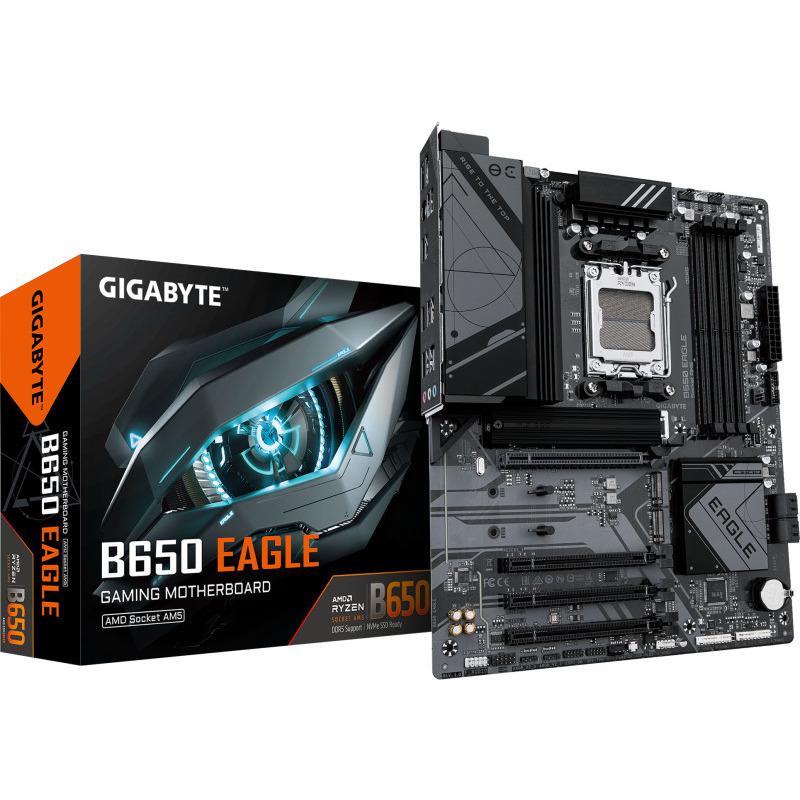

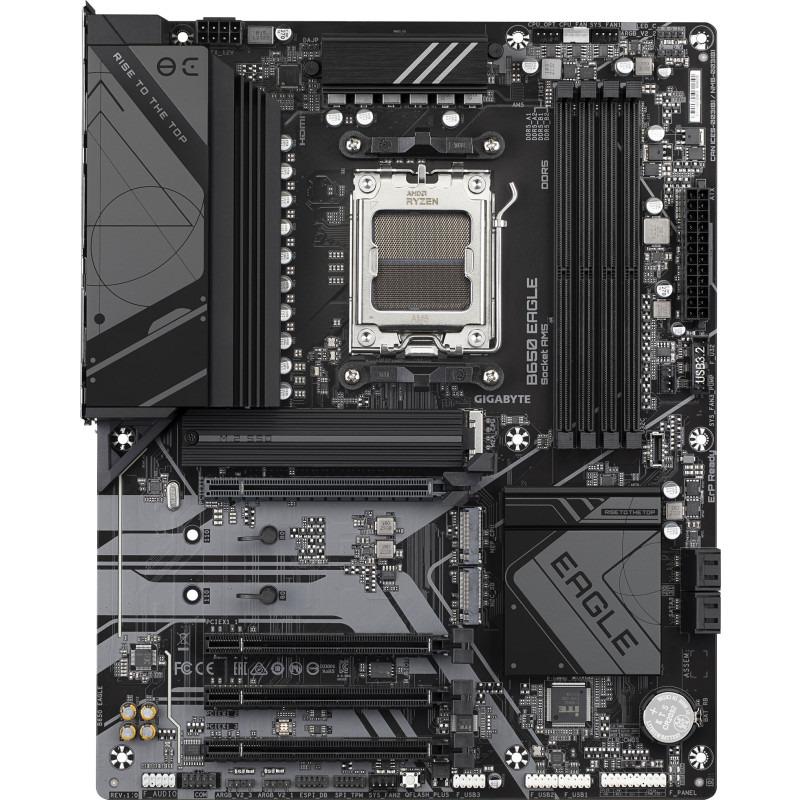

Placa de Baza GIGABYTE B650 EAGLE AM5

Placa de Baza GIGABYTE B650 EAGLE AM5, 4x DDR5, 1x DP 1x HDMI, 4x PCIE x16, 3x M.2, 4x SATA 6GB/s, ATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Brown

PCI Express x16 (Gen 3.x) slots

3

Number of M.2 (M) slots

3

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 4.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Power source type

ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Discrete graphics support

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

HDCP

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

12V power connector

Yes

USB 2.0 connectors

3

Number of chassis fan connectors

3

Serial port headers

1

Country of origin

China

Supported memory clock speeds

4400,4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz

Supported memory clock speed (max)

7600 MHz

ECC сompatibility

Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Memory channels

Dual-channel

Ethernet LAN

Yes

Ethernet interface type

Gigabit Ethernet

Wi-FI

No

LAN controller

Realtek RTL8111H

Screws included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Package weight

1.82 kg

Package width

335 mm

Package depth

270 mm

Package height

80 mm

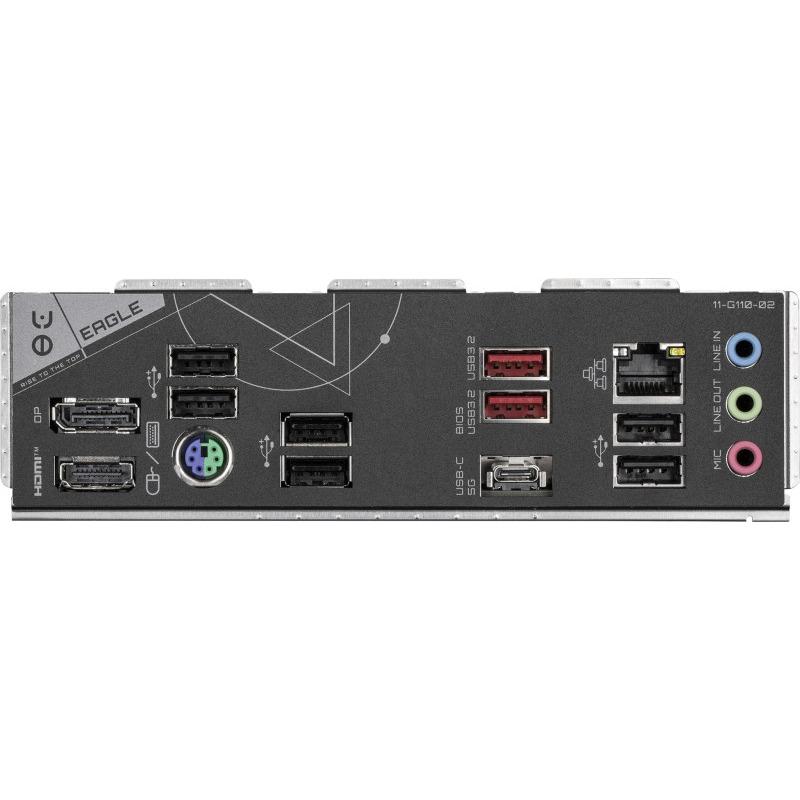

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

DisplayPort version

1.4

HDMI version

2.1

HDMI ports quantity

1

USB 2.0 ports quantity

6

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor manufacturer

AMD

PS/2 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Line-in

Yes

VGA (D-Sub) ports quantity

0

Microphone in

Yes

Headphone outputs

1

RAID levels

0, 1, 10

Supported storage drive types

HDD & SSD

RAID support

Yes

Supported storage drive interfaces

M.2, SATA III

Number of HDDs supported

4

Number of storage drives supported

7

Height

35 mm

Width

305 mm

Depth

244 mm

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
