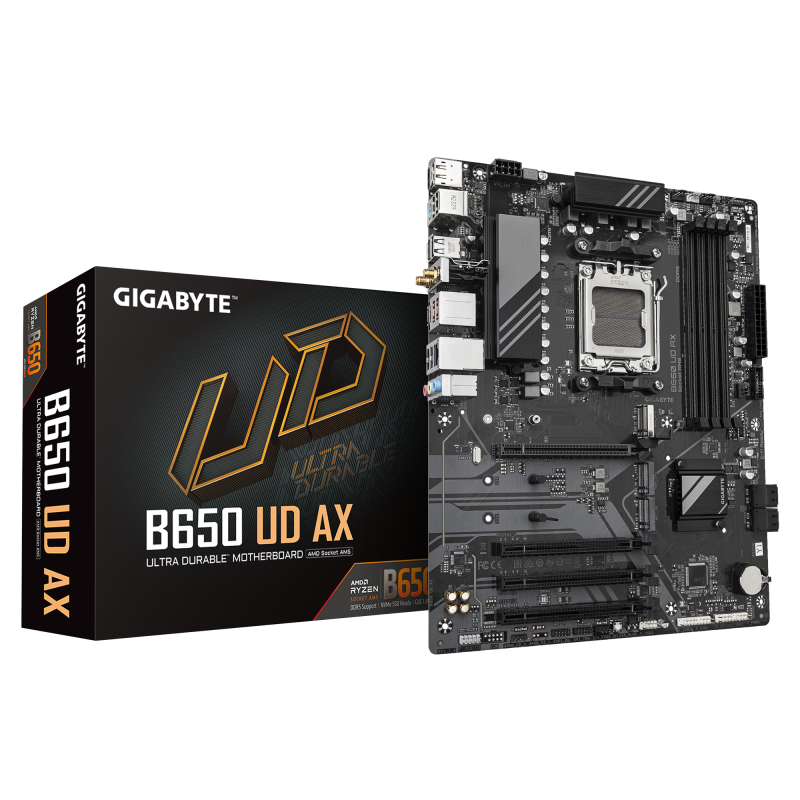

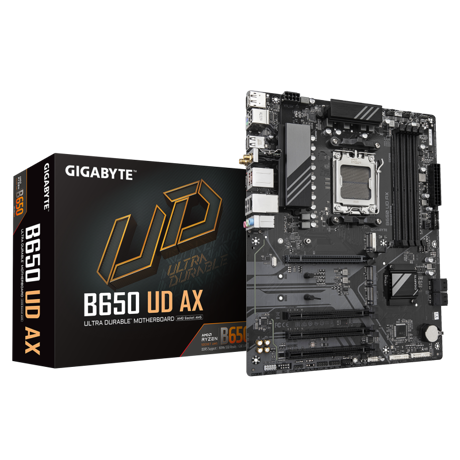

Placa de Baza GIGABYTE B650 UD AX AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 2x PCIE 3.0 x16 1x PCIE 3.0 x1, 3x M.2, 4x SATA 6GB/s, ATX

Placa de Baza GIGABYTE B650 UD AX AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 2x PCIE 3.0 x16 1x PCIE 3.0 x1, 3x M.2, 4x SATA 6GB/s, ATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Clear CMOS button

Yes

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Product colour

Brown

PCI Express x16 (Gen 3.x) slots

2

Number of M.2 (M) slots

3

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

PCI Express x16 (Gen 4.x) slots

1

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Motherboard form factor

ATX

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Maximum resolution

4096 x 2160 pixels

DirectX version

12.0

Parallel processing technology support

Not supported

HDCP

Yes

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

12V power connector

Yes

Number of chassis fan connectors

3

Number of EPS power connectors (8-pin)

1

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600 MHz

Supported memory clock speed (max)

7600 MHz

ECC сompatibility

Non-ECC

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

Ethernet interface type

Gigabit Ethernet

LAN controller

Realtek RTL8111H

WLAN controller model

Realtek RTL8851BE

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Weight

1.95 kg

Batteries included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Screws included

Yes

Package width

335 mm

Package depth

270 mm

Package height

80 mm

Package weight

2.2 kg

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

HDMI ports quantity

1

DisplayPort version

1.4

HDMI version

2.1

USB 2.0 ports quantity

6

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor manufacturer

AMD

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Microphone in

Yes

Headphone outputs

1

RAID levels

0, 1, 10

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Number of storage drives supported

7

Supported storage drive interfaces

M.2, SATA III

Warranty period

3 year(s)

Height

35 mm

Width

305 mm

Depth

244 mm

MB-Format

ATX

RAM-Slots

4

MB-Socket

AM5

PCI-Ex16

4

PCI

0

Serial-or-Paralel

No/No

USB3

4-8

PCI-Ex1

1

Onboard-CPU

No
