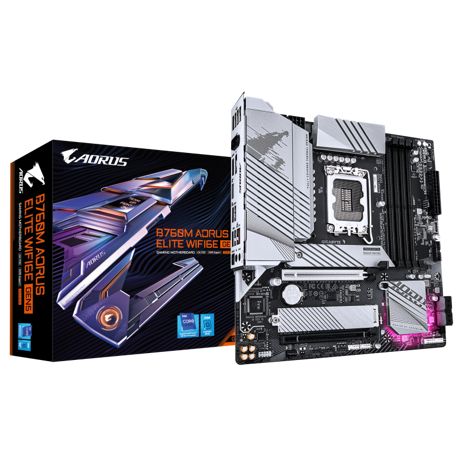

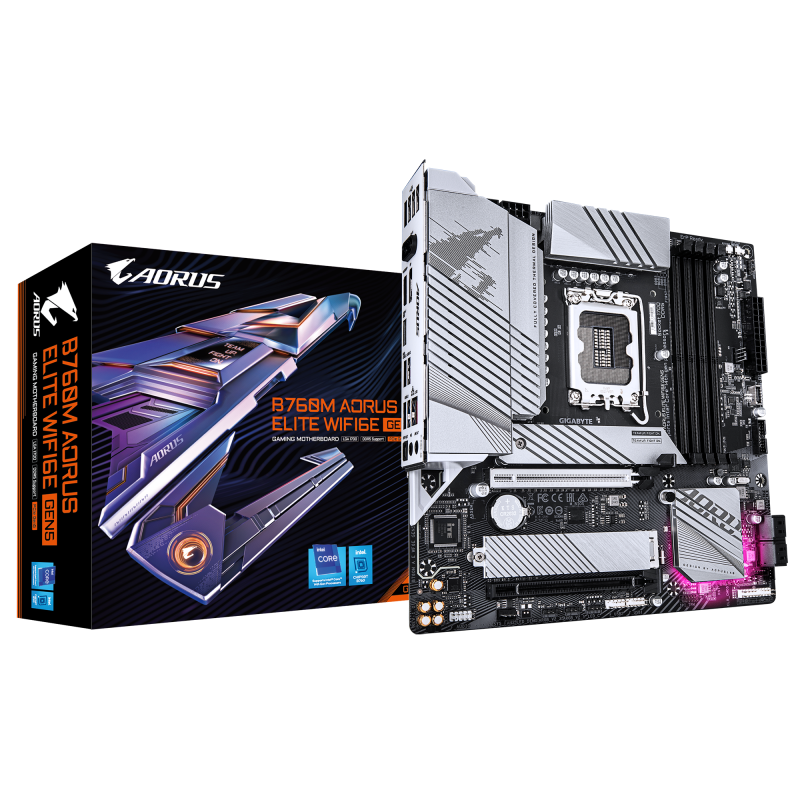

Placa de Baza GIGABYTE B760M AORUS ELITE WIFI6E GEN5 LGA1700, 4x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza GIGABYTE B760M AORUS ELITE WIFI6E GEN5 LGA1700, 4x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

Motherboard chipset

Intel B760

Audio Chip

Realtek ALC1220-VB

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Audio output channels

7.1 channels

Component for

PC

Motherboard form factor

micro ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2304 pixels

Thunderbolt headers

2

12V power connector

Yes

Number of CPU fan connectors

1

Peripheral (Molex) power connectors (4-pin)

1

Number of chassis fan connectors

3

Number of EPS power connectors (8-pin)

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

4

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Country of origin

China

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

5600 MHz

Supported memory clock speeds

4400,4800,5200,5600 MHz

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Memory channels

Dual-channel

Wi-FI

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

WLAN controller model

Intel Wi-Fi 6E AX210

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Weight

13.3 kg

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Package height

68 mm

Package width

270 mm

Package depth

268 mm

Package weight

1.75 kg

DisplayPort version

1.2

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 2.0 ports quantity

4

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

Headphone outputs

1

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

Digital audio optical out

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

S/PDIF out port

Yes

RAID support

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of storage drives supported

6

Warranty period

3 year(s)

Height

35 mm

Width

244 mm

Depth

244 mm

PCI-Ex1

0

RAM-Slots

4

MB-Format

micro-ATX

MB-Socket

LGA1851

PCI-Ex16

2

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
