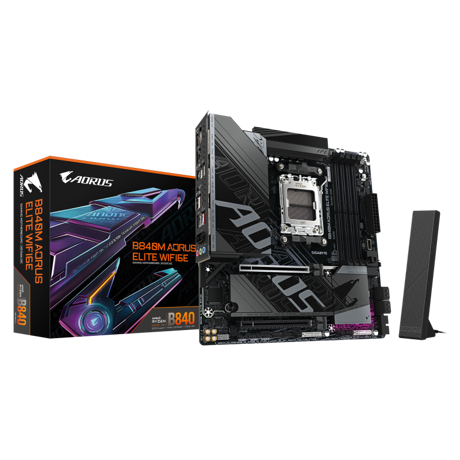

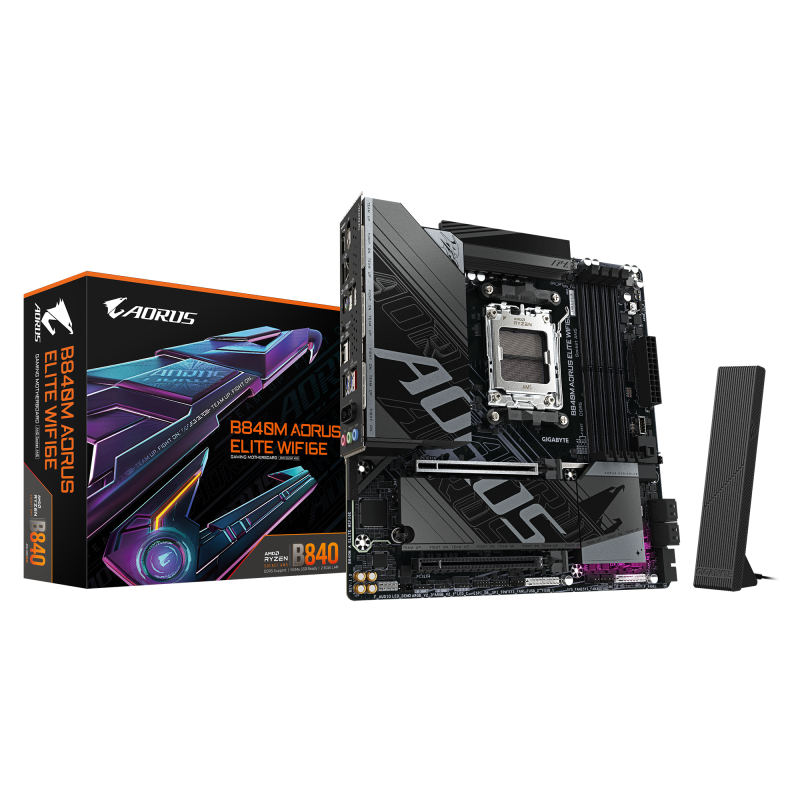

Placa de Baza GIGABYTE B840M AORUS ELITE WIFI6E AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza GIGABYTE B840M AORUS ELITE WIFI6E AM5, 4x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2580

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

PCI Express x16 (Gen 3.x) slots

1

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Audio Chip

Realtek ALC897

Motherboard chipset

AMD B840

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Power source type

ATX

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

12V power connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Number of EPS power connectors (8-pin)

1

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

8200 MHz

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz

ECC сompatibility

Non-ECC

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

WLAN controller model

Realtek RTL8852CE

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Weight

1.5 kg

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Package width

270 mm

Package depth

268 mm

Package weight

1.59 kg

Package height

68 mm

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

DisplayPort version

1.4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Microphone in

Yes

Headphone outputs

1

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

WiFi-AP antenna jack

2

Line-in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 10

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of storage drives supported

6

Warranty period

3 year(s)

Height

35 mm

Width

244 mm

Depth

244 mm

PCI-Ex1

0

RAM-Slots

4

MB-Format

micro-ATX

MB-Socket

AM5

PCI-Ex16

2

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
