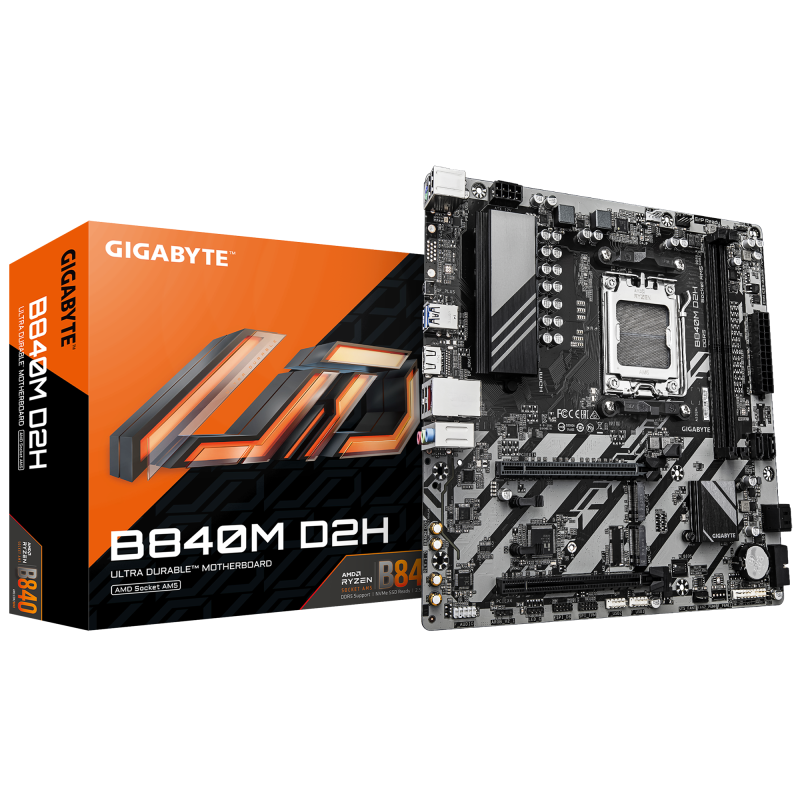

Placa de Baza GIGABYTE B840M D2H AM5, 2x DDR5, 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza GIGABYTE B840M D2H AM5, 2x DDR5, 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

2nd M.2 largest key size

2280

1st M.2 largest key size

2580

1st M.2 highest PCI Express generation

4.0

2nd M.2 highest PCI Express generation

3.0

PCI Express x16 (Gen 4.x) slots

1

Number of M.2 (M) slots

2

PCI Express x16 (Gen 3.x) slots

1

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Windows operating systems supported

Windows 10 x64, Windows 11 x64

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard chipset

AMD B840

Power source type

ATX

Maximum resolution

4096 x 2160 pixels

Parallel processing technology support

Not supported

DirectX version

12.0

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

RGB LED pin header

Yes

Number of RGB LED pin headers

3

Number of chassis fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

1

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

7600 MHz

Supported memory clock speeds

7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory per slot

64 GB

ECC сompatibility

Non-ECC

Memory slots type

DIMM

Unbuffered memory

Yes

Number of memory slots

2

Memory channels

Dual-channel

Maximum internal memory

128 GB

Ethernet LAN

Yes

Wi-FI

No

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Weight

940 g

Batteries included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Screws included

Yes

Package height

54 mm

Package width

265 mm

Package depth

265 mm

Package weight

10.3 kg

DVI-D ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

HDMI ports quantity

1

HDMI version

2.1

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Microphone in

Yes

Headphone outputs

1

PS/2 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

VGA (D-Sub) ports quantity

0

Supported storage drive types

HDD & SSD

RAID support

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Number of storage drives supported

6

Number of HDDs supported

4

RAID levels

0, 1, 10

Warranty period

3 year(s)

Height

35 mm

Width

244 mm

Depth

244 mm

MB-Socket

AM5

PCI-Ex16

2

PCI-Ex1

0

MB-Format

micro-ATX

RAM-Slots

2

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
