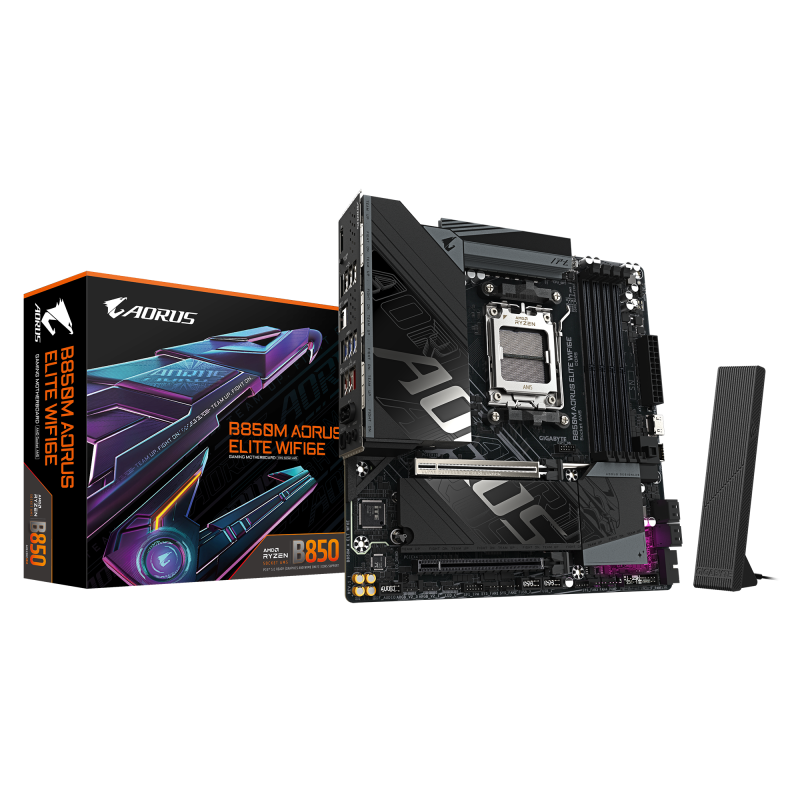

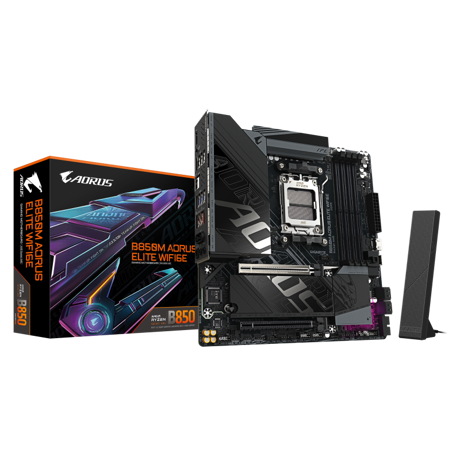

Placa de Baza GIGABYTE B850M AORUS ELITE WIFI6E AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza GIGABYTE B850M AORUS ELITE WIFI6E AM5, 4x DDR5, 1x DP 1x HDMI, 2x PCIE x16, 2x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Number of M.2 (M) slots

2

1st M.2 largest key size

25110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

Motherboard form factor

micro ATX

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Audio Chip

Realtek ALC1220-VB

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

3840 x 2160 pixels

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

Number of chassis fan connectors

4

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

Number of RGB LED pin headers

4

Number of EPS power connectors (8-pin)

1

USB 3.2 Gen 2x2 connectors

1

12V power connector

Yes

Products per shipping (inner) case

1 pc(s)

ECC сompatibility

Non-ECC

Supported memory clock speed (max)

8200 MHz

Supported memory clock speeds

8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz

Supported memory types

DDR5-SDRAM

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Number of memory slots

4

Memory slots type

DIMM

Unbuffered memory

Yes

Memory channels

Dual-channel

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Ethernet LAN

Yes

Wi-FI

Yes

WLAN controller model

Realtek RTL8852CE

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Weight

1.78 kg

Batteries included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Screws included

Yes

Package height

68 mm

Package width

270 mm

Package depth

268 mm

Package weight

19.7 kg

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

DisplayPort version

1.4

HDMI ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

HDMI version

1.4

Processor manufacturer

AMD

Processor socket

Socket AM5

Supported processor sockets

Socket AM5

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Headphone outputs

1

Digital audio optical out

1

VGA (D-Sub) ports quantity

0

WiFi-AP antenna jack

2

S/PDIF out port

Yes

Line-in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Supported storage drive types

HDD & SSD

RAID support

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Number of storage drives supported

6

RAID levels

0, 1, 10

Number of HDDs supported

4

Warranty period

3 year(s)

Height

35 mm

Width

244 mm

Depth

244 mm

MB-Format

ATX

PCI-Ex1

0

RAM-Slots

4

MB-Socket

AM5

PCI-Ex16

2

USB3

4-8

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
