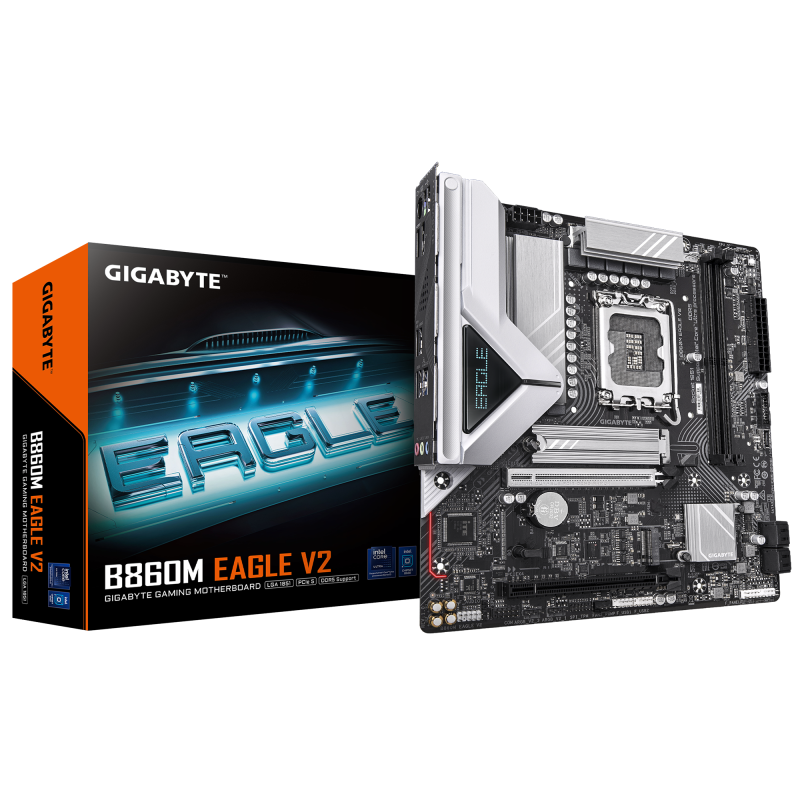

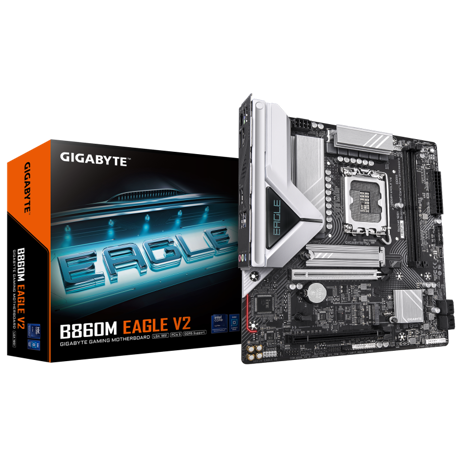

Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

1st M.2 highest PCI Express generation

5.0

2nd M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

Number of M.2 (M) slots

2

PCI Express x16 (Gen 5.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio Chip

Realtek ALC897

Audio output channels

7.1 channels

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel B860

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Motherboard form factor

micro ATX

Power source type

ATX

HDCP

Yes

Parallel processing technology support

Not supported

DirectX version

12.0

Maximum resolution

4096 x 2160 pixels

USB 2.0 connectors

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Front panel connector

Yes

Number of CPU fan connectors

2

TPM connector

Yes

Number of water pump connectors

2

RGB LED pin header

Yes

S/PDIF out connector

Yes

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Serial port headers

1

Number of EPS power connectors (8-pin)

1

Number of RGB LED pin headers

3

Products per shipping (inner) case

1 pc(s)

Supported memory clock speeds

9066,8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,5600 MHz

Supported memory clock speed (max)

9066 MHz

Memory slots type

DIMM

Unbuffered memory

Yes

Supported memory types

DDR5-SDRAM

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Memory channels

Dual-channel

Maximum internal memory

128 GB

Number of memory slots

2

Ethernet LAN

Yes

Wi-FI

No

Bluetooth

Nu

Ethernet interface type

2.5 Gigabit Ethernet

LAN controller

Realtek RTL8125

Weight

1.01 kg

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Batteries included

Yes

Screws included

Yes

Package width

265 mm

Package depth

265 mm

Package height

54 mm

Package weight

1.2 kg

DVI-D ports quantity

0

DisplayPorts quantity

1

DisplayPort version

2.1

HDMI ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 2.0 ports quantity

3

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

LGA 1851

Compatible processor series

Intel Core Ultra (Series 2)

Microphone in

Yes

Headphone outputs

1

PS/2 ports quantity

1

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

Supported storage drive types

HDD & SSD

RAID support

Yes

Number of HDDs supported

4

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Warranty period

3 year(s)

Format

Micro-ATX (mATX)

Numar sloturi memorie

2

Memorie maxima

N/A

Canale audio

N/A

RJ-45 LAN

N/A

Chipset audio integrat

Realtek

Soclu Procesor

Socket 1851

Tip Memorie

DDR5

Tip slot interfata grafica

PCIe 5.0 x16

USB Type C

N/A

Sloturi M.2

2

Model Chipset

B860

Thunderbolt

Nu

Gaming

Nu

HDMI

Da

Height

35 mm

Width

244 mm

Depth

225 mm

MB-Socket

LGA1851

PCI-Ex16

2

PCI-Ex1

0

MB-Format

micro-ATX

RAM-Slots

2

Onboard-CPU

No

USB3

4-8

PCI

0

Serial-or-Paralel

No/No
