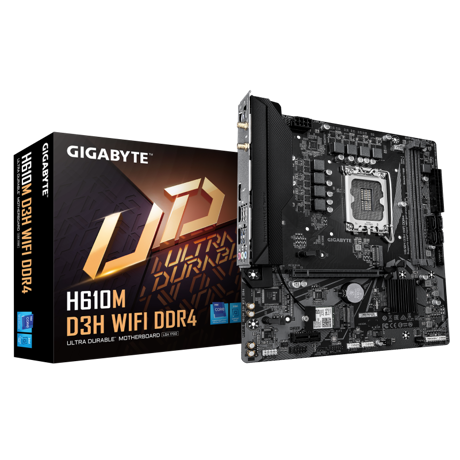

Placa de Baza GIGABYTE H610M D3H DDR4 LGA1700, 2x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1 2x M.2, 4x SATA 6GB/s, mATX

Placa de Baza GIGABYTE H610M D3H DDR4 LGA1700, 2x DDR4, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 3.0 x1 2x M.2, 4x SATA 6GB/s, mATX

Lithium weight per battery

0.07 g

Battery weight

3 g

Number of battery cells

1

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

ACPI version

5.0

Desktop Management Interface (DMI) version

2.7

System Management BIOS (SMBIOS) version

2.7

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Cooling type

Passive

Product colour

Dark brown

1st M.2 largest key size

2280

2nd M.2 largest key size

2280

1st M.2 highest PCI Express generation

3.0

2nd M.2 highest PCI Express generation

3.0

Number of M.2 (M) slots

2

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Audio output channels

7.1 channels

Audio Chip

Realtek ALC897

Component for

PC

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard form factor

micro ATX

Motherboard chipset

Intel H610

Motherboard chipset family

Intel

PC health monitoring

Fan, Temperature, Voltage, Water cooling

Power source type

ATX

Maximum resolution

4096 x 2304 pixels

DirectX version

12.0

Parallel processing technology support

Not supported

HDCP

Yes

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Number of SATA III connectors

4

Front panel audio connector

Yes

ATX Power connector (24-pin)

Yes

CPU fan connector

Yes

Number of chassis fan connectors

2

EPS power connector (8-pin)

Yes

Front panel connector

Yes

TPM connector

Yes

RGB LED pin header

Yes

Serial port headers

1

Number of EPS power connectors (8-pin)

1

Number of CPU fan connectors

1

Number of RGB LED pin headers

2

Products per shipping (inner) case

1 pc(s)

Maximum internal memory per slot

32 GB

Supported memory clock speed (max)

3200 MHz

Supported memory clock speeds

2133,2400,2666,2933,3000,3200 MHz

ECC сompatibility

ECC & Non-ECC

Memory slots type

DIMM

Unbuffered memory

Yes

Maximum internal memory

64 GB

Memory channels

Dual-channel

Number of memory slots

2

Supported memory types

DDR4-SDRAM

LAN controller

Realtek RTL8111H

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Ethernet interface type

Gigabit Ethernet

Wi-FI

Yes

Bluetooth

Yes

Bluetooth version

5.1

WLAN controller model

Intel Dual Band Wireless-AC 9560

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Weight

930 g

Batteries included

Yes

Antenna included

Yes

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Screws included

Yes

Package height

68 mm

Package weight

106 kg

Package width

270 mm

Package depth

268 mm

DVI-D ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

HDMI ports quantity

1

HDMI version

2.1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

Processor manufacturer

Intel

Processor socket

LGA 1700

Supported processor sockets

LGA 1700

PS/2 ports quantity

2

Ethernet LAN (RJ-45) ports

1

Microphone in

Yes

Headphone outputs

1

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

Line-in

Yes

Supported storage drive types

HDD & SSD

Number of HDDs supported

4

Supported storage drive interfaces

M.2, SATA III

Number of storage drives supported

6

Warranty period

3 year(s)

Height

35 mm

Width

244 mm

Depth

220 mm

MB-Socket

1700

MB-Format

micro-ATX

RAM-Slots

2

USB3

4-8

PCI-Ex1

1

PCI-Ex16

1

Onboard-CPU

No

PCI

0

Serial-or-Paralel

No/No
